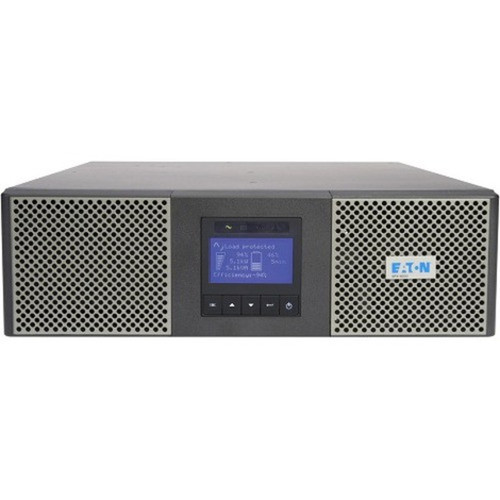

Eaton 9PX5K 5kVA Double Conversion Online UPS - Rack/Tower 3U - 110/220V Input - 200-240V Output - 3 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS provides complete isolation from input power anomalies, converting AC to DC and back to AC to deliver clean, regulated power. The 0 ns transfer time ensures no interruption during switchover to battery, critical for servers, networking gear, and storage systems.
Power specifications include a 5 kVA load capacity, input frequency range of 70 Hz, and output frequency stabilized at 60 Hz. Overload protection safeguards connected equipment, while the unit accepts 110V or 220V input and delivers output adjustable across five voltage settings from 200V to 240V AC.
Management capabilities are comprehensive with SNMP support via the included network card, plus serial and USB interfaces for local monitoring. The battery system uses maintenance-free sealed lead-acid chemistry with Eaton's ABM technology that increases battery life by up to 50% through optimized charging cycles.
Key Product Advantages
Zero Transfer Time Protection
Double conversion topology ensures continuous power with no break during transitions, protecting sensitive electronics from even momentary outages.
- Eliminates power gaps during utility failure
- Maintains uptime for critical infrastructure
- Prevents data corruption and hardware stress
Flexible Deployment Options
Rack/tower design with included 4-post rail kit and tower pedestals supports both data center and office environments.
- 3U rack-mountable for standard server cabinets
- Tower configuration for standalone placement
- Easy conversion between formats
Advanced Battery Management
ABM technology with three-stage charging optimizes battery health, extending service life while maintaining reliable backup capacity.
- Increases battery life by up to 50%
- Reduces total cost of ownership
- Maintenance-free sealed design
Deployment / Use Cases
The Eaton 9PX5K 5kVA UPS is engineered for environments requiring reliable power protection with flexible installation options. Its rack/tower dual capability makes it suitable for both centralized data center deployments and distributed IT closet installations.
In server room applications, the 3U rack-mountable design conserves valuable cabinet space while providing backup power for multiple servers, switches, and storage arrays. The zero transfer time and pure sine wave output ensure compatibility with sensitive equipment including virtualization hosts, database servers, and network infrastructure.
For edge computing and branch office locations, the tower configuration with included pedestals offers a standalone solution that protects local servers, networking equipment, and VoIP systems. The adjustable output voltage supports international deployments, while the SNMP management enables centralized monitoring across distributed sites.
The unit's runtime characteristics—3 minutes at full load and 11 minutes at half load—provide adequate time for graceful shutdowns or generator start-up, making it ideal for facilities with backup power systems. Optional extended battery modules can be added for applications requiring longer runtime.
Physical Profile
The Eaton 9PX5K features a compact 3U rack-height design measuring 5.10 inches (129.54 mm) in height, 17 inches (431.80 mm) in width, and 28 inches (711.20 mm) in depth. With an approximate weight of 105.82 pounds (48,000 grams), the unit is substantial yet manageable for standard rack installation.
The rack/tower form factor includes a 4-post rail kit for secure cabinet mounting and tower pedestals for standalone placement. The front panel houses an interactive LCD display that shows system status, load information, and battery metrics, while rear connections include NEMA L6-20R and L6-30R receptacles plus hardwiring capability for flexible power distribution.
- Width
- 17" (431.80 mm)
- Depth
- 28" (711.20 mm)
- Height
- 3U
- Weight
- 105.82 lb (48000 g)
What's in the Box
The package includes all necessary components for immediate deployment in either rack or tower configuration.
Highlights
- 5 kVA double conversion online UPS with zero transfer time
- Rack/tower convertible form factor with 3U rack height
- Input: 110V or 220V AC; Output: 200-240V AC adjustable
- 3-minute runtime at full load, 11 minutes at half load
- Includes NETWORK-M2 Gigabit network card for SNMP management
- Interactive LCD displays real-time load and battery status
- ABM technology extends battery life by up to 50%
- Maintenance-free sealed lead-acid battery
- Overload protection and pure sine wave output
- 3-year limited warranty with RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX5K |
| Brand Name | Eaton |
| Product Series | 9PX |
| Product Name | 9PX5K 5kVA UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-20R,NEMA L6-30R,Hardwired |
| Receptacle Detail | 2 x NEMA L6-20R,2 x NEMA L6-30R |
| Transfer Time | 0 ns |
| Overload Protection | Yes |
| Power Description | |
| Load Capacity (VA) | 5 kVA |
| Input Voltage | 110 V AC,220 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| Battery Information | |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Rack Height | 3U |
| Height | 5.10" (129.54 mm) |
| Width | 17" (431.80 mm) |
| Depth | 28" (711.20 mm) |
| Weight (Approximate) | 105.82 lb (48000 g) |
| Miscellaneous | |
| Package Contents | 9PX5K 5kVA UPS Network-MS Web/SNMP Card 4-Post Rail Kit User Manual Quick Start Guide Tower Pedestals Intelligent Power Software Suite CD RS-232 Serial Cable USB Cable Cable Gland for Hardwire Conection Phillips Head Screw Driver |
| Software Included | Eaton Intelligent Power Software |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of the Eaton 9PX5K UPS?
The Eaton 9PX5K provides 5 kVA (kilovolt-ampere) of power capacity. This double conversion online UPS can support critical IT equipment loads up to this rating while delivering clean, regulated power with zero transfer time between utility and battery modes.
How long will this UPS run on battery power?
At full load (5 kVA), the UPS provides approximately 3 minutes of runtime. At half load (2.5 kVA), runtime extends to approximately 11 minutes. These times allow for graceful shutdown of connected equipment or transition to backup power sources.
Can this UPS be installed in a server rack?
Yes, the Eaton 9PX5K features a rack/tower convertible design. It occupies 3U of rack space and includes a 4-post rail kit for secure cabinet mounting. The unit can also be deployed as a standalone tower using the included pedestals.
What input voltages does this UPS support?
The UPS accepts input voltages of either 110V AC or 220V AC, making it compatible with standard North American and international power systems. This flexibility supports deployment in diverse electrical environments without requiring external transformers.
How is the Eaton 9PX5K managed and monitored?
Management options include SNMP via the included NETWORK-M2 Gigabit network card, serial port connection, and USB interface. The interactive LCD on the front panel displays real-time status including load percentage, battery capacity, and output voltage.
What type of battery does this UPS use and what is its warranty?
The UPS utilizes maintenance-free sealed lead-acid batteries with Eaton's exclusive ABM (Advanced Battery Management) technology that extends battery life through optimized charging. The complete system is backed by a 3-year limited warranty from Eaton.
What power capacity is listed for this UPS?
The listed power specification is 5 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 110 V AC,220 V AC, which helps position the unit for the right load level and installation role.
