Eaton SRH452442W SmartRack 45U Enclosed Rack Cabinet - White - Steel - 3500 lb Dynamic Capacity - 41" Rack Depth
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

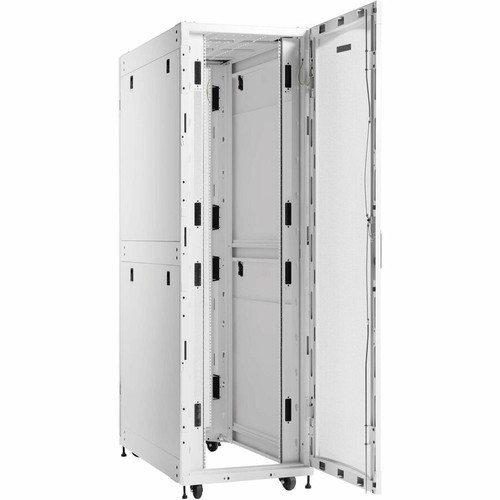

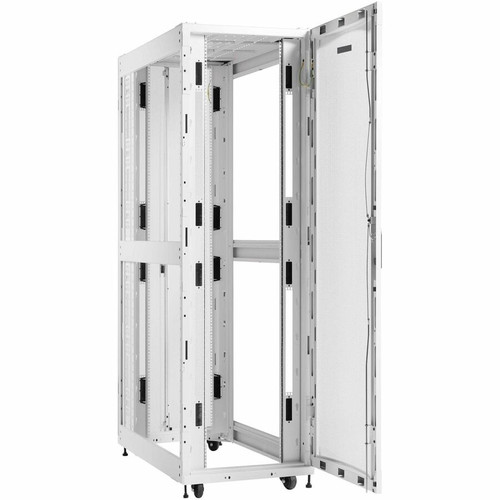

The SmartRack SRH452442W is a rack-mountable, enclosed cabinet with a 45U usable rack height and a 41-inch rack depth. The steel chassis provides robust support, while the powder-coated white finish offers a clean, professional look. The cabinet's overall dimensions are 84.75 inches high, 23.62 inches wide, and 44.16 inches deep, and it weighs approximately 457 pounds.
Key features include heavy-duty casters and leveling feet for both mobility and stability. The front door is reversible and perforated for airflow, and the rear door provides full access. Removable side panels with quick-release latches simplify cable management and equipment access. The cabinet is equipped with a leveling system, cable management provisions, and an adjustable-depth mounting rail system to accommodate various equipment sizes. It also includes lockable doors and tamper-resistant features for security.
The cabinet supports a dynamic rolling weight capacity of 3500 lb (1587.6 kg) and a static stationary capacity of 5000 lb (2268.0 kg). It is constructed from steel and finished with a durable powder coat. The package includes side panels, locks, keys, mounting hardware, and cage nuts.
Key Product Advantages
The Eaton SmartRack SRH452442W provides a secure, adaptable, and high-capacity enclosure for data center and IT environments. Its heavy-duty steel construction with a white powder-coated finish combines strength with a clean aesthetic that fits modern facilities. The cabinet's adjustable-depth mounting system and cable management features streamline equipment installation and maintenance, reducing deployment time and improving airflow.
Security is enhanced with lockable front and rear doors, removable side panels, and tamper-resistant design, protecting valuable equipment. The reversible front door allows flexible aisle placement, while casters and leveling feet ensure both mobility and stable positioning. With support for up to 5000 lb static load, this rack cabinet can accommodate current and future equipment needs, making it a long-term investment for your infrastructure.
Security and Access Control
- Lockable front and rear doors with keys
- Tamper-resistant and anti-theft features
- Quick-release side panels for easy access
Flexible Deployment
- Reversible front door for left or right opening
- Heavy-duty casters and leveling feet
- Adjustable-depth mounting rails
Deployment / Use Cases
The Eaton SmartRack SRH452442W is designed for use in data centers, server rooms, network closets, and edge computing environments. It is ideal for housing servers, network switches, patch panels, PDUs, and other standard 19-inch rack-mountable equipment. The 45U height and 41-inch depth accommodate most enterprise-grade hardware, while the enclosed cabinet design helps contain noise and manage airflow.
Common deployment scenarios include central server rooms where security and cable management are priorities, or distributed IT closets where a durable, lockable enclosure is required. The cabinet's adjustable-depth rail system supports equipment of varying depths, and the cable management features keep cabling organized and unobstructed. With its high weight capacity, it can be used for high-density configurations, including blade servers and large UPS units.
Server Room Consolidation
- Consolidate servers, switches, and storage in one secure enclosure
- Efficient cable routing with built-in management
- Adjustable rails to fit different server depths
Edge and Remote Sites
- Lockable doors protect against unauthorized access
- Durable steel construction withstands transport and vibration
- Casters allow repositioning during setup
Physical Profile
This 45U rack cabinet is constructed from heavy-duty steel with a white powder-coated finish. It features a 23.62-inch width, 84.75-inch height, and 44.16-inch overall depth, with a usable rack depth of 41 inches. The cabinet weighs 457 pounds and includes casters and leveling feet for easy placement and stable operation. The front door is reversible and perforated for ventilation, while the rear door and quick-release side panels provide full access for installation and maintenance.
- Width
- 23.62" (599.95 mm)
- Depth
- 44.16" (1121.66 mm)
- Height
- 84.75" (2152.65 mm)
- Weight
- 3500 lb (1587573.30 g)
What's in the Box
The package includes all necessary components for immediate setup:
Highlights
- 45U rack height with 41-inch usable rack depth
- Heavy-duty steel construction with white powder-coated finish
- Dynamic rolling weight capacity: 3500 lb; Static stationary capacity: 5000 lb
- Lockable front and rear doors with reversible front door
- Quick-release removable side panels for easy access
- Adjustable-depth mounting rails for flexible equipment installation
- Integrated cable management and leveling system
- Includes casters and leveling feet for mobility and stability
- RoHS compliant; backed by 5-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRH452442W |
| Brand Name | Eaton |
| Product Line | SmartRack |
| Product Model | SRH452442W |
| Product Name | SmartRack SRH452442W Rack Cabinet |
| Product Type | Rack Cabinet |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage | Server,IT Equipment,PDU,Patch Panel |
| Features | Heavy Duty,Powder Coated,Casters,Reversible Front Door,Rear Door,Removable Side Panel,Damage Resistant,Tamper Resistant,Anti-theft,Quick Release Side Panel,Perforated Door,Leveling System,Cable Management,Lockable,Adjustable Depth |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Color Family | White |
| Product Color | White |
| Product Material | Steel |
| Dynamic/Rolling Weight Capacity | 3500 lb (1587573.30 g) |
| Static/Stationary Weight Capacity | 5000 lb (2267961.85 g) |
| Height | 84.75" (2152.65 mm) |
| Width | 23.62" (599.95 mm) |
| Depth | 44.16" (1121.66 mm) |
| Rack Height | 45U |
| Rack Depth | 41" (1041.40 mm) |
| Weight (Approximate) | 457 lb (207291.71 g) |
| Miscellaneous | |
| Package Contents | SmartRack SRH452442W Rack Cabinet 4x Side panels 8x Side panel locks 2x Keys 60x Phillips-head mounting screws (M6 x 5/8 in.) 60x Nylon cup washers 60x Cage nuts Owner's manual |
| Assembly Required | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the rack height and depth of the Eaton SmartRack SRH452442W?
The Eaton SmartRack SRH452442W has a 45U rack height and a 41-inch (1041.40 mm) usable rack depth. The overall cabinet dimensions are 84.75 inches high, 23.62 inches wide, and 44.16 inches deep.
What is the weight capacity of this rack cabinet?
The SmartRack SRH452442W supports a dynamic rolling weight capacity of 3500 lb (1587.6 kg) and a static stationary weight capacity of 5000 lb (2268.0 kg), allowing it to accommodate heavy servers, PDUs, and other equipment.
Does the rack cabinet come with locks and keys?
Yes, the cabinet features lockable front and rear doors and includes two keys. It also has tamper-resistant and anti-theft design elements for enhanced security.
Is the front door reversible?
Yes, the front door is reversible, allowing you to choose the opening direction to suit your data center layout. The door is perforated for proper airflow.
What mounting hardware is included with the SRH452442W?
The package includes 60 Phillips-head mounting screws (M6 x 5/8 in.), 60 nylon cup washers, and 60 cage nuts to mount standard 19-inch equipment. Side panels, side panel locks, and keys are also included.
What type of warranty does this Eaton SmartRack cabinet have?
The SmartRack SRH452442W comes with a 5-year limited warranty from Eaton. It is also RoHS compliant.
