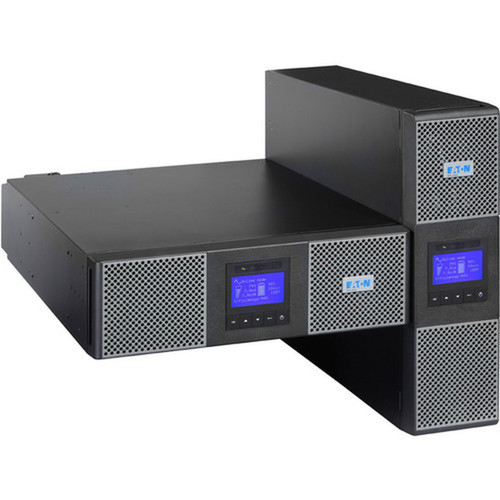

Eaton 9PX5KP1 5kVA Double Conversion Online UPS - Rack/Tower 6U - 3 Min Full Load Runtime - Multi-Voltage Output - SNMP/USB/Serial
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Eaton 9PX series UPS operates on double conversion online topology, delivering zero transfer time and continuous power conditioning. It accepts input voltages of 110 V AC and 220 V AC with a frequency range of 70 Hz, outputting stable power at multiple voltages including 120 V AC, 208 V AC, 200 V AC, 220 V AC, 230 V AC, and 240 V AC at 60 Hz.
The unit features comprehensive management interfaces including SNMP capability via the included network card, a serial port, and USB connectivity for local monitoring and configuration. Overload protection safeguards connected equipment, while the maintenance-free sealed lead-acid battery chemistry ensures reliable backup power without routine maintenance requirements.
Power Distribution
Includes a PowerPass distribution module with multiple receptacle types: 1 x NEMA L6-30R, 1 x NEMA L14-30R, and 6 x NEMA 5-20R outlets for flexible equipment connectivity.
- NEMA L6-30P plug type
- Mixed receptacle configuration
- Hardwire connection capability
Key Product Advantages
The Eaton 9PX5K UPS combines enterprise-grade power protection with deployment flexibility, making it suitable for data centers, server rooms, and network closets. Its double conversion technology provides complete isolation from utility power issues, while the multi-voltage capability supports diverse equipment requirements across different regions and applications.
Advanced Battery Management
Eaton's exclusive ABM technology with 3-stage charging increases internal battery life by up to 50% compared to conventional charging methods, extending service intervals and reducing total cost of ownership.
- 3-stage charging algorithm
- Battery life extension
- Reduced maintenance costs
Comprehensive Monitoring
The interactive LCD interface provides real-time status updates on load information, battery health, and system events. Remote management capabilities via SNMP, web interface, and Intelligent Power Software enable proactive power management.
- Real-time LCD display
- Remote SNMP management
- Intelligent Power Software suite
Deployment / Use Cases
The Eaton 9PX5K 5kVA UPS is engineered for environments requiring reliable power protection with flexible installation options. Its rack/tower convertible design makes it suitable for both dedicated server racks and standalone tower applications in offices or equipment rooms.
Typical deployments include protecting server infrastructure in small to medium data centers, securing network equipment in telecommunications closets, and providing backup power for critical workstations in industrial settings. The unit's multi-voltage output capability supports equipment with different power requirements, while the included distribution module organizes power delivery to multiple devices.
Data Center Protection
Ideal for server racks and networking equipment in data center environments where clean power and runtime for graceful shutdowns are essential. The 6U rack-mount form factor optimizes space utilization in standard server cabinets.
- Server rack compatibility
- Graceful shutdown support
- Space-efficient 6U design
Extended Runtime Applications
Optional extended battery modules can be added to increase runtime for longer power outages, making this UPS suitable for environments where extended backup is required or where generator transition times are longer.
- Expandable runtime
- Generator compatibility
- Mission-critical applications
Physical Profile
The Eaton 9PX5K UPS features a robust steel construction with dimensions of 10.20" (259.08 mm) height, 17" (431.80 mm) width, and 28" (711.20 mm) depth. The 6U rack height allows efficient use of vertical space in standard server racks, while the included tower pedestals provide stable standalone placement. Weighing 202.83 lb (92000 g), the unit requires proper handling equipment for installation. The design includes ventilation for optimal thermal management and accessible front-panel controls for easy operation.
- Width
- 17" (431.80 mm)
- Depth
- 28" (711.20 mm)
- Height
- 6U
- Weight
- 202.83 lb (92000 g)
What's in the Box
The package includes all necessary components for immediate deployment in either rack-mount or tower configuration.
Highlights
- 5 kVA double conversion online UPS with zero transfer time
- 3-minute runtime at full load, 11 minutes at half load
- Rack/tower convertible design with 6U rack height
- Multi-voltage input (110V/220V) and output (120V-240V)
- Includes PowerPass distribution module with multiple receptacle types
- SNMP manageable with included network card
- USB and serial connectivity for local management
- Maintenance-free sealed lead-acid battery
- Interactive LCD interface for real-time monitoring
- 3-year limited warranty with RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX5KP1 |
| Brand Name | Eaton |
| Product Series | 9PX |
| Product Name | 9PX5K 5kVA UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30R,NEMA L14-30R,NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L6-30R,1 x NEMA L14-30R,6 x NEMA 5-20R |
| Transfer Time | 0 ns |
| Overload Protection | Yes |
| Power Description | |
| Load Capacity (VA) | 5 kVA |
| Input Voltage | 110 V AC,220 V AC |
| Output Voltage | 120 V AC,208 V AC,200 V AC,220 V AC,230 V AC,240 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| Battery Information | |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| Height | 10.20" (259.08 mm) |
| Width | 17" (431.80 mm) |
| Depth | 28" (711.20 mm) |
| Weight (Approximate) | 202.83 lb (92000 g) |
| Miscellaneous | |
| Package Contents | 9PX5K 5kVA UPS 9PXPPDM1 PowerPass Distribution Module Network-MS Web/SNMP Card 4-Post Rail Kit User Manual Quick Start Guide Tower Pedestals Intelligent Power Software Suite CD RS-232 Serial Cable USB Cable Cable Gland for Hardwire Conection Phillips Head Screw Driver |
| Software Included | Eaton Intelligent Power Software |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
The Eaton 9PX5K provides 5 kVA (kilovolt-ampere) load capacity, which represents the maximum apparent power the UPS can deliver to connected equipment. This capacity is suitable for protecting server racks, network equipment, or multiple workstations in small to medium business environments.
How long will this UPS run on battery power?
At full load (5 kVA), the internal battery provides approximately 3 minutes of runtime. At half load (2.5 kVA), runtime extends to approximately 11 minutes. These runtimes allow sufficient time for safe system shutdowns or transition to backup power sources during utility outages.
Can this UPS be installed in a server rack?
Yes, the Eaton 9PX5K is designed for both rack-mount and tower deployment. It has a 6U rack height and includes a 4-post rail kit for standard server rack installation. The package also includes tower pedestals for standalone use if rack mounting isn't required.
What input voltages does this UPS support?
The UPS accepts input voltages of 110 V AC and 220 V AC with a frequency range of 70 Hz. This dual-voltage input capability allows deployment in regions with different utility power standards without requiring external transformers or voltage converters.
What management options are available for this UPS?
The unit includes multiple management interfaces: SNMP capability via the included Network-MS Web/SNMP card for remote monitoring, a serial port for traditional UPS management systems, and USB connectivity for local configuration. The Intelligent Power Software Suite provides comprehensive monitoring and control capabilities.
What is included in the package with this UPS?
The complete package includes the 9PX5K 5kVA UPS unit, 9PXPPDM1 PowerPass Distribution Module, Network-MS Web/SNMP Card, 4-Post Rail Kit, Tower Pedestals, User Manual, Quick Start Guide, Intelligent Power Software Suite CD, RS-232 Serial Cable, USB Cable, Cable Gland for Hardwire Connection, and Phillips Head Screw Driver for immediate deployment in either rack or tower configuration.
What power capacity is listed for this UPS?
The listed power specification is 5 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 110 V AC,220 V AC, which helps position the unit for the right load level and installation role.
