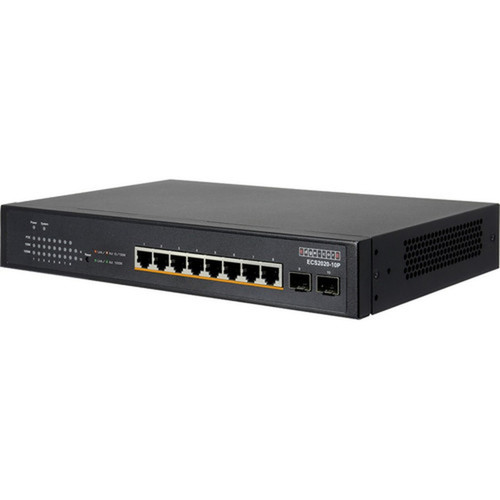

Edge-Core ECS2020-10P 8-Port Gigabit PoE+ Managed Switch - Layer 3 - 70W PoE Budget - 2 SFP Slots - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on Gigabit Ethernet technology, the ECS2020-10P supports auto-negotiation for 10/100/1000 Mbps speeds across all eight RJ-45 ports, ensuring compatibility with a wide range of network devices. The switch operates at Layer 3, offering IP routing, inter-VLAN routing, and advanced traffic management through support for key networking standards including IEEE 802.1Q for VLAN tagging, IEEE 802.3ad for link aggregation, and IEEE 802.1x for network access control.
Power efficiency is addressed through IEEE 802.3az Energy Efficient Ethernet, while the 80W total power consumption reflects the switch's operational load under typical PoE deployments. The dual SFP slots accept mini-GBIC transceivers for 1000Base-SX, LX, LHX, or ZX fiber connections, enabling high-speed uplinks to core switches or long-distance links to remote network segments.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ECS2020-10P combines managed switching features with robust PoE delivery in a compact 1U rack-mountable form factor, making it an ideal choice for growing networks that require both data and power over a single cable.
Advanced Switching Capabilities
Layer 3 support enables routing between VLANs, improved network segmentation, and better traffic prioritization for voice and video applications.
- Inter-VLAN routing
- QoS for traffic prioritization
- Link aggregation for bandwidth increase
PoE+ Ready Design
With 70W of PoE budget, the switch supports IEEE 802.3at PoE+ devices, delivering up to 30W per port to power demanding endpoints like PTZ cameras or dual-band access points.
- IEEE 802.3af/at compliant
- Simplifies cable management
- Reduces installation costs
Fiber Expansion Flexibility
Two SFP slots allow for fiber uplinks, providing options for connecting to fiber backbones, extending network reach beyond 100 meters, or isolating noisy electrical environments.
- Supports multi-mode and single-mode fiber
- Enables long-distance connections
- Provides electrical isolation
Deployment / Use Cases
This switch is well-suited for small to medium business environments, branch offices, or departmental networks where a combination of wired connectivity, PoE power, and managed features is required. Its Layer 3 capabilities make it appropriate for networks that need routing between subnets without relying on a core router.
Common deployment scenarios include powering and connecting VoIP phone systems, supporting wireless access points in office or retail spaces, and linking security camera systems with both data and power over a single cable run. The rack-mountable design integrates seamlessly into standard 19-inch server racks, making it a fit for IT closets, data rooms, or controlled environment installations.
Office Network Backbone
Serve as the main switch for a small office, providing connectivity to desktops, printers, and servers while powering VoIP phones and Wi-Fi access points.
Surveillance System Hub
Connect and power multiple IP cameras, with fiber uplinks for backhaul to a network video recorder (NVR) or central monitoring station.
Physical Profile
The switch features a compact 1U rack-mountable chassis measuring 1.73 inches in height, 11.57 inches in width, and 7.09 inches in depth, with a weight of approximately 4.41 pounds. This form factor allows for efficient use of rack space in standard 19-inch server cabinets, and the included rack mounting kit simplifies installation. The front-panel design provides clear LED indicators for port status, PoE activity, and system health, while the rear accommodates the power supply connection and grounding point.
- Width
- 11.57" (294 mm)
- Depth
- 7.09" (180 mm)
- Height
- 1.73" (44 mm)
- Weight
- 4.41 lb (2000 g)
What's in the Box
The package includes the Edge-Core ECS2020-10P Ethernet Switch and a rack mounting kit for secure installation in standard server racks.
Package contents include ECS2020-10P Ethernet Switch Rack Mounting Kit, ECS2020-10P Ethernet Switch. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 8 Gigabit Ethernet ports with PoE+ support for connected devices
- Layer 3 managed switching for advanced routing and VLAN management
- 70W total PoE budget to power VoIP phones, cameras, and access points
- Two SFP slots for fiber uplink expansion and long-distance connections
- Rack-mountable 1U form factor for standard 19-inch server cabinets
- Supports key networking standards including IEEE 802.1Q, 802.3ad, and 802.1x
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- 2-year limited warranty for reliable long-term operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Edge-Core Networks Corporation |
| Manufacturer Part Number | ECS2020-10P |
| Brand Name | Edge-Core |
| Product Series | ECS2020 |
| Product Model | ECS2020-10P |
| Product Name | ECS2020-10P Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-SX/LX/LHX/ZX |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3az,IEEE 802.1x,IEEE 802.1w,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.1p,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1D,IEEE 802.1s,IEEE 802.3af,IEEE 802.3at |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 70 W |
| Power Source | Power Supply |
| Power Consumption | 80 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 11.57" (294 mm) |
| Depth | 7.09" (180 mm) |
| Weight (Approximate) | 4.41 lb (2000 g) |
| Miscellaneous | |
| Package Contents | ECS2020-10P Ethernet Switch Rack Mounting Kit |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
How many devices can this switch power with PoE?
The Edge-Core ECS2020-10P has a total PoE budget of 70W, which can be distributed across its eight Gigabit Ethernet ports. This allows it to power multiple PoE devices simultaneously, such as VoIP phones, wireless access points, or IP cameras, with each port supporting up to 30W under the IEEE 802.3at PoE+ standard. The exact number of devices depends on their individual power requirements, but the switch is designed to handle typical office deployments efficiently.
What are the benefits of Layer 3 support in this switch?
Layer 3 support enables the switch to perform IP routing between different VLANs or subnets without requiring a separate router. This improves network performance by reducing traffic through a central router, allows for better traffic management with quality of service (QoS) policies, and supports advanced features like inter-VLAN routing and access control lists (ACLs). It makes the switch suitable for more complex network designs where segmentation and routing are needed at the edge.
Can I use fiber connections with this switch?
Yes, the switch includes two SFP (mini-GBIC) slots that support fiber optic connections. You can install SFP transceivers for 1000Base-SX, LX, LHX, or ZX standards, allowing for uplinks to fiber backbones, connections over longer distances beyond 100 meters, or links in electrically noisy environments. This flexibility makes it ideal for extending network reach or integrating with existing fiber infrastructure.
Is this switch rack-mountable?
Yes, the Edge-Core ECS2020-10P is designed for rack mounting with a standard 1U form factor. It measures 1.73 inches in height, 11.57 inches in width, and 7.09 inches in depth, and comes with a rack mounting kit for easy installation in 19-inch server racks. This makes it a compact and organized solution for IT closets, data rooms, or network cabinets.
What networking standards does this switch support?
The switch supports a comprehensive set of networking standards, including IEEE 802.3az for Energy Efficient Ethernet, IEEE 802.1x for network access control, IEEE 802.1Q for VLAN tagging, IEEE 802.3ad for link aggregation, and IEEE 802.3af/at for PoE. It also complies with IEEE 802.1w for rapid spanning tree, IEEE 802.1s for multiple spanning tree, and IEEE 802.3x for flow control, ensuring reliable and efficient operation in diverse network environments.
What is the power consumption of this switch?
The switch has a typical power consumption of 80W, which includes the power drawn by the switch itself plus the PoE power delivered to connected devices. This efficiency is enhanced by support for IEEE 802.3az, which reduces power usage during periods of low data activity. The internal power supply ensures stable operation, and the design is optimized for continuous use in business settings.
