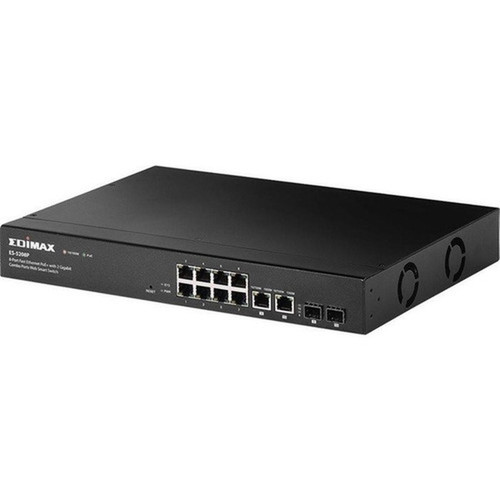

Edimax ES-5208P Web Smart Switch - 8 Fast Ethernet PoE+ Ports - 2 Gigabit Combo SFP Ports - Layer 2 Managed - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ES-5208P implements Gigabit Ethernet technology across its architecture, supporting both 1000Base-T for copper connections and 1000Base-X for fiber optic media through the SFP slots. The eight Fast Ethernet ports operate at 10/100 Mbps with IEEE 802.3at PoE+ compliance, delivering up to 30W per port to connected devices. The two Gigabit combo ports function as either RJ-45 copper ports or SFP fiber ports, providing flexibility for uplink connections to core switches or routers.
This switch operates at Layer 2 of the OSI model, supporting essential switching functions including VLAN segmentation, QoS prioritization, and port-based traffic management. The modular expansion capability through two dedicated SFP slots allows network administrators to choose between copper or fiber transceivers based on distance requirements and infrastructure compatibility.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ES-5208P combines PoE+ deployment convenience with management capabilities typically found in more expensive switches. The web-based interface simplifies configuration while maintaining essential control over network traffic and connected devices.
Power Over Ethernet Plus
Eight Fast Ethernet ports deliver IEEE 802.3at PoE+ power to connected devices, eliminating separate power supplies for endpoints like VoIP phones and wireless access points.
- 30W per port maximum
- Simplifies cable management
- Reduces installation costs
Dual Gigabit Combo Ports
Two ports support either RJ-45 copper connections or SFP fiber modules, providing flexibility for uplink connections based on distance and infrastructure requirements.
- 1000Base-T copper support
- 1000Base-X fiber support
- Media type flexibility
Layer 2 Management
Web-based management interface offers control over VLANs, QoS, port configuration, and monitoring without requiring command-line expertise.
- VLAN segmentation
- Traffic prioritization
- Port-based controls
Deployment / Use Cases
The ES-5208P serves as an ideal access layer switch for environments requiring both network connectivity and device powering. Its combination of PoE+ ports and management capabilities makes it suitable for deploying and controlling endpoints throughout a facility.
In retail environments, the switch can power VoIP phones at point-of-sale stations while connecting back-office computers and providing uplinks to the main network. For small office deployments, it consolidates connectivity for workstations, network printers, and wireless access points while offering management features for network segmentation and traffic control.
Small Business Network Core
Acts as the primary switch for offices with 10-20 connected devices, providing both connectivity and power to endpoints while offering management for network organization.
IP Surveillance Deployment
Powers multiple IP cameras while providing network connectivity, with management features for segregating camera traffic from other network operations.
Physical Profile
Designed for standard 19-inch rack mounting, the ES-5208P occupies 1U of vertical space with dimensions of 1.73" height, 9.06" width, and 12.99" depth. The compact form factor fits efficiently in network cabinets while providing adequate ventilation for continuous operation. The steel construction and 5.07 lb weight ensure durability in commercial environments, with front-panel LED indicators for port status and system monitoring.
- Width
- 9.06" (230 mm)
- Depth
- 12.99" (330 mm)
- Height
- 1.73" (44 mm)
- Weight
- 5.07 lb (2300 g)
Highlights
- 10 total network ports with 8 Fast Ethernet PoE+ ports
- 2 Gigabit combo SFP ports for flexible uplink connections
- Layer 2 web smart management with intuitive interface
- IEEE 802.3at PoE+ compliance delivering up to 30W per port
- Supports both twisted pair and optical fiber media types
- Rack-mountable 1U form factor for standard cabinet installation
- Gigabit Ethernet technology with 1000Base-T and 1000Base-X support
- Modular expansion with two dedicated SFP slots
- Web-based configuration without CLI expertise required
- Compact dimensions suitable for space-constrained installations
Specifications
| Specifications | |
|---|---|
| Manufacturer | Edimax Technology |
| Manufacturer Part Number | ES-5208P |
| Brand Name | Edimax |
| Product Model | ES-5208P |
| Product Name | 8-Port Fast Ethernet PoE+ with 2 Gigabit Combo Ports Web Smart Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 10 |
| Uplink Port | No |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 8 x Fast Ethernet Network,2 x Gigabit Ethernet Expansion Slot,2 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 9.06" (230 mm) |
| Depth | 12.99" (330 mm) |
| Weight (Approximate) | 5.07 lb (2300 g) |
FAQ
How many PoE+ ports does the ES-5208P switch have?
The Edimax ES-5208P includes eight Fast Ethernet ports with Power over Ethernet Plus capability. These ports comply with IEEE 802.3at standards and can deliver up to 30 watts per port to connected devices such as IP phones, wireless access points, and security cameras, simplifying deployment by eliminating separate power supplies.
What are the Gigabit combo ports used for on this switch?
The two Gigabit combo ports function as either RJ-45 copper connections or SFP fiber optic connections. This flexibility allows network administrators to choose the appropriate media type for uplink connections based on distance requirements and existing infrastructure. The ports support both 1000Base-T for copper cabling and 1000Base-X for fiber optic connections.
Is this switch manageable, and what management features does it offer?
Yes, the ES-5208P is a Layer 2 managed switch with web-based management capabilities. It offers features including VLAN configuration for network segmentation, Quality of Service (QoS) for traffic prioritization, port configuration controls, and monitoring functions. The web interface provides intuitive management without requiring command-line interface expertise.
Can this switch be mounted in a standard network rack?
The ES-5208P is designed for standard 19-inch rack mounting and occupies 1U of vertical space. With dimensions of 1.73" height, 9.06" width, and 12.99" depth, it fits efficiently in network cabinets. The switch includes appropriate mounting hardware and ventilation for continuous operation in rack environments.
What types of network cables does this switch support?
This switch supports both twisted pair copper cables and optical fiber connections. The eight Fast Ethernet PoE+ ports and copper functionality of the combo ports work with standard Category 5e or better twisted pair cables. The SFP slots in the combo ports accept fiber optic transceivers for 1000Base-X connections, providing flexibility for different cabling infrastructures.
What is the difference between Fast Ethernet and Gigabit ports on this switch?
The eight Fast Ethernet ports operate at 10/100 Mbps speeds and include PoE+ capability for powering connected devices. The two Gigabit combo ports operate at 1000 Mbps (1 Gbps) for higher-speed connections but do not provide PoE. This configuration balances cost-effective device connectivity with high-speed uplink capability for connecting to network core equipment.
