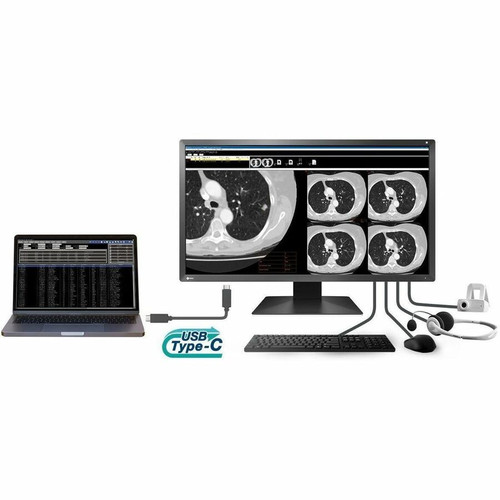

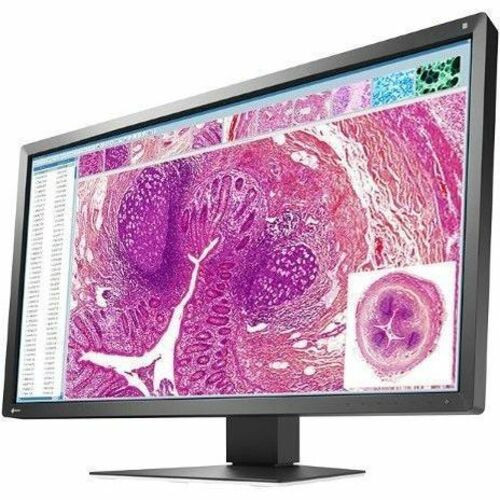

EIZO RadiForce MX317W-BK 31" Class 4K LED Monitor - 17:9 - Black - 30.5" Viewable - In-plane Switching (IPS) Technology - LED - 4096 x (MX317W-BK)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- RadiForce MX317W-BK Widescreen LED Monitor
- Stand
- USB Type-C (1.5 m)
- 2 x DisplayPort (3 m)
- HDMI (3 m)
- AC power cord (3 m)
- 2 x USB Type-A - USB Type-B cable (3 m)
- Utility Disk (RadiCS LE, PDF installation manual)
- Instructions for use
Number of Screens: 1
Screen Size Class: 31"
Viewable Screen Size: 30.5"
Screen Mode: 4K
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 25 ms
Response Time Details: 25 ms BTW (Black to White)
Aspect Ratio: 17:9
Pixel Pitch: 0.16740 mm x 0.16740 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Features: MultiScreen,Hybrid Gamma PXL,Calibration Sensor,sRGB,Ambient Light Sensor,Backlight Sensor,Integrated Front Sensor (IFS),Backlight Output Stabilization (BLOS),Digital Uniformity Equalizer (DUE),Hybrid Log Gamma (HLG),DICOM Preset Mode
Horizontal Frequency: 31 kHz to 134 kHz - USB Type C,31 kHz to 134 kHz - DisplayPort,31 kHz to 136 kHz - HDMI
Vertical Frequency: 59 Hz to 61 Hz - USB Type C,59 Hz to 61 Hz - DisplayPort,59 Hz to 61 Hz - HDMI
Active Display Area (H x V): 27" (685.70 mm) x 14.24" (361.60 mm)
Maximum Resolution: 4096 x 2160
Color Supported: 1.07 Billion Colors
Native Contrast Ratio: 1,800:1
Brightness: 270 cd/m²
Brightness (Peak): 550 cd/m²
Network (RJ-45): Yes
HDMI: Yes
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of DisplayPorts: 2
Number of USB Ports: 7
Number of USB 2.0 Type-A Ports: 3
Number of USB Type-B Ports: 2
Total Number of USB Type-C Ports: 2
USB Type-B: Yes
Ethernet Technology Details: 1 x RJ-45 Ethernet
Built-in Devices: USB Hub
Operating Power Consumption: 62 W
Maximum Power Consumption: 260 W
VESA Mount Compatible: Yes
Color Family: Black
Product Color: Black
Height: 15.79" (401 mm)
Width: 28.39" (721 mm)
Depth: 2.87" (73 mm)
Height with Stand: 22.42" (569.50 mm)
Width with Stand: 28.39" (721 mm)
Depth with Stand: 8.86" (225.10 mm)
Weight (Approximate): 18.08 lb (8200 g)
Weight with Stand (Approximate): 27.34 lb (12400 g)
Compressed Height with Stand: 18.48" (469.50 mm)
Extended Height with Stand: 22.42" (569.50 mm)
Package Contents:
Application/Usage: Workspace
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 5 Year
- 30.5" viewable screen size enhances clarity and depth for immersive playback of movies, games, and high-resolution media
- LED backlight technology enhances brightness and contrast while using less power for vivid visuals and energy-efficient performance
- 25 ms response time minimizes flicker and motion artifacts, maintaining consistent clarity during rapid scene changes
- 17:9 aspect ratio expands horizontal screen space for enhanced multitasking, cinematic visuals, and ultra-wide creative layouts
- Furnishes captivating visuals with 270 cd/m² brightness levels that deliver clear, vibrant images in both bright and dim settings
- MultiScreen feature enables responsive operation and efficient task handling
- 4096 x 2160 maximum resolution produces vibrant, high-definition visuals with optimized clarity for accurate viewing
- LED Monitor delivers stable long-term performance for both professional and personal use
- 4K screen mode offers four times Full HD resolution, revealing fine details for precise editing, design, and high-quality visuals
- VESA mount support enables secure, space-saving installation on walls or arms to suit your preferred viewing setup
[custom-specifications]
| Specifications | |
| Manufacturer | EIZO |
| Manufacturer Part Number | MX317W-BK |
| Manufacturer Website Address | http://www.eizo.com |
| Brand Name | EIZO |
| Product Line | RadiForce |
| Product Series | MX |
| Product Model | MX317W-BK |
| Product Name | RadiForce MX317W-BK Widescreen LED Monitor |
| Product Type | LED Monitor |
| Technical Information | |
| Number of Screens | 1 |
| Screen Size Class | 31" |
| Viewable Screen Size | 30.5" |
| Screen Mode | 4K |
| Panel Technology | In-plane Switching (IPS) Technology |
| Response Time | 25 ms |
| Response Time Details | 25 ms BTW (Black to White) |
| Aspect Ratio | 17:9 |
| Pixel Pitch | 0.16740 mm x 0.16740 mm |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | LED |
| Features | MultiScreen,Hybrid Gamma PXL,Calibration Sensor,sRGB,Ambient Light Sensor,Backlight Sensor,Integrated Front Sensor (IFS),Backlight Output Stabilization (BLOS),Digital Uniformity Equalizer (DUE),Hybrid Log Gamma (HLG),DICOM Preset Mode |
| Horizontal Frequency | 31 kHz to 134 kHz - USB Type C,31 kHz to 134 kHz - DisplayPort,31 kHz to 136 kHz - HDMI |
| Vertical Frequency | 59 Hz to 61 Hz - USB Type C,59 Hz to 61 Hz - DisplayPort,59 Hz to 61 Hz - HDMI |
| Active Display Area (H x V) | 27" (685.70 mm) x 14.24" (361.60 mm) |
| Video | |
| Maximum Resolution | 4096 x 2160 |
| Color Supported | 1.07 Billion Colors |
| Native Contrast Ratio | 1,800:1 |
| Brightness | 270 cd/m² |
| Brightness (Peak) | 550 cd/m² |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI | Yes |
| USB | Yes |
| DisplayPort | Yes |
| USB Type-C | Yes |
| Number of DisplayPorts | 2 |
| Number of USB Ports | 7 |
| Number of USB 2.0 Type-A Ports | 3 |
| Number of USB Type-B Ports | 2 |
| Total Number of USB Type-C Ports | 2 |
| USB Type-B | Yes |
| Ethernet Technology Details | 1 x RJ-45 Ethernet |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| Power Description | |
| Operating Power Consumption | 62 W |
| Maximum Power Consumption | 260 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| Color Family | Black |
| Product Color | Black |
| Height | 15.79" (401 mm) |
| Width | 28.39" (721 mm) |
| Depth | 2.87" (73 mm) |
| Height with Stand | 22.42" (569.50 mm) |
| Width with Stand | 28.39" (721 mm) |
| Depth with Stand | 8.86" (225.10 mm) |
| Weight (Approximate) | 18.08 lb (8200 g) |
| Weight with Stand (Approximate) | 27.34 lb (12400 g) |
| Compressed Height with Stand | 18.48" (469.50 mm) |
| Extended Height with Stand | 22.42" (569.50 mm) |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Workspace |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf2
Additional-pdf1
Manufacturer-Brochure
[/custom-user-manual]
