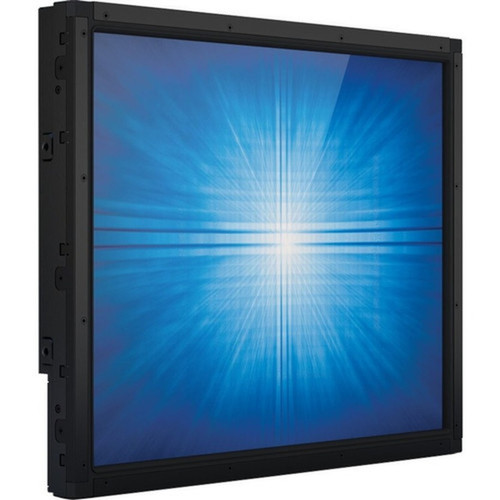

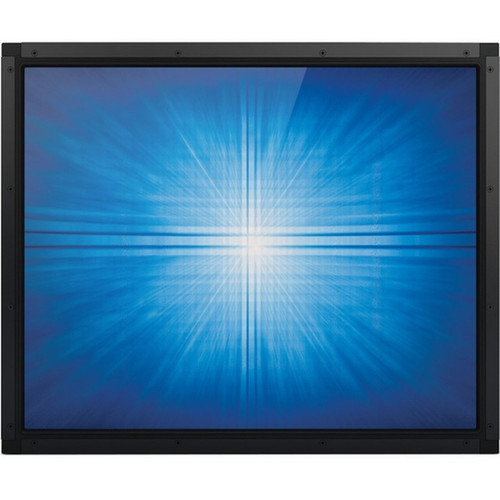

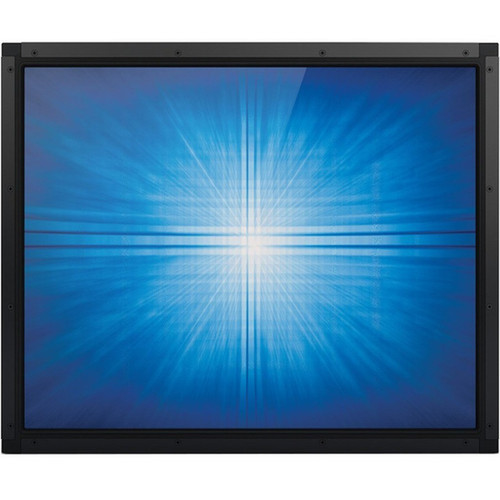

Elo E330817 19" Open-frame LCD Touchscreen Monitor - 5: 4 - 1280 x 1024 - Projected Capacitive
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 1990L 19" Open Frame Touchscreen (Rev B)
- HDMI cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- User Manual CD
- Quick Install Guide
- "L" (Side Mount) Brackets and w/Screws
- EEI Label
- Japan Class-B TM info sheet
Screen Size Class: 19"
Viewable Screen Size: 19"
Screen Mode: SXGA
Response Time: 5 ms
Aspect Ratio: 5:4
Mount Type: Front Mount,Rack-mountable
Backlight Technology: LED
Maximum Resolution: 1280 x 1024
Color Supported: 16.7 Million Colors
Contrast Ratio: 1,000:1
Brightness: 250 cd/m²
Touchscreen Type: Projected Capacitive
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
Product Color: Black
VESA Mount Compatible: Yes
Height: 13.50" (342.90 mm)
Width: 16.33" (414.78 mm)
Depth: 1.97" (50.04 mm)
Weight (Approximate): 10.14 lb (4599.43 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 3 Year
- The open-frame lcd touchscreen monitor is ideal for clubhouse gaming, entertainment, and self-service kiosks with reliable touchscreen performance
- SXGA touchscreen offers SXGA resolution up to 1280 x 1024 pixels for sharp, detailed visuals ideal for office and industrial use
- Projective Capacitive technology allows touch with bare fingers or thin gloves for flexibility in medical and industrial use
- LED backlight technology reduces power use and hazardous materials for eco-friendly performance
- Captivating visuals with about 250 cd/m² brightness levels for clear and vivid touchscreen performance
- The 1,000:1 contrast ratio delivers deep blacks and bright whites for cinematic touchscreen visuals
- 16.7 million colors supported for lifelike visuals and smooth touch-based creative workflows
- VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
- HDMI interface delivers premium audio and video quality with single-cable convenience for clutter-free connectivity
[custom-specifications]
| Specifications | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E330817 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Model | 1990L |
| Product Name | 1990L 19" Open Frame Touchscreen (Rev B) |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 19" |
| Viewable Screen Size | 19" |
| Screen Mode | SXGA |
| Response Time | 5 ms |
| Aspect Ratio | 5:4 |
| Mount Type | Front Mount,Rack-mountable |
| Backlight Technology | LED |
| Video | |
| Maximum Resolution | 1280 x 1024 |
| Color Supported | 16.7 Million Colors |
| Contrast Ratio | 1,000:1 |
| Brightness | 250 cd/m² |
| Touchscreen Information | |
| Touchscreen Type | Projected Capacitive |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Physical Characteristics | |
| Product Color | Black |
| VESA Mount Compatible | Yes |
| Height | 13.50" (342.90 mm) |
| Width | 16.33" (414.78 mm) |
| Depth | 1.97" (50.04 mm) |
| Weight (Approximate) | 10.14 lb (4599.43 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Elo Rack-Mount Bracket - 19" (482.60 mm) Screen Support |
| SKU | E579652 |
| Sale Price | $189.95 |
| Product | Elo IntelliTouch Stylus Pen |
| SKU | D82064-000 |
| Sale Price | $35.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
