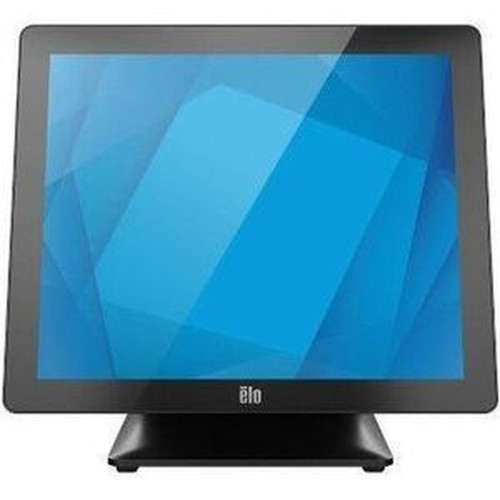

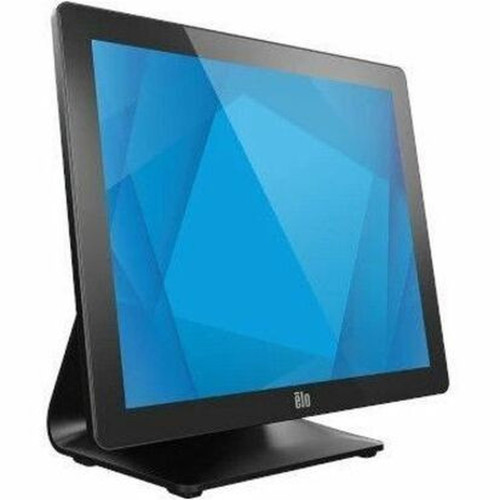

Elo E708953 I-Series 3 POS Terminal - Core i3 i3-1215UL 4. 40 GHz - 8 GB DDR5 SDRAM - 128 GB SSD M. 2/PCI Express - Windows 10 IoT Enterprise LTSC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of this POS terminal is the Intel Core i3 i3-1215UL processor, a capable CPU that delivers 4.40 GHz clock speeds for swift application response and multitasking. The system is equipped with 8 GB of DDR5 SDRAM, providing faster data transfer rates and improved power efficiency compared to previous memory generations, which supports running multiple POS software modules simultaneously.
Storage is handled by a 128 GB solid-state drive using the M.2/PCI Express interface, offering quick boot times and rapid access to transaction logs and inventory databases. The 17" display features an IPS LED panel with edge-to-edge glass design, anti-glare coating, and a 5:4 aspect ratio optimized for vertical POS applications. With a contrast ratio of 1,000:1 and wide 170°/160° viewing angles, the screen remains readable from various customer and employee positions.
Key Product Advantages
This POS terminal delivers several distinct advantages for business deployment. The projected capacitive touchscreen supports 10 simultaneous touch points, enabling intuitive gestures and multi-user interactions that streamline order entry and customer service workflows. Bluetooth 5.2 connectivity allows for wireless pairing with peripherals like handheld scanners or customer signature pads, reducing cable clutter at the point of sale.
Fanless Silent Operation
The completely fanless design eliminates moving parts that can fail and reduces acoustic noise, making this terminal ideal for environments where quiet operation is essential, such as high-end retail, libraries, or hotel lobbies.
Comprehensive Peripheral Support
With dedicated cash drawer, serial, and RJ-50 ports alongside multiple USB connections including powered USB and USB Type-C, this terminal seamlessly integrates with a wide range of POS peripherals without requiring additional adapters or hubs.
Ruggedized Design for Daily Use
Featuring an IP54 ingress protection rating, the terminal is protected against dust ingress and water splashes, ensuring reliability in environments where spills or airborne particles are common concerns.
Deployment / Use Cases
The Elo I-Series 3 POS Terminal is specifically designed for commercial environments requiring reliable, all-day operation with minimal maintenance. Its robust construction and comprehensive connectivity make it suitable for retail stores, restaurants, hospitality venues, and service counters where transaction speed and system uptime are critical.
In quick-service restaurant settings, the terminal can handle order entry, payment processing, and kitchen display functions while withstanding occasional spills or food particles thanks to its IP54 rating. For retail environments, the 17" display provides ample space for showing product catalogs, processing returns, and managing loyalty programs, with the touch interface enabling staff to quickly navigate complex transactions.
Hospitality Front Desk
Ideal for hotel check-in counters with its silent operation, integrated speakers for notification sounds, and ability to connect to room key encoders and payment terminals through the available ports.
Specialty Retail
Well-suited for boutique stores and specialty shops where the elegant edge-to-edge glass design complements store aesthetics while providing the technical capability to manage inventory, customer relationships, and complex sales transactions.
Localization and Operating System
This terminal comes pre-installed with Windows 10 IoT Enterprise LTSC (Long-Term Servicing Channel) in its 64-bit version. This specialized operating system is optimized for fixed-function devices like POS terminals, offering enhanced security, reduced update frequency for greater stability, and extended support lifecycle compared to consumer Windows editions.
The system is configured for North American English language support and regional settings appropriate for Canadian business environments. The operating system's compatibility with major POS software platforms ensures seamless integration with existing retail management systems, payment processors, and back-office applications commonly used in Canadian commerce.
Physical Profile
The all-in-one design integrates the display, computing components, and connectivity into a single unit measuring 13.30" horizontally by 10.64" vertically for the active display area. With a weight of 21.16 lb (9598.01 g), the terminal has substantial heft that provides stability on countertops while remaining manageable for installation and maintenance.
The black finish offers professional aesthetics that blend with various commercial decors, and the edge-to-edge glass design with anti-glare coating ensures the display remains readable under different lighting conditions. The form factor is optimized for countertop placement with all ports conveniently accessible for peripheral connections.
- Weight
- 21.16 lb (9598.01 g)
Highlights
- 17" IPS touchscreen display with edge-to-edge glass and anti-glare coating
- Intel Core i3 i3-1215UL processor running at 4.40 GHz for responsive performance
- 8 GB DDR5 SDRAM memory for efficient multitasking and application handling
- 128 GB SSD with M.2/PCI Express interface for fast storage access
- Windows 10 IoT Enterprise LTSC (64-bit) optimized for POS applications
- Fanless cooling design for completely silent operation
- IP54 rating for protection against dust and water splashes
- Comprehensive connectivity including cash drawer, serial, and multiple USB ports
- 10-point multi-touch projected capacitive touchscreen
- Bluetooth 5.2 and Gigabit Ethernet for wireless and wired networking
Specifications
| Specifications | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E708953 |
| Brand Name | Elo |
| Product Line | I-Series 3 |
| Product Name | I-Series 3 POS Terminal |
| Product Type | POS Terminal |
| Technical Information | |
| Cooling Fan | Fanless |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Form Factor | All-in-One |
| Features | Edge-to-Edge Glass Design,Anti-glare |
| Processor & Chipset | |
| Processor Type | Core i3 |
| Processor Model | i3-1215UL |
| Processor Speed | 4.40 GHz |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR5 SDRAM |
| Storage | |
| Solid State Drive Capacity | 128 GB |
| Solid State Drive Interface | M.2/PCI Express |
| Display & Graphics | |
| Screen Size | 17" |
| Active Display Size (Horizontal) | 13.30" (337.82 mm) |
| Active Display Size (Vertical) | 10.64" (270.26 mm) |
| Display Screen Type | LED |
| Panel Technology | In-plane Switching Technology (IPS) |
| Touchscreen | Yes |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touch Points | 10 |
| Graphics Controller Model | UHD Graphics |
| Color Supported | 16.7 Million Colors |
| Aspect Ratio | 5:4 |
| Contrast Ratio | 1,000:1 |
| Response Time | 25 ms |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| USB | Yes |
| Powered USB | Yes |
| USB Type-C | Yes |
| Network (RJ-45) | Yes |
| Cash Drawer Port | Yes |
| Serial Port | Yes |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Number of USB Type C Ports | 1 |
| Built-in Devices | |
| Speaker Power | 2 W |
| Number of Speakers | 2 |
| Software | |
| Operating System | Windows 10 IoT Enterprise LTSC (64-bit) |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 21.16 lb (9598.01 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP54 |
| Energy Star | Yes |
User Manual
FAQ
What operating system does this POS terminal use?
This terminal comes with Windows 10 IoT Enterprise LTSC (Long-Term Servicing Channel) in its 64-bit version. This specialized edition of Windows is designed for fixed-purpose devices like point-of-sale systems, offering enhanced security features, reduced update frequency for greater stability, and extended support cycles that are ideal for commercial environments where system reliability is critical.
Does this terminal support touchscreen input?
Yes, it features a 17" projected capacitive touchscreen that supports multi-touch functionality with up to 10 simultaneous touch points. This enables intuitive gestures like pinch-to-zoom and swipe navigation, making it easier for staff to interact with POS software, browse product catalogs, and process transactions quickly without relying solely on keyboard or mouse input.
What type of storage does this POS terminal have?
The terminal is equipped with a 128 GB solid-state drive using the M.2/PCI Express interface. This storage solution provides faster boot times, quicker application loading, and more responsive access to transaction databases compared to traditional hard drives. The SSD's lack of moving parts also increases reliability in commercial environments with constant use.
Can this terminal connect to cash drawers and other POS peripherals?
Absolutely. It includes dedicated cash drawer and serial ports specifically designed for POS peripherals, along with 4 USB 3.0 ports, 4 Micro USB 2.0 ports, and 1 USB Type-C port for connecting barcode scanners, receipt printers, customer displays, and payment terminals. The powered USB ports can provide electricity to devices that require it, reducing cable clutter.
What networking options are available on this terminal?
The terminal offers both wired and wireless networking capabilities. For wired connections, it features Gigabit Ethernet through an RJ-45 port for fast, reliable network access. For wireless connectivity, it includes Wireless LAN support and Bluetooth 5.2, allowing connection to Wi-Fi networks and pairing with wireless peripherals like handheld scanners or signature pads.
Is this terminal suitable for environments where spills might occur?
Yes, with its IP54 ingress protection rating, the terminal is designed to withstand common commercial environment challenges. The IP54 rating means it's protected against dust ingress that could harm internal components and against water splashes from any direction, making it suitable for restaurants, cafes, retail stores, and other locations where accidental spills are a concern.
What print, scan, copy, or multifunction capability is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
