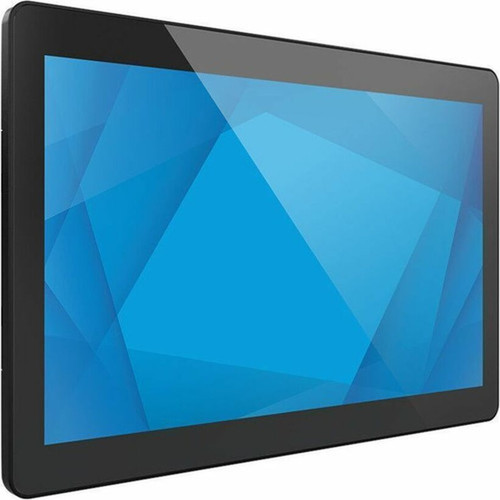

Elo E606120 I-Series 3 POS Terminal - Intel Core i3-1215UL 4. 40 GHz - 8 GB DDR5128 GB SSD M. 2 - Windows 10 IoT Enterprise LTSC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Cooling Fan: Fanless
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
Form Factor: All-in-One
Features: Edge-to-Edge Glass Design
Processor Type: Core i3
Processor Model: i3-1215UL
Processor Speed: 4.40 GHz
Standard Memory: 8 GB
Memory Technology: DDR5 SDRAM
Solid State Drive Capacity: 128 GB
Solid State Drive Interface: M.2
Screen Size: 15.6"
Active Display Size (Horizontal): 13.55" (344.17 mm)
Active Display Size (Vertical): 7.62" (193.55 mm)
Display Screen Type: LED
Panel Technology: In-plane Switching Technology (IPS)
Touchscreen: Yes
Touchscreen Technology: Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touch Points: 10
Graphics Controller Model: UHD Graphics
Color Supported: 16.2 Million Colors
Aspect Ratio: 16:9
Contrast Ratio: 1,000:1
Response Time: 25 ms
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 170°
Wireless LAN: Yes
Ethernet Technology: Gigabit Ethernet
USB: Yes
Powered USB: Yes
USB Type-C: Yes
Network (RJ-45): Yes
Serial Port: Yes
RJ-50: Yes
Number of Micro USB 2.0 Ports: 4
Number of USB 3.0 Ports: 4
Number of USB Type C Ports: 1
Speaker Power: 2 W
Number of Speakers: 2
Operating System: Windows 10 IoT Enterprise LTSC (64-bit)
Color Family: Black
Product Color: Black
Weight (Approximate): 6.82 lb (3093.50 g)
Ingress Protection (IP) Rating: IP54
Energy Star: Yes
- Touch panel gives your workforce ease
- Intel Core i3 4.40 GHz processor works smartly and responds swiftly to let you use multiple applications
- 15.6" screen size provides smooth visuals
- 128 GB SSD provides enough space for all your files
- With 8 GB DDR5 SDRAM memory
- The fanless cooling architecture promotes noise-free
[custom-specifications]
| Specifications | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E606120 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Line | I-Series 3 |
| Product Name | I-Series 3 POS Terminal |
| Product Type | POS Terminal |
| Technical Information | |
| Cooling Fan | Fanless |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Form Factor | All-in-One |
| Features | Edge-to-Edge Glass Design |
| Processor & Chipset | |
| Processor Type | Core i3 |
| Processor Model | i3-1215UL |
| Processor Speed | 4.40 GHz |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR5 SDRAM |
| Storage | |
| Solid State Drive Capacity | 128 GB |
| Solid State Drive Interface | M.2 |
| Display & Graphics | |
| Screen Size | 15.6" |
| Active Display Size (Horizontal) | 13.55" (344.17 mm) |
| Active Display Size (Vertical) | 7.62" (193.55 mm) |
| Display Screen Type | LED |
| Panel Technology | In-plane Switching Technology (IPS) |
| Touchscreen | Yes |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touch Points | 10 |
| Graphics Controller Model | UHD Graphics |
| Color Supported | 16.2 Million Colors |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 25 ms |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| USB | Yes |
| Powered USB | Yes |
| USB Type-C | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Number of USB Type C Ports | 1 |
| Built-in Devices | |
| Speaker Power | 2 W |
| Number of Speakers | 2 |
| Software | |
| Operating System | Windows 10 IoT Enterprise LTSC (64-bit) |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 6.82 lb (3093.50 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP54 |
| Energy Star | Yes |
