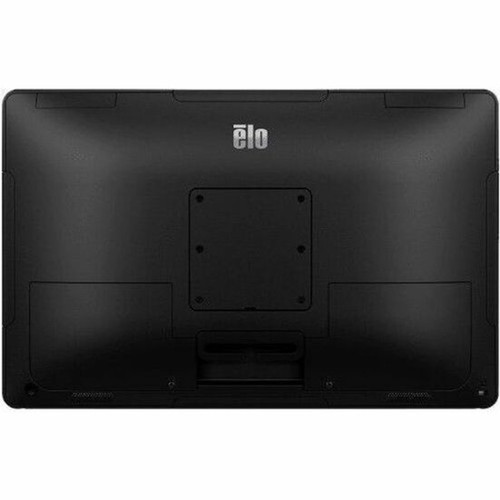

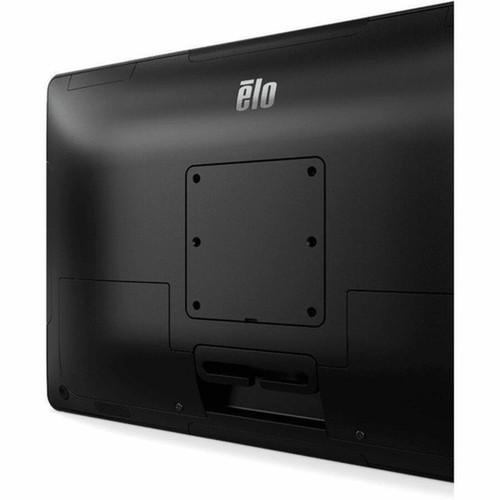

Elo E606511 I-Series 3 POS Terminal - Core i5 i5-1245UL 4. 40 GHz - 8 GB DDR5 - 128 GB SSD - 15" Touchscreen - Windows 10 IoT Enterprise
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the I-Series 3 terminal is the Intel Core i5-1245UL processor, a 12th generation chip with performance cores reaching 4.40 GHz. This CPU architecture provides the processing headroom for simultaneous POS software, payment processing, and peripheral management without lag or interruption.
The system's 8 GB of DDR5 SDRAM delivers substantial bandwidth for multitasking scenarios, while the 128 GB M.2 SSD offers rapid boot times and application loading. Graphics are handled by Intel Xe integrated graphics, supporting the 15-inch display's Full HD resolution and 16.2 million color palette.
This section brings together practical product details such as Cooling Fan, Bluetooth, Bluetooth Standard, Processor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The I-Series 3 terminal distinguishes itself through several design and feature advantages that enhance reliability and user experience in commercial deployments.
Silent Fanless Operation
The completely fanless cooling system eliminates moving parts that can fail in dusty environments while maintaining whisper-quiet operation suitable for customer-facing areas.
- No fan noise in retail settings
- Reduced maintenance requirements
- Improved dust and debris resistance
Robust Touch Interface
The projected capacitive touchscreen supports 10 simultaneous touch points with excellent accuracy, enabling fast transaction processing and intuitive software interaction.
- Edge-to-edge glass design
- High touch accuracy
- Durable surface for heavy use
Comprehensive Connectivity
With Gigabit Ethernet, Wi-Fi, Bluetooth 5.2, and an extensive array of USB ports including powered USB for peripherals, the terminal integrates seamlessly with existing POS ecosystems.
- Legacy serial port support
- Powered USB for barcode scanners
- Dual-band wireless connectivity
Deployment / Use Cases
The Elo I-Series 3 terminal is engineered for versatile deployment across multiple commercial environments where reliability, performance, and intuitive operation are essential.
In retail settings, the terminal serves as a complete point-of-sale station, handling transaction processing, inventory lookups, and customer loyalty programs. The responsive touch interface accelerates checkout processes while the compact all-in-one design conserves valuable counter space.
For hospitality applications, the system manages table service, kitchen order routing, and payment processing with equal efficiency. The IP54 rating provides protection against spills and dust in restaurant environments, while the fanless design ensures silent operation in dining areas.
Quick-Service Restaurant POS
Ideal for fast-paced food service environments where speed and reliability are critical. The terminal processes orders rapidly while withstanding the rigors of kitchen proximity.
Retail Checkout Station
Functions as a complete checkout solution with integrated payment processing, receipt printing, and customer display capabilities in a single compact unit.
Localization and Operating System
The terminal ships with Windows 10 IoT Enterprise LTSC 2021 pre-installed, providing a stable, long-term support platform for commercial applications. This specialized Windows edition offers enhanced security features, reduced update frequency, and extended support lifecycle ideal for fixed-function devices.
While the operating system interface follows standard Windows conventions, the terminal's hardware configuration supports global deployment with its comprehensive connectivity options and universal power compatibility. The black color scheme and neutral design language suit diverse commercial aesthetics.
This section brings together practical product details such as Cooling Fan, Bluetooth, Bluetooth Standard, Processor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The all-in-one design integrates the display, computing components, and connectivity into a single compact unit measuring approximately 13.55 inches horizontally and 7.62 inches vertically for the active display area. The complete terminal weighs 6.82 pounds (3.09 kg), making it manageable for installation while maintaining stability on countertops.
The black finish presents a professional appearance that blends with various commercial decors. The IP54 rating indicates protection against dust ingress and water splashes from any direction, enhancing durability in challenging environments. Energy Star certification confirms efficient power consumption during operation.
- Weight
- 6.82 lb (3093.50 g)
Highlights
- Intel Core i5-1245UL processor with 4.40 GHz maximum frequency
- 8 GB of DDR5 SDRAM for responsive multitasking performance
- 128 GB M.2 SSD with PCI Express interface for fast storage access
- 15-inch Full HD IPS touchscreen with 10-point multi-touch capability
- Windows 10 IoT Enterprise LTSC 2021 pre-installed for commercial stability
- Fanless cooling design for silent operation in customer-facing areas
- Comprehensive connectivity including Gigabit Ethernet, Wi-Fi, and Bluetooth 5.2
- IP54 rated for protection against dust and water splashes
- Multiple USB ports including powered USB for peripheral devices
- Energy Star certified for efficient power consumption
Specifications
| Specifications | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E606511 |
| Brand Name | Elo |
| Product Line | I-Series 3 |
| Product Name | I-Series 3 POS Terminal |
| Product Type | POS Terminal |
| Technical Information | |
| Cooling Fan | Fanless |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Form Factor | All-in-One |
| Features | Edge-to-Edge Glass Design |
| Processor & Chipset | |
| Processor Type | Core i5 |
| Processor Model | i5-1245UL |
| Processor Speed | 4.40 GHz |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR5 SDRAM |
| Storage | |
| Solid State Drive Capacity | 128 GB |
| Solid State Drive Interface | M.2/PCI Express |
| Display & Graphics | |
| Screen Size | 15" |
| Active Display Size (Horizontal) | 13.55" (344.17 mm) |
| Active Display Size (Vertical) | 7.62" (193.55 mm) |
| Display Screen Type | LED |
| Screen Mode | Full HD |
| Panel Technology | In-plane Switching Technology (IPS) |
| Touchscreen | Yes |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touch Points | 10 |
| Graphics Controller Model | Xe Graphics |
| Color Supported | 16.2 Million Colors |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 25 ms |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| USB | Yes |
| Powered USB | Yes |
| USB Type-C | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Number of USB Type C Ports | 1 |
| Built-in Devices | |
| Speaker Power | 2 W |
| Number of Speakers | 2 |
| Software | |
| Operating System | Windows 10 IoT Enterprise LTSC 2021 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 6.82 lb (3093.50 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP54 |
| Energy Star | Yes |
User Manual
FAQ
What operating system comes pre-installed on this POS terminal?
The Elo I-Series 3 terminal includes Windows 10 IoT Enterprise LTSC 2021 pre-installed. This specialized edition of Windows provides long-term servicing with security updates and stability features optimized for commercial fixed-function devices like point-of-sale systems, reducing the frequency of major updates that could disrupt business operations.
Does this terminal support touchscreen interaction?
Yes, the terminal features a 15-inch projected capacitive touchscreen that supports 10-point multi-touch input. The edge-to-edge glass design provides a smooth surface for intuitive interaction with POS software, while the IPS panel technology ensures consistent touch response across the entire display with wide 170-degree viewing angles.
What type of storage does this POS terminal use?
The terminal utilizes a 128 GB solid-state drive with an M.2 form factor and PCI Express interface. This SSD configuration delivers faster boot times, quicker application loading, and more responsive system performance compared to traditional hard drives, while the M.2 design saves space within the compact all-in-one enclosure.
How many USB ports are available on this terminal?
The terminal provides extensive USB connectivity with four USB 3.0 ports, four Micro USB 2.0 ports, and one USB Type-C port. Additionally, it includes powered USB capability to support peripherals like barcode scanners and receipt printers without requiring separate power adapters, simplifying cable management at the point of sale.
Is this terminal suitable for restaurant environments?
Yes, the terminal's IP54 rating makes it well-suited for restaurant and hospitality environments. This ingress protection rating indicates resistance to dust ingress and water splashes from any direction, providing durability in areas where spills or cleaning procedures might occur. The fanless design also prevents food particles from entering cooling vents.
What networking options does this terminal support?
The terminal offers comprehensive networking capabilities including Gigabit Ethernet for wired connections, integrated wireless LAN for Wi-Fi connectivity, and Bluetooth 5.2 for peripheral devices. This combination ensures flexible deployment options whether you need reliable wired connections for payment processing or wireless connectivity for mobile POS applications.
What print, scan, copy, or multifunction capability is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
