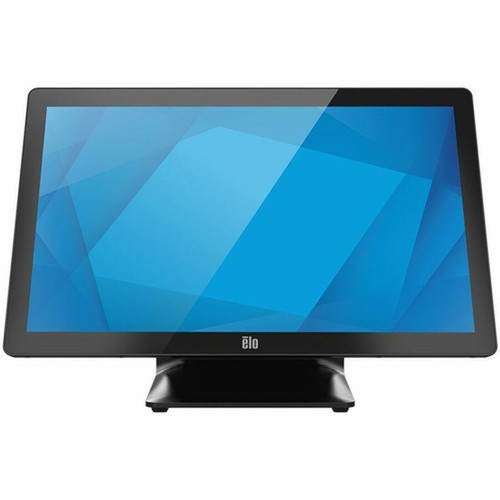

Elo E155309 I-Series 3 POS Terminal - Core i5 i5-1245UL 4. 40 GHz - 8 GB DDR5 SDRAM - 256 GB SSD M. 2 - Windows 10 - 21. 5" Touchscreen
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This POS terminal features a 21.5" Full HD LED display with In-plane Switching (IPS) panel technology, delivering 178° viewing angles and 16.7 million colors for clear visibility from multiple positions. The projected capacitive touchscreen supports 10 simultaneous touch points, enabling fast item selection, signature capture, and menu navigation with gloved or bare hands.
Connectivity options include Gigabit Ethernet for reliable wired networking, Wireless LAN for flexible placement, and Bluetooth 5.2 for peripheral pairing. The comprehensive port selection includes four USB 3.0 ports, four Micro USB 2.0 ports, and one USB Type-C port for connecting scanners, printers, payment terminals, and other POS accessories. Specialized interfaces include a cash drawer port, serial port, and RJ-50 connector for legacy peripherals.
This section brings together practical product details such as Cooling Fan, Bluetooth, Bluetooth Standard, Processor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Elo I-Series 3 POS Terminal combines durability with modern computing architecture to create a reliable foundation for business operations. The fanless design eliminates moving parts that can fail in high-use environments while maintaining silent operation in customer-facing areas. IP54 rating provides protection against dust ingress and water splashes, making the terminal suitable for food service, retail, and hospitality applications where spills and debris are common.
Enhanced Display Experience
The edge-to-edge glass design with anti-glare coating reduces reflections and fingerprints while providing a modern aesthetic. Integrated 2W speakers deliver clear audio for transaction confirmation tones and multimedia content.
- 21.5" Full HD IPS display
- 10-point projected capacitive touch
- Wide 178° viewing angles
Robust Connectivity Suite
Multiple USB configurations support current and legacy peripherals simultaneously. Powered USB ports provide direct power to devices like barcode scanners without separate adapters, reducing cable clutter.
- Gigabit Ethernet for stable connections
- Bluetooth 5.2 for wireless peripherals
- Cash drawer and serial port support
Deployment / Use Cases
This POS terminal excels in environments requiring reliable transaction processing with intuitive customer interaction. Retail stores benefit from the responsive touch interface for quick item lookup, price verification, and inventory management during peak shopping periods. The compact all-in-one design saves valuable counter space while providing all necessary computing and display functions in a single unit.
Hospitality venues including restaurants, hotels, and entertainment facilities can leverage the IP54-rated construction to withstand kitchen environments, bar areas, and outdoor patios where moisture and particulates are present. The Windows 10 operating system ensures compatibility with industry-standard POS software, payment processing applications, and business management tools commonly used across service industries.
Quick-Service Restaurant Implementation
Deploy at order counters for fast menu navigation, customization options, and payment processing. The fanless design maintains quiet operation in customer-facing areas while the touchscreen enables efficient order entry during rush periods.
Retail Checkout Configuration
Utilize as a primary checkout station with connected barcode scanners, receipt printers, and cash drawers. The 21.5" display provides clear transaction details for both cashiers and customers, reducing errors and improving service speed.
Localization and Operating System
This terminal ships with Windows 10 pre-installed, providing a familiar interface for operators and compatibility with the majority of POS software applications available in the market. The operating system supports multiple user accounts, security features, and management tools appropriate for business environments where different staff members access the system throughout operating hours.
The black color scheme and professional design integrate seamlessly into various retail and hospitality environments without dominating visual space. While specific keyboard localization details aren't specified in product details, the Windows 10 platform supports multiple language and regional settings that can be configured during setup based on deployment requirements.
Physical Profile
The all-in-one design integrates computing components directly behind the 21.5" display, creating a compact footprint that maximizes usable counter space. Weighing 13.50 lb (6123.50 g), the terminal remains stable during touch interactions while remaining manageable for installation and repositioning. The black finish resists visible wear in high-traffic environments, maintaining a professional appearance through extended use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 13.50 lb (6123.50 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 13.50 lb (6123.50 g)
Highlights
- Intel Core i5 i5-1245UL processor with 4.40 GHz speed and 12 MB cache
- 8 GB DDR5 SDRAM for responsive multitasking across POS applications
- 256 GB M.2 SSD provides fast boot times and reliable storage
- 21.5" Full HD IPS touchscreen with 10-point multi-touch capability
- Fanless cooling design ensures silent operation in customer areas
- IP54 rating protects against dust and water splashes
- Comprehensive connectivity with Gigabit Ethernet, Wireless LAN, and Bluetooth 5.2
- Multiple USB ports including USB 3.0, Micro USB 2.0, and USB Type-C
- Specialized ports for cash drawer, serial devices, and RJ-50 connections
- Windows 10 operating system for software compatibility and security
Specifications
| Specifications | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E155309 |
| Brand Name | Elo |
| Product Line | I-Series 3 |
| Product Name | I-Series 3 POS Terminal |
| Product Type | POS Terminal |
| Technical Information | |
| Cooling Fan | Fanless |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Form Factor | All-in-One |
| Features | Edge-to-Edge Glass Design,Anti-glare |
| Processor & Chipset | |
| Processor Type | Core i5 |
| Processor Model | i5-1245UL |
| Processor Speed | 4.40 GHz |
| Processor Cache | 12 MB |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR5 SDRAM |
| Storage | |
| Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | M.2 |
| Display & Graphics | |
| Screen Size | 21.5" |
| Active Display Size (Horizontal) | 18.74" (476 mm) |
| Active Display Size (Vertical) | 10.54" (267.72 mm) |
| Display Screen Type | LED |
| Screen Mode | Full HD |
| Panel Technology | In-plane Switching Technology (IPS) |
| Touchscreen | Yes |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touch Points | 10 |
| Graphics Controller Model | Xe Graphics |
| Color Supported | 16.7 Million Colors |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 14 ms |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| USB | Yes |
| Powered USB | Yes |
| USB Type-C | Yes |
| Network (RJ-45) | Yes |
| Cash Drawer Port | Yes |
| Serial Port | Yes |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Number of USB Type C Ports | 1 |
| Built-in Devices | |
| Speaker Power | 2 W |
| Number of Speakers | 2 |
| Software | |
| Operating System | Windows 10 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 13.50 lb (6123.50 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP54 |
| Energy Star | Yes |
User Manual
FAQ
What processor does this Elo POS terminal use?
This terminal features an Intel Core i5 i5-1245UL processor with a base clock speed of 4.40 GHz and 12 MB of cache. This 12th generation processor provides efficient performance for point-of-sale applications, transaction processing, and multitasking across business software while maintaining power efficiency in always-on retail environments.
How much memory and storage does this system include?
The terminal comes configured with 8 GB of DDR5 SDRAM, which delivers faster data transfer rates compared to previous DDR4 memory for improved application responsiveness. Storage is provided by a 256 GB M.2 solid-state drive that offers quick boot times, fast application loading, and reliable operation in high-transaction environments where mechanical hard drives might be less suitable.
What are the display specifications of this POS terminal?
The system features a 21.5" Full HD (1920x1080) LED display with In-plane Switching (IPS) panel technology. This provides wide 178° viewing angles and accurate color reproduction with support for 16.7 million colors. The display includes a projected capacitive touchscreen that supports 10 simultaneous touch points for intuitive interaction with POS software interfaces.
What connectivity options are available on this terminal?
Connectivity includes Gigabit Ethernet for wired network connections, Wireless LAN for flexible placement, and Bluetooth 5.2 for connecting wireless peripherals. Ports include four USB 3.0 ports, four Micro USB 2.0 ports, one USB Type-C port, plus specialized connections for cash drawers, serial devices, and RJ-50 interfaces commonly used in retail environments.
Is this POS terminal suitable for harsh environments?
Yes, the terminal carries an IP54 ingress protection rating, meaning it's protected against dust ingress that could interfere with operation and against water splashes from any direction. This makes it suitable for food service areas, outdoor patios, retail environments, and other locations where occasional spills or airborne particulates might be present during normal operation.
What operating system does this terminal use?
The system comes with Windows 10 pre-installed, providing a familiar interface for operators and broad compatibility with industry-standard point-of-sale software, payment processing applications, and business management tools. Windows 10 offers security features, user management capabilities, and software support appropriate for commercial deployment in retail and hospitality settings.
What print, scan, copy, or multifunction capability is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
