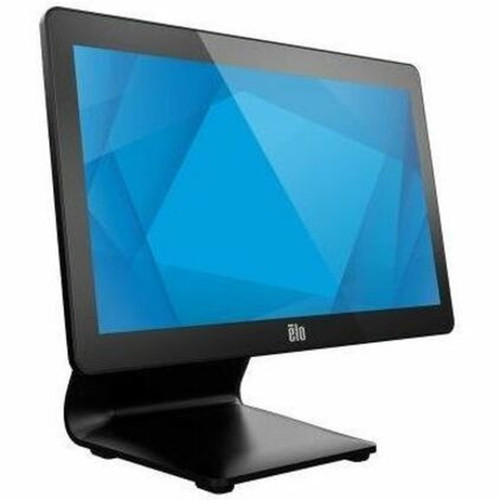

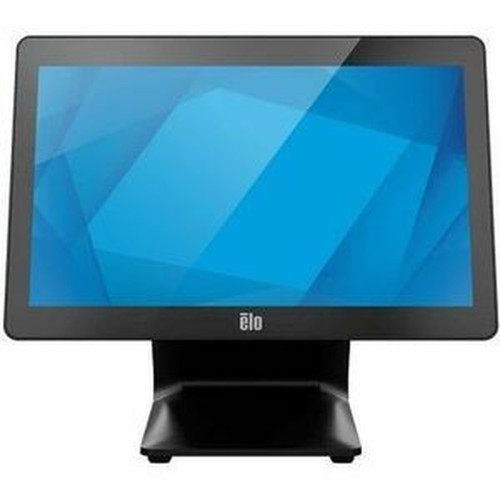

Elo E705428 I-Series 3 POS Terminal - Intel Celeron 7305L 1. 10 GHz - 8 GB DDR5 - 128 GB SSD - 15. 6" Touchscreen - Windows 10 IoT Enterprise
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the I-Series 3 terminal is an Intel Celeron 7305L processor running at 1.10 GHz, paired with 8 GB of DDR5 SDRAM for smooth multitasking across POS software, inventory management, and payment processing applications. The 128 GB M.2 SSD delivers fast boot times and application loading while providing ample storage for operating system, software, and transactional data.
The 15.6" IPS display features Full HD 1920x1080 resolution with 16:9 aspect ratio, producing crisp visuals with 16.2 million colors and wide 170° viewing angles. The projected capacitive touch layer registers up to 10 simultaneous touch points with 25 ms response time, ensuring precise input recognition during fast-paced transactions. Integrated Intel UHD Graphics handles display rendering efficiently without requiring discrete graphics hardware.
This section brings together practical product details such as Cooling Fan, Bluetooth, Bluetooth Standard, Processor Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The I-Series 3 terminal delivers several distinct advantages for commercial deployment scenarios where reliability, connectivity, and user experience directly impact operational efficiency.
Silent Operation
The fanless cooling design eliminates moving parts that can fail in dusty environments while maintaining completely silent operation—ideal for quiet retail spaces, libraries, or hospitality settings where noise reduction matters.
- No fan noise or vibration
- Reduced maintenance requirements
- Better dust resistance
Comprehensive Connectivity
With dedicated cash drawer, serial, and RJ-50 ports alongside modern USB 3.0, USB-C, and Gigabit Ethernet connections, this terminal bridges legacy peripherals with contemporary devices without requiring additional adapters or hubs.
- Legacy port support
- Modern high-speed interfaces
- Reduced adapter dependency
Durable Construction
The IP54 rating provides protection against dust ingress and water splashes, making the terminal suitable for environments where occasional spills or airborne particles are concerns, such as restaurants, bars, or outdoor retail kiosks.
- Dust protected
- Water splash resistant
- Extended service life
Deployment / Use Cases
The Elo I-Series 3 terminal excels in environments requiring reliable touch interaction, robust connectivity, and continuous operation. Its combination of modern computing components with specialized POS interfaces makes it versatile across multiple vertical markets.
In quick-service restaurants and cafes, the responsive touchscreen and dedicated cash drawer port streamline order entry and payment processing during peak hours. Retail stores benefit from the anti-glare display and wide viewing angles when showcasing product information to customers while processing transactions. The fanless design and IP54 rating make it suitable for hospitality venues where noise reduction and spill resistance contribute to guest experience.
Retail Point of Sale
Deploy as primary checkout stations with barcode scanners, receipt printers, and cash drawers connected directly to dedicated ports. The 15.6" display provides ample space for transaction details, inventory lookups, and customer-facing content.
Hospitality Service Points
Install at hotel front desks, restaurant host stands, or concierge stations where the silent operation maintains ambiance while the robust construction withstands high-touch environments with occasional liquid exposure.
Localization and Operating System
This terminal ships with Windows 10 IoT Enterprise LTSC (Long-Term Servicing Channel) 64-bit edition pre-installed, providing a stable, security-updated platform optimized for fixed-function devices like POS systems. The LTSC version eliminates feature updates that could disrupt POS software compatibility, offering a predictable environment for commercial deployment.
While the base configuration uses standard English system language, the touch interface and Windows platform support localization through software configuration for menus, keyboards, and regional settings. The hardware itself maintains global compatibility with various power standards and regional peripheral requirements through its comprehensive port selection.
Physical Profile
The all-in-one design integrates display, computing components, and connectivity into a single compact unit measuring approximately 14.08 pounds. The black finish presents a professional appearance that blends with various commercial environments from upscale retail to industrial settings. The edge-to-edge glass extends to the bezel edges, maximizing screen real estate within the footprint while the anti-glare treatment reduces reflections under bright lighting.
Mounting flexibility supports both standalone use on countertops and VESA-compatible arm or wall mounting for space-constrained installations. The weight distribution and reinforced construction ensure stability when used with touch interaction, preventing movement during vigorous input common in fast-paced transactional environments.
- Weight
- 14.08 lb (6386.58 g)
Highlights
- 15.6" Full HD IPS touchscreen with 10-point multi-touch capability
- Intel Celeron 7305L 1.10 GHz processor with fanless cooling design
- 8 GB DDR5 SDRAM for responsive multitasking performance
- 128 GB M.2 SSD offering fast boot times and application loading
- Windows 10 IoT Enterprise LTSC pre-installed for stable POS operation
- Comprehensive connectivity including cash drawer, serial, and RJ-50 ports
- IP54 rating for dust and water splash protection in commercial environments
- Energy Star certified for reduced power consumption during extended operation
- Built-in dual 2W speakers for audio feedback and multimedia applications
- Gigabit Ethernet, Wi-Fi, and Bluetooth 5.3 for flexible network options
Specifications
| Specifications | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E705428 |
| Brand Name | Elo |
| Product Line | I-Series 3 |
| Product Name | I-Series 3 POS Terminal |
| Product Type | POS Terminal |
| Technical Information | |
| Cooling Fan | Fanless |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Form Factor | All-in-One |
| Features | Edge-to-Edge Glass Design,Anti-glare |
| Processor & Chipset | |
| Processor Manufacturer | Intel |
| Processor Type | Celeron |
| Processor Model | 7305L |
| Processor Speed | 1.10 GHz |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR5 SDRAM |
| Storage | |
| Solid State Drive Capacity | 128 GB |
| Solid State Drive Interface | M.2/PCI Express |
| Display & Graphics | |
| Screen Size | 15.6" |
| Active Display Size (Horizontal) | 13.55" (344.17 mm) |
| Active Display Size (Vertical) | 7.62" (193.55 mm) |
| Display Screen Type | LED |
| Screen Mode | Full HD |
| Panel Technology | In-plane Switching Technology (IPS) |
| Touchscreen | Yes |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touch Points | 10 |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Color Supported | 16.2 Million Colors |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 25 ms |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| USB | Yes |
| Powered USB | Yes |
| USB Type-C | Yes |
| Network (RJ-45) | Yes |
| Cash Drawer Port | Yes |
| Serial Port | Yes |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Number of USB Type C Ports | 1 |
| Built-in Devices | |
| Speaker Power | 2 W |
| Number of Speakers | 2 |
| Software | |
| Operating System | Windows 10 IoT Enterprise LTSC (64-bit) |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 14.08 lb (6386.58 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP54 |
| Energy Star | Yes |
User Manual
FAQ
What operating system comes pre-installed on this POS terminal?
The Elo I-Series 3 terminal ships with Windows 10 IoT Enterprise LTSC (Long-Term Servicing Channel) 64-bit edition. This specialized Windows version is optimized for fixed-function devices like point-of-sale systems, providing enhanced stability and security without disruptive feature updates that could affect POS software compatibility.
Does this terminal support touchscreen interaction?
Yes, the 15.6" display features projected capacitive touch technology that registers up to 10 simultaneous touch points. This multi-touch capability supports gestures like pinch-to-zoom and two-finger scrolling, while the 25 ms response time ensures immediate feedback during transaction processing. The touch layer is integrated with edge-to-edge glass for a seamless surface.
What type of storage does this POS system use?
This terminal utilizes a 128 GB Solid State Drive with M.2/PCI Express interface. Compared to traditional hard drives, the SSD provides faster boot times, quicker application loading, and improved reliability in commercial environments with constant read/write operations. The M.2 form factor saves space within the compact all-in-one design.
Can I connect legacy peripherals like cash drawers and receipt printers?
Absolutely. The terminal includes dedicated cash drawer and serial ports alongside modern USB 3.0, USB-C, and RJ-50 connections. This combination allows direct connection of legacy POS peripherals without requiring additional adapters or converters, simplifying integration into existing retail or hospitality setups.
What networking options are available on this device?
The terminal offers Gigabit Ethernet for wired network connections, integrated wireless LAN for Wi-Fi connectivity, and Bluetooth 5.3 for peripheral pairing. This triple networking approach provides flexibility for various deployment scenarios, from fixed Ethernet installations to wireless kiosks or mobile cart implementations.
Is this terminal suitable for environments with dust or occasional spills?
Yes, with an IP54 ingress protection rating, the terminal is protected against dust ingress and water splashes from any direction. This makes it appropriate for restaurants, outdoor retail kiosks, or industrial settings where occasional liquid exposure or airborne particles could affect electronic equipment reliability.
What print, scan, copy, or multifunction capability is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
