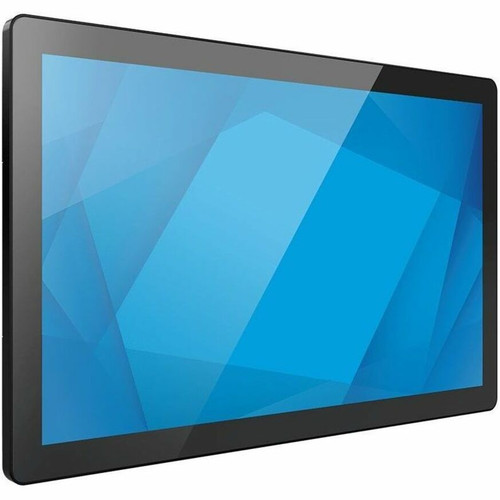

Elo E432576 I-Series 3 POS Terminal - 23. 8" Touch All-in-One with Intel Core i3-1215UL - 8GB DDR5256GB SSD - Windows 10/11 IoT LTSC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the I-Series 3 terminal is an Intel Core i3-1215UL processor with a maximum turbo frequency of 4.40 GHz and 10 MB of cache. This efficient CPU handles transaction processing, inventory management, and customer-facing applications with responsive performance. The system includes 8 GB of DDR5 SDRAM as standard, with expansion support up to 64 GB for future scalability.
Storage is provided by a 256 GB solid-state drive using the M.2/PCI Express interface for fast boot times and application loading. Graphics are powered by Intel UHD Graphics, supporting 16.7 million colors with wide 178-degree viewing angles in both horizontal and vertical directions.
This section brings together practical product details such as Cooling Fan, Bluetooth, Bluetooth Standard, Processor Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The I-Series 3 terminal is engineered for durability and ease of use in commercial environments. Its projected capacitive touch technology supports 10 simultaneous touch points, enabling multi-user interactions and gesture controls. The IP54 rating provides protection against dust and water splashes, ensuring reliability in food service areas or outdoor kiosk applications.
Silent Operation
Fanless design eliminates moving parts for completely silent performance, reducing maintenance needs and creating a quieter customer experience.
- No fan noise
- Reduced dust intake
- Lower maintenance
Comprehensive Connectivity
With multiple USB ports including powered USB for peripherals, serial connectivity for legacy devices, and modern USB Type-C, this terminal supports diverse hardware ecosystems.
- 4x USB 3.0 ports
- Powered USB support
- Serial port for legacy devices
Deployment / Use Cases
This POS terminal excels in retail environments where space optimization and customer interaction are priorities. The all-in-one design reduces cable clutter and footprint while providing both employee-facing and customer-facing functionality. The table mount configuration offers stable placement on countertops or service desks.
In hospitality settings, the IP54 rating makes it suitable for bar areas, restaurant counters, or hotel front desks where occasional spills or cleaning procedures occur. The Energy Star certification demonstrates energy efficiency for businesses managing multiple terminals across locations.
Retail Checkout
Combine transaction processing with customer display functionality in a single unit, reducing hardware costs and simplifying the checkout lane setup.
Self-Service Kiosk
The responsive touch interface and durable construction support interactive kiosk applications for ordering, information lookup, or wayfinding in public spaces.
Localization and Operating System
The terminal ships with Windows 10 IoT Enterprise LTSC (64-bit) pre-installed, with support for upgrading to Windows 11 IoT Enterprise LTSC. These specialized operating systems provide the long-term stability and security updates required for commercial deployments, with reduced feature updates that minimize disruption to business operations.
The black color scheme and professional aesthetic integrate seamlessly into various commercial environments, from upscale retail to industrial settings. The operating system's compatibility with major POS software platforms ensures smooth integration with existing business systems.
This section brings together practical product details such as Cooling Fan, Bluetooth, Bluetooth Standard, Processor Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
Weighing approximately 15.65 lb (7.1 kg), the terminal offers substantial stability while remaining manageable for installation and repositioning. The all-in-one construction integrates display, computing components, and speakers into a unified chassis with table mounting as the standard configuration.
The edge-to-edge glass design provides a modern appearance while protecting the display surface. Built-in stereo speakers with 2W power each deliver clear audio for transaction confirmation tones, multimedia content, or voice guidance in self-service applications.
- Weight
- 15.65 lb (7098.72 g)
Highlights
- 23.8" Full HD touch display with edge-to-edge glass design
- Intel Core i3-1215UL processor with 4.40 GHz turbo frequency
- 8 GB DDR5 SDRAM memory, expandable to 64 GB
- 256 GB M.2/PCI Express solid-state drive for fast storage
- Projected capacitive touch supporting 10 simultaneous touch points
- Fanless cooling architecture for silent operation
- IP54 rating for dust and water splash protection
- Windows 10 IoT Enterprise LTSC with Windows 11 IoT upgrade path
- Comprehensive connectivity including USB 3.0, Type-C, serial, and Ethernet
- Energy Star certified for energy efficiency
Specifications
| Specifications | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E432576 |
| Brand Name | Elo |
| Product Line | I-Series 3 |
| Product Name | I-Series 3 POS Terminal |
| Product Type | POS Terminal |
| Technical Information | |
| Cooling Fan | Fanless |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Form Factor | All-in-One |
| Features | Edge-to-Edge Glass Design |
| Processor & Chipset | |
| Processor Manufacturer | Intel |
| Processor Type | Core i3 |
| Processor Model | i3-1215UL |
| Maximum Turbo Speed | 4.40 GHz |
| Processor Cache | 10 MB |
| Memory | |
| Standard Memory | 8 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Storage | |
| Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | M.2/PCI Express |
| Display & Graphics | |
| Screen Size | 23.8" |
| Active Display Size (Horizontal) | 20.75" (527.05 mm) |
| Active Display Size (Vertical) | 11.67" (296.42 mm) |
| Display Screen Type | LED |
| Screen Mode | Full HD |
| Panel Technology | In-plane Switching Technology (IPS) |
| Touchscreen | Yes |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touch Points | 10 |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Color Supported | 16.7 Million Colors |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 16 ms |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| USB | Yes |
| Powered USB | Yes |
| USB Type-C | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Number of USB Type C Ports | 1 |
| Built-in Devices | |
| Speaker Power | 2 W |
| Number of Speakers | 2 |
| Software | |
| Operating System | Windows 10 IoT Enterprise LTSC (64-bit),Windows 11 IoT Enterprise LTSC (64-bit) |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mount Type | Table Mount |
| Weight (Approximate) | 15.65 lb (7098.72 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP54 |
| Energy Star | Yes |
FAQ
What operating system does this POS terminal include?
The Elo I-Series 3 POS Terminal comes with Windows 10 IoT Enterprise LTSC (64-bit) pre-installed. This specialized version of Windows is designed for commercial and embedded use, offering long-term stability with extended support cycles. The system also supports upgrading to Windows 11 IoT Enterprise LTSC, providing a path to newer features while maintaining the enterprise-grade reliability required for point-of-sale environments.
Can the memory be expanded on this terminal?
Yes, the terminal supports memory expansion up to 64 GB. It comes standard with 8 GB of DDR5 SDRAM, which provides solid performance for most POS applications. The expandable memory architecture allows businesses to increase capacity as their software requirements grow or if they run multiple applications simultaneously, ensuring the terminal remains capable throughout its service life.
What type of touch technology does the display use?
The display features projected capacitive touch technology, which is the same technology used in modern smartphones and tablets. This provides excellent responsiveness and supports multi-touch gestures with up to 10 simultaneous touch points. The edge-to-edge glass design enhances durability while providing a smooth, seamless surface that's easy to clean in commercial environments.
Is this terminal suitable for food service or outdoor use?
With an IP54 ingress protection rating, the terminal offers protection against dust ingress and water splashes from any direction. This makes it suitable for environments like restaurant counters, bars, or outdoor kiosks where occasional spills or cleaning might occur. However, it is not fully waterproof or submersible, so it should not be exposed to direct water jets or immersion.
What connectivity options are available?
The terminal provides comprehensive connectivity including Gigabit Ethernet, Wi-Fi, and Bluetooth 5.3 for wireless connections. Physical ports include 4 USB 3.0 ports, 4 Micro USB 2.0 ports, 1 USB Type-C port, a serial port for legacy devices, RJ-45 network jack, RJ-50 connector, and powered USB ports for peripherals that require additional power. This extensive connectivity supports various peripherals like receipt printers, barcode scanners, and cash drawers.
How does the fanless design benefit operation?
The fanless cooling architecture eliminates moving parts that can fail or accumulate dust over time. This results in completely silent operation, which is particularly valuable in retail environments, libraries, or hospitality settings where noise reduction enhances the customer experience. The design also reduces maintenance needs and improves reliability since there are no fans to clean or replace during the terminal's service life.
What print, scan, copy, or multifunction capability is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
