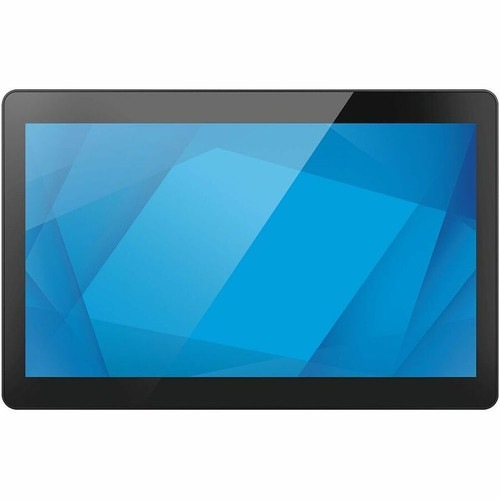

Elo E431006 I-Series 3 POS Terminal - 15. 6" Touchscreen All-in-One - Intel Core i3-1215UL - 8GB DDR5256GB SSD - Windows 11 IoT Enterprise LTSC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This POS terminal integrates compute, display, and connectivity into a single compact unit. The Intel Core i3-1215UL processor operates at up to 4.40 GHz with 10 MB of cache, supporting efficient multitasking across POS software, payment systems, and peripheral management. The 8 GB of DDR5 SDRAM offers low-latency data access and can be expanded to 64 GB for future scalability.
Storage is handled by a 256 GB M.2 PCI Express SSD, providing fast boot times, rapid application loading, and reliable data integrity for transaction logs and inventory databases. The integrated Intel UHD Graphics drives the 15.6" display at Full HD resolution with 16.2 million colors, a 1000:1 contrast ratio, and wide 170° viewing angles for clear visibility from multiple positions.
This section brings together practical product details such as Cooling Fan, Bluetooth, Bluetooth Standard, Processor Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The I-Series 3 terminal is designed to reduce complexity and enhance reliability in point-of-sale deployments. Its all-in-one form factor eliminates separate system units and cable clutter, simplifying installation and maintenance. The edge-to-edge glass front not only looks professional but also resists smudges and is easy to clean, maintaining a polished appearance in customer-facing areas.
Silent Operation
The fanless cooling system removes moving parts that can fail, reducing noise and increasing hardware longevity in quiet or noisy environments alike.
- No fan noise
- Lower maintenance
- Improved reliability
Robust Connectivity
With Gigabit Ethernet, Wi-Fi, Bluetooth 5.3, and a comprehensive set of ports including serial, USB 3.0, and USB Type-C, this terminal interfaces seamlessly with barcode scanners, receipt printers, cash drawers, and payment devices.
- Gigabit Ethernet
- Bluetooth 5.3
- Multiple USB ports
Enterprise-Grade Software
Windows 11 IoT Enterprise LTSC provides a stable, long-term supported operating system optimized for fixed-function devices, with security updates and minimal feature changes that disrupt POS workflows.
- Long-term support
- Enhanced security
- POS-optimized
Deployment / Use Cases
This terminal excels in environments where space, reliability, and user interaction are critical. In retail stores, its touchscreen interface speeds up item lookup, price checks, and checkout processes, while the durable IP54 construction withstands occasional spills or dust exposure near registers.
For hospitality venues like restaurants, bars, and hotels, the terminal supports tableside ordering, payment processing, and reservation management. The integrated 2W stereo speakers provide clear audio for training videos or transaction confirmations, and the table-mount design allows for flexible placement on counters, stands, or kiosks.
Quick-Service Restaurants
Handle high-volume order entry and payment with fast touch response and connectivity for kitchen printers and card readers, all in a compact footprint that fits tight counter spaces.
Retail Checkout Counters
Streamline transactions with the intuitive touch interface, support for peripheral devices via multiple USB ports, and the ability to run modern POS software smoothly on Windows 11 IoT.
Localization and Operating System
The terminal ships with Windows 11 IoT Enterprise LTSC (64-bit) pre-installed, offering a dedicated platform for commercial applications that require extended stability and security. This LTSC version avoids frequent feature updates, reducing downtime and compatibility risks in production environments. The system also supports a downgrade to Windows 10 IoT Enterprise LTSC for organizations with existing deployment standards.
While the hardware is globally compatible, the black color and standard US keyboard layout (implied by the OS) make it suitable for North American markets. The absence of region-specific preloaded software allows for customization with localized POS applications, payment processors, and language packs as needed.
Physical Profile
Encased in a sleek black chassis, the all-in-one design measures a compact footprint ideal for space-constrained counters. The table-mount configuration includes integrated stand options for stable placement, with a weight of 7.94 lb (3.6 kg) allowing for easy repositioning or mounting on articulated arms. The IP54 rating ensures resistance to dust ingress and water splashes, supporting use in kitchens, outdoor patios, or industrial settings where cleanliness and durability are priorities.
- Weight
- 7.94 lb (3601.52 g)
Highlights
- 15.6" Full HD IPS touchscreen with edge-to-edge glass design
- Intel Core i3-1215UL processor with up to 4.40 GHz turbo speed
- 8 GB DDR5 SDRAM, expandable to 64 GB for future needs
- 256 GB M.2 PCI Express SSD for fast storage and boot times
- Windows 11 IoT Enterprise LTSC for long-term stability and security
- Fanless cooling ensures silent, reliable operation
- IP54 rating protects against dust and water splashes
- Comprehensive connectivity: Gigabit Ethernet, Wi-Fi, Bluetooth 5.3, multiple USB ports
- 10-point projected capacitive multi-touch for intuitive interaction
- All-in-one form factor reduces clutter and simplifies installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E431006 |
| Brand Name | Elo |
| Product Line | I-Series 3 |
| Product Name | I-Series 3 POS Terminal |
| Product Type | POS Terminal |
| Technical Information | |
| Cooling Fan | Fanless |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Form Factor | All-in-One |
| Features | Edge-to-Edge Glass Design |
| AI-powered | Yes |
| Processor & Chipset | |
| Processor Manufacturer | Intel |
| Processor Type | Core i3 |
| Processor Model | i3-1215UL |
| Maximum Turbo Speed | 4.40 GHz |
| Processor Cache | 10 MB |
| Memory | |
| Standard Memory | 8 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Storage | |
| Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | M.2/PCI Express |
| Display & Graphics | |
| Screen Size | 15.6" |
| Active Display Size (Horizontal) | 13.55" (344.17 mm) |
| Active Display Size (Vertical) | 7.62" (193.55 mm) |
| Display Screen Type | LED |
| Screen Mode | Full HD |
| Panel Technology | In-plane Switching Technology (IPS) |
| Touchscreen | Yes |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touch Points | 10 |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Color Supported | 16.2 Million Colors |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 25 ms |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| USB | Yes |
| Powered USB | Yes |
| USB Type-C | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Number of USB Type C Ports | 1 |
| Built-in Devices | |
| Speaker Power | 2 W |
| Number of Speakers | 2 |
| Software | |
| Operating System | Windows 11 IoT Enterprise LTSC (64-bit),Windows 10 IoT Enterprise LTSC (64-bit) |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mount Type | Table Mount |
| Weight (Approximate) | 7.94 lb (3601.52 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP54 |
| Energy Star | Yes |
User Manual
FAQ
What operating system does the Elo E431006 POS Terminal use?
The terminal comes pre-installed with Windows 11 IoT Enterprise LTSC (64-bit), a long-term servicing channel version designed for fixed-purpose devices like POS systems. It provides extended security updates and minimal feature changes, ensuring stability for commercial applications. The system also supports a downgrade to Windows 10 IoT Enterprise LTSC if required by existing IT policies.
Can the memory be upgraded on this POS terminal?
Yes, the Elo E431006 supports memory expansion up to 64 GB. It comes standard with 8 GB of DDR5 SDRAM, which offers high bandwidth and efficiency for multitasking. Upgrading the memory can enhance performance in environments running multiple applications simultaneously, such as inventory management, payment processing, and customer relationship software.
Is the touchscreen suitable for high-use environments?
Absolutely. The 15.6" display features projected capacitive multi-touch technology that supports up to 10 simultaneous touch points, allowing for gestures and fast input. The edge-to-edge glass design is durable and easy to clean, resisting smudges and scratches common in retail or hospitality settings. The IPS panel ensures consistent color and clarity even at wide viewing angles.
What connectivity options are available for peripherals?
This terminal includes a robust set of ports: 4 USB 3.0 ports, 4 Micro USB 2.0 ports, 1 USB Type-C port, a serial port, Gigabit Ethernet (RJ-45), and an RJ-50 connector. It also features powered USB to support devices like barcode scanners without external power, along with built-in Wi-Fi and Bluetooth 5.3 for wireless peripherals such as printers or handheld devices.
How does the fanless design benefit operation?
The fanless cooling architecture eliminates moving parts that can accumulate dust and fail over time, reducing maintenance needs and increasing reliability. It also ensures silent operation, which is ideal for quiet retail spaces, libraries, or upscale dining areas. This design contributes to the IP54 rating by removing fan vents that could let in dust or moisture.
What is the IP54 rating and where can this terminal be used?
The IP54 rating indicates protection against limited dust ingress (5) and water splashes from any direction (4). This makes the terminal suitable for environments where spills or dust are concerns, such as restaurant kitchens, outdoor kiosks, manufacturing floors, or retail counters. It can withstand occasional splashes and dusty conditions without compromising performance.
What print, scan, copy, or multifunction capability is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
