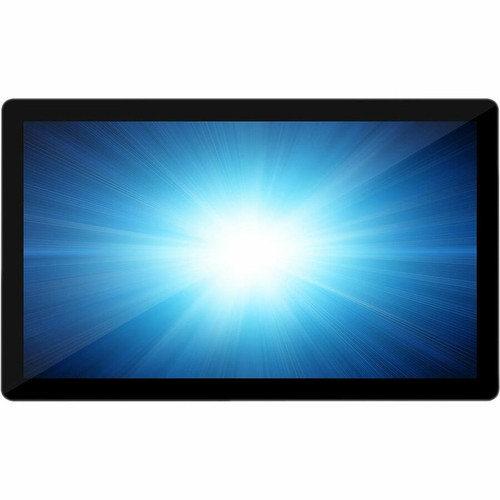

Elo E948592 I-Series POS Terminal - 22" All-in-One Touchscreen - Intel Celeron J4125 2. 70 GHz - 256 GB SSD - Windows 10 IoT Enterprise LTSC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Elo I-Series terminal features a 22-inch TFT display with 16:9 aspect ratio and 16.7 million color support. The touchscreen interface supports intuitive interaction while the 178-degree viewing angles ensure clear visibility from multiple positions. Graphics are handled by Intel UHD Graphics 600 with a 14 ms response time and 1000:1 contrast ratio.
Connectivity includes Gigabit Ethernet for reliable wired networking, Wi-Fi for wireless flexibility, and Bluetooth 5.2 for peripheral connections. The terminal includes one USB 3.0 port for high-speed device connectivity and supports integrated webcam functionality with 1080p resolution at 30 fps.
This section brings together practical product details such as Bluetooth, Bluetooth Standard, Form Factor, Processor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Elo I-Series POS Terminal combines hardware reliability with software compatibility to create a versatile platform for modern business operations. The all-in-one form factor reduces clutter while maintaining comprehensive functionality.
Enhanced Display Experience
The 22-inch touchscreen with edge-to-edge glass provides both durability and an expansive interactive surface. Wide viewing angles and high contrast ratio ensure clear visibility in various lighting conditions.
- 22" TFT touchscreen
- 178° viewing angles
- Edge-to-edge glass design
- 16.7 million colors
Reliable Performance Architecture
Intel Celeron J4125 processor with DDR4 SDRAM and 256 GB SSD delivers consistent performance for POS applications. The solid-state storage provides faster access times and greater reliability than traditional hard drives.
- Intel Celeron J4125 2.70 GHz
- DDR4 SDRAM memory
- 256 GB SSD storage
- Windows 10 IoT Enterprise LTSC
Comprehensive Connectivity
Dual networking options with both Gigabit Ethernet and Wi-Fi, plus Bluetooth 5.2 for peripheral connections. Integrated webcam and speakers support video communication and audio feedback.
- Gigabit Ethernet
- Wi-Fi and Bluetooth 5.2
- USB 3.0 port
- Integrated 1080p webcam
Deployment / Use Cases
This Elo terminal is engineered for continuous operation in retail environments, restaurant systems, hotel check-in stations, and service counters. The all-in-one design simplifies installation while maintaining professional appearance.
The Windows 10 IoT Enterprise LTSC operating system provides long-term stability with security updates, making it suitable for environments requiring consistent performance without frequent system changes. The terminal supports various POS software platforms and can integrate with payment systems, inventory management, and customer relationship tools.
This section brings together practical product details such as Bluetooth, Bluetooth Standard, Form Factor, Processor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Localization and Operating System
This Elo I-Series POS Terminal ships with Windows 10 IoT Enterprise LTSC (64-bit) pre-installed, a specialized operating system designed for long-term stability in commercial environments. This version provides security updates and support over an extended lifecycle without frequent feature changes, ensuring consistent performance for point-of-sale applications that require minimal downtime.
The terminal is configured for English language support and standard North American regional settings, making it ready for deployment in retail, hospitality, and service industries across Canada. The operating system's compatibility with common POS software platforms allows for seamless integration with existing business systems, reducing setup time and technical overhead.
Highlights
- 22-inch all-in-one touchscreen terminal with edge-to-edge glass design
- Intel Celeron J4125 quad-core processor at 2.70 GHz for responsive performance
- 256 GB solid-state drive for fast boot times and reliable storage
- Windows 10 IoT Enterprise LTSC (64-bit) for long-term stability
- Comprehensive connectivity with Gigabit Ethernet, Wi-Fi, and Bluetooth 5.2
- Integrated 1080p webcam and dual 2W speakers for multimedia functionality
- Wide 178-degree viewing angles with 1000:1 contrast ratio
- 3-year limited warranty with Energy Star certified efficiency
Specifications
| Specifications | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E948592 |
| Brand Name | Elo |
| Product Series | I-Series |
| Product Name | I-Series POS Terminal |
| Product Type | POS Terminal |
| Technical Information | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Form Factor | All-in-One |
| Features | Edge-to-Edge Glass Design |
| Processor & Chipset | |
| Processor Type | Celeron |
| Processor Model | J4125 |
| Processor Speed | 2.70 GHz |
| Processor Cache | 4 MB |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Storage | |
| Solid State Drive Capacity | 256 GB |
| Display & Graphics | |
| Screen Size | 22" |
| Display Screen Type | TFT |
| Touchscreen | Yes |
| Graphics Controller Model | UHD Graphics 600 |
| Color Supported | 16.7 Million Colors |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 14 ms |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Number of USB 3.0 Ports | 1 |
| Built-in Devices | |
| Webcam Frame Rate | 1920 x 1080 @ 30 fps |
| Speaker Power | 2 W |
| Number of Speakers | 2 |
| Software | |
| Operating System | Windows 10 IoT Enterprise LTSC (64-bit) |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Miscellaneous | |
| Energy Star | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What print, scan, copy, or multifunction capability is listed?
This Elo I-Series terminal features a 22-inch TFT display with 16:9 aspect ratio and 16.7 million color support. The touchscreen interface supports intuitive interaction while the 178-degree viewing angles ensure clear visibility from multiple positions. Graphics are handled by Intel UHD Graphics 600 with a 14 ms response time and 1000:1 contrast ratio. Connectivity includes Gigabit Ethernet for reliable wired networking, Wi-Fi for wireless flexibility, and Bluetooth 5.2 for peripheral connections. The terminal includes one USB 3.0 port for high-speed device connectivity and supports integrated webcam functionality with 1080p resolution at 30 fps.
What duplex or duty-cycle detail is listed?
This Elo I-Series terminal features a 22-inch TFT display with 16:9 aspect ratio and 16.7 million color support. The touchscreen interface supports intuitive interaction while the 178-degree viewing angles ensure clear visibility from multiple positions. Graphics are handled by Intel UHD Graphics 600 with a 14 ms response time and 1000:1 contrast ratio. Connectivity includes Gigabit Ethernet for reliable wired networking, Wi-Fi for wireless flexibility, and Bluetooth 5.2 for peripheral connections. The terminal includes one USB 3.0 port for high-speed device connectivity and supports integrated webcam functionality with 1080p resolution at 30 fps.
What connectivity options are listed?
Connectivity options include Bluetooth 5.2, helping the product integrate into common office or home setups.
What label, receipt, or business-print workflow detail is listed?
This Elo I-Series terminal features a 22-inch TFT display with 16:9 aspect ratio and 16.7 million color support. The touchscreen interface supports intuitive interaction while the 178-degree viewing angles ensure clear visibility from multiple positions. Graphics are handled by Intel UHD Graphics 600 with a 14 ms response time and 1000:1 contrast ratio. Connectivity includes Gigabit Ethernet for reliable wired networking, Wi-Fi for wireless flexibility, and Bluetooth 5.2 for peripheral connections. The terminal includes one USB 3.0 port for high-speed device connectivity and supports integrated webcam functionality with 1080p resolution at 30 fps.
What performance, throughput, or capacity detail stands out?
The listed power specification is DDR4 SDRAM, which helps position the unit for the right load level and installation role.
What physical fit or dimensions are listed?
The Elo I-Series POS Terminal combines hardware reliability with software compatibility to create a versatile platform for modern business operations. The all-in-one form factor reduces clutter while maintaining comprehensive functionality.
