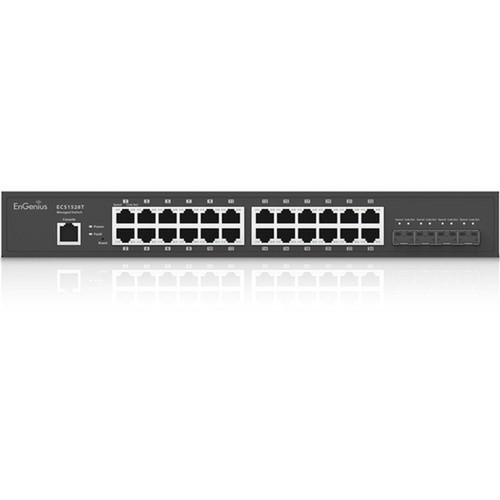

EnGenius ECS1528T Cloud Managed 24-Port Gigabit Switch with 4 SFP+ Ports - 1U Rack-Mountable Compact Layer 2
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Port Configuration
The switch features 24 auto-sensing 10/100/1000BASE-T ports for copper connections and four SFP+ slots for fiber or DAC uplinks, supporting 10GBase-X standards.
- 24 x Gigabit Ethernet RJ-45 ports
- 4 x SFP+ 10Gb expansion slots
- Auto-MDI/MDIX on all copper ports
Switching Performance
With non-blocking architecture, the switch supports wire-speed switching across all ports simultaneously. It includes hardware-based Layer 2 features for efficient network operation.
- 48 Gbps switching capacity
- 35.7 Mpps forwarding rate
- 8K MAC address table
Key Product Advantages
This switch combines high port density with compact physical dimensions, making it ideal for space-constrained rack environments. The inclusion of four SFP+ ports provides flexible uplink options for connecting to core switches, servers, or storage arrays at 10 Gigabit speeds.
Cloud Management Simplicity
Manage the switch remotely through a cloud-based interface with features like port configuration, VLAN setup, traffic monitoring, and firmware updates.
- Web-based management interface
- SNMP v1/v2c/v3 support
- LLDP for network discovery
Dual Voltage Power Supply
The built-in power supply accepts both 120V and 230V input, making the switch suitable for deployment in various regions without requiring voltage converters.
- Auto-sensing input voltage
- Universal power compatibility
- No external power brick needed
Deployment / Use Cases
The ECS1528T is designed for small to medium business networks, branch offices, and edge deployments where reliable switching with management capabilities is required. Its compact 1U form factor makes it suitable for standard 19-inch racks in server rooms, wiring closets, or network cabinets.
Typical deployments include connecting workstations, IP phones, wireless access points, and surveillance cameras through the 24 Gigabit ports, while using the SFP+ uplinks to connect to a core switch or server at 10 Gigabit speeds. The switch's management features enable segmentation of traffic through VLANs, prioritization of voice or video traffic through QoS, and monitoring of network performance.
Office Network Backbone
Serve as the primary switch for an office floor, connecting employee workstations, printers, and VoIP phones while providing high-speed uplinks to the server room.
Edge Distribution Switch
Deploy at remote locations or branch offices to provide local switching with cloud management capabilities, reducing the need for on-site IT staff.
Physical Profile
Measuring 1.73" (44 mm) in height, 9.06" (230 mm) in width, and 12.99" (330 mm) in depth, the switch occupies minimal rack space while providing full switching functionality. The compact design includes integrated mounting ears for standard 19-inch rack installation, and the lightweight construction at 5.07 lb (2300 g) simplifies handling during deployment.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 9.06" (230 mm), 5.07 lb (2300 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 9.06" (230 mm)
- Height
- 1.73" (44 mm)
- Weight
- 5.07 lb (2300 g)
- Length
- 12.99" (330 mm)
What's in the Box
The switch ships with all necessary components for immediate deployment in rack or desktop environments.
Highlights
- 24 Gigabit Ethernet ports for high-density device connections
- 4 SFP+ ports supporting 10 Gigabit Ethernet uplinks
- Cloud-managed Layer 2 switch with web interface
- Compact 1U rack-mountable form factor
- Dual voltage power supply (120V/230V AC)
- Advanced features: VLAN, QoS, link aggregation, IGMP snooping
- Includes rack mount kit and console cable
- 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | EnGenius Technologies, Inc |
| Manufacturer Part Number | ECS1528T |
| Brand Name | EnGenius |
| Product Series | ECS |
| Product Model | ECS1528T |
| Product Name | Cloud Managed 24-Port 13" Compact Gigabit Switch with 4 SFP+ Ports |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1x,IEEE 802.3ad,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1D,IEEE 802.3az |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Compact |
| Height | 1.73" (44 mm) |
| Width | 9.06" (230 mm) |
| Length | 12.99" (330 mm) |
| Weight (Approximate) | 5.07 lb (2300 g) |
| Miscellaneous | |
| Package Contents | Cloud Managed 24-Port 13" Compact Gigabit Switch with 4 SFP+ Ports 1 x Quick Installation Guide 1 x Power Cord 1 x RJ45 Console Cable 1 x Rack Mount Kit |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
How many devices can I connect directly to this switch?
The EnGenius ECS1528T provides 24 Gigabit Ethernet ports for direct device connections. This allows you to connect up to 24 computers, printers, IP phones, wireless access points, or other network devices simultaneously using standard Ethernet cables. The switch also includes four SFP+ ports for uplink connections to other switches or servers.
What are the SFP+ ports used for on this switch?
The four SFP+ ports support 10 Gigabit Ethernet connections using either fiber optic SFP+ modules or direct-attach copper cables. These ports are typically used for high-speed uplinks to core switches, servers, or storage devices, providing significantly faster backbone connectivity compared to standard Gigabit Ethernet ports. They support 10GBase-X standards for reliable high-bandwidth connections.
Is this switch manageable, and what features does it support?
Yes, the ECS1528T is a fully manageable Layer 2 switch. It supports cloud-based management through a web interface, allowing configuration of VLANs, Quality of Service (QoS), link aggregation, port mirroring, and IGMP snooping. The switch also supports SNMP for network monitoring and includes features like spanning tree protocol for network redundancy and loop prevention.
What rack space does this switch require for installation?
The switch has a compact 1U form factor, meaning it occupies one rack unit (1.75 inches) of vertical space in a standard 19-inch rack. Its dimensions are 1.73" high × 9.06" wide × 12.99" deep. The included rack mount kit provides all necessary hardware for secure installation in server racks or network cabinets.
What power requirements does this switch have?
The switch includes a built-in power supply that accepts both 120V and 230V AC input, making it compatible with standard North American and international power systems. This dual-voltage capability eliminates the need for external voltage converters when deploying the switch in different regions. The power supply ensures stable operation without requiring a separate power brick.
What is included in the package with this switch?
The package includes the Cloud Managed 24-Port Compact Gigabit Switch with 4 SFP+ Ports, a quick installation guide, a power cord suitable for your region, an RJ45 console cable for initial setup, and a complete rack mount kit with all necessary screws and brackets for 19-inch rack installation. All components are provided for immediate deployment.
