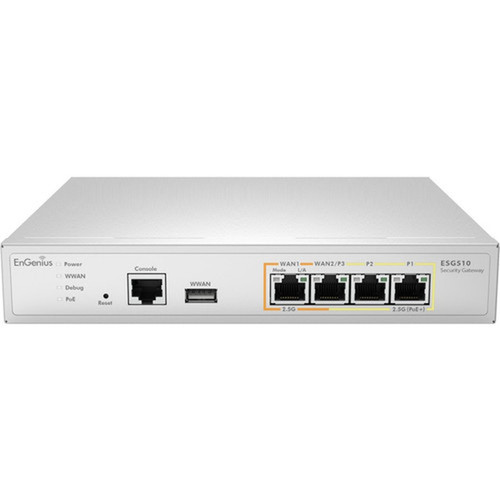

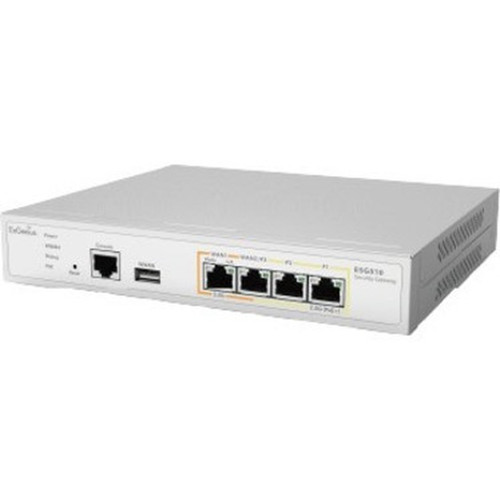

EnGenius ESG510 Cloud Security Gateway - 4-Port 2.5GbE Firewall with 4 Gbit/s Throughput - VPN - PoE - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This security gateway achieves a firewall throughput of 4 Gbit/s, ensuring minimal latency for inspected traffic, with VPN throughput rated at 121.25 MB/s to support secure remote access for up to 200 concurrent VPN connections. The appliance leverages 2.5GBase-T network standards across its four RJ-45 ports, which include a Power over Ethernet (PoE) port to deliver both data and power over a single cable, ideal for locations without convenient power outlets.
Additional connectivity options include USB support and integrated LTE/5G cellular data capabilities, providing failover or primary WAN connectivity in scenarios where traditional broadband is unavailable or unreliable. The device is fully manageable via cloud-based tools, enabling remote configuration, policy updates, and real-time security monitoring without on-site intervention.
Relevant factors for this section include Firewall Protection Supported, Firewall Throughput, Encryption Standard, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ESG510 combines high-performance security with flexible deployment options, making it a versatile choice for small to medium-sized businesses, branch offices, and retail environments. Its wall-mountable design saves valuable rack or desktop space, while the integrated PoE port reduces cabling complexity for connected devices like wireless access points or IP cameras.
Advanced Encryption & Security
Utilizes multiple encryption algorithms, including 3DES and AES-256-bit, to encrypt data three times with 64-bit keys, providing layered protection for sensitive information across the network.
- Stateful Packet Filtering
- Dead Peer Detection
- SHA-2 256-bit Hashing
High-Speed Network Ready
Features four 2.5 Gigabit Ethernet ports that support modern network demands, ensuring fast data transfer and reduced bottlenecks for bandwidth-intensive applications.
- 2.5GBase-T Compliance
- 4 Gbit/s Firewall Throughput
- Low-Latency Performance
Deployment / Use Cases
Ideal for securing edge networks where reliable, high-throughput firewall protection is critical, the ESG510 is commonly deployed in retail stores, remote offices, and small business headquarters. Its compact form factor and wall-mount capability allow for discreet installation in server closets, behind monitors, or in other space-constrained areas.
Use cases include providing secure internet gateway functionality with VPN access for remote workers, protecting point-of-sale systems and customer data in retail environments, and serving as a primary or backup firewall for branch offices with cellular failover support. The PoE port further extends its utility by powering compatible devices like surveillance cameras or Wi-Fi access points, streamlining infrastructure deployment.
Branch Office Security
Deploy as the main firewall for remote offices, offering VPN connectivity for employees and cellular backup to maintain uptime during broadband outages.
Retail & Hospitality
Secure network traffic for POS systems and guest Wi-Fi, with wall mounting to keep the appliance out of sight while ensuring robust data protection.
Physical Profile
The ESG510 features a compact, wall-mountable chassis measuring 8.27" wide by 1.38" high, with an approximate weight of 2.14 lb, making it easy to install in tight spaces without occupying desktop or rack real estate. Its sleek design includes ventilation for optimal thermal management during continuous operation, and the included wall-mount kit facilitates secure attachment to vertical surfaces.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.38" (35.05 mm), 8.27" (210.06 mm), 2.14 lb (970.69 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8.27" (210.06 mm)
- Height
- 1.38" (35.05 mm)
- Weight
- 2.14 lb (970.69 g)
What's in the Box
The package includes all necessary components for immediate deployment and setup.
Highlights
- 4-port 2.5 Gigabit Ethernet firewall with 4 Gbit/s throughput for high-speed network security.
- Supports up to 200 concurrent VPN connections with 121.25 MB/s VPN throughput.
- Advanced encryption standards including AES-256-bit, 3DES, and SHA-2 for robust data protection.
- Includes a PoE (RJ-45) port to deliver data and power over a single cable.
- Integrated LTE/5G cellular connectivity for failover or primary WAN access.
- Wall-mountable form factor saves space and allows for discreet installation.
- Cloud-managed for remote configuration, monitoring, and policy updates.
- Backed by a 2-year limited warranty for reliable long-term use.
Specifications
| Specifications | |
|---|---|
| Manufacturer | EnGenius Technologies, Inc |
| Manufacturer Part Number | ESG510 |
| Brand Name | EnGenius |
| Product Name | Cloud Security Gateway |
| Product Type | High Availability Firewall |
| Technical Information | |
| Firewall Protection Supported | Stateful Packet Filtering,Dead Peer Detection |
| Firewall Throughput | 4 Gbit/s |
| Encryption Standard | DES,3DES,AES (256-bit),MD5,SHA-1,SHA-2 256-bit |
| Number of VPN Supported | 200 |
| Interfaces/Ports | |
| Total Number of Ports | 4 |
| USB | Yes |
| PoE (RJ-45) Port | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Media & Performance | |
| VPN Throughput | 121.25 MB/s |
| Network & Communication | |
| Cellular Data Connectivity Technology | LTE |
| Cellular Generation | 5G |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Network Standard | 2.5GBase-T |
| Wireless Specifications | |
| Wireless LAN | Yes |
| Management & Protocols | |
| Manageable | Yes |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 1.38" (35.05 mm) |
| Width | 8.27" (210.06 mm) |
| Weight (Approximate) | 2.14 lb (970.69 g) |
| Miscellaneous | |
| Package Contents | Cloud Security Gateway Power Adapter Power Cord RJ-45 Console Cable Wall Mount Kit Quick Installation Guide |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the firewall throughput of the EnGenius ESG510?
The EnGenius ESG510 delivers a firewall throughput of 4 Gbit/s, enabling it to inspect and filter network traffic at high speeds without introducing significant latency. This performance level is suitable for small to medium-sized business networks handling moderate to heavy data loads.
How many VPN connections does this security gateway support?
This appliance supports up to 200 concurrent VPN connections, with a VPN throughput of 121.25 MB/s. It facilitates secure remote access for employees or branch offices, using encryption standards like AES-256-bit to protect data in transit.
Does the ESG510 include Power over Ethernet (PoE) capabilities?
Yes, the ESG510 features one PoE (RJ-45) port that can deliver both data and electrical power over a single Ethernet cable. This is useful for powering devices like wireless access points or IP cameras in locations where power outlets are not readily available.
What cellular connectivity options are available on this gateway?
The gateway includes LTE and 5G cellular data connectivity, providing a backup or primary WAN connection. This ensures network continuity in scenarios where traditional broadband services are disrupted, making it ideal for remote sites or as a failover solution.
Is the EnGenius ESG510 wall-mountable?
Yes, the ESG510 is designed with a wall-mountable form factor, and a wall mount kit is included in the package. Its compact dimensions of 8.27" wide by 1.38" high allow for installation in space-constrained areas like server closets or behind equipment.
What encryption standards does this firewall appliance use?
The appliance supports multiple encryption standards, including DES, 3DES, AES (256-bit), MD5, SHA-1, and SHA-2 256-bit. These provide layered security for data protection, with 3DES encrypting data three times using 64-bit keys for enhanced security.
