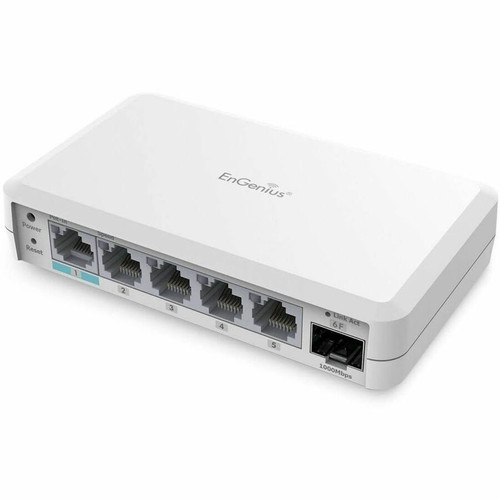

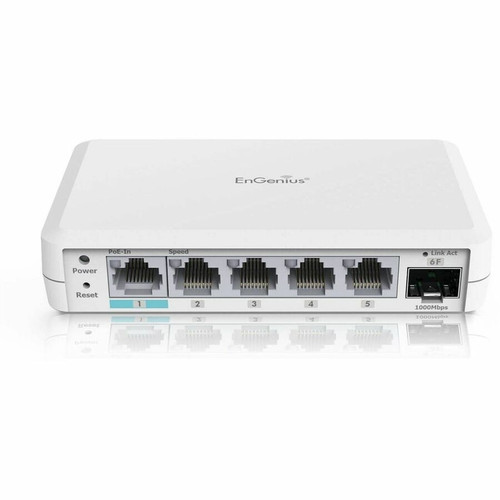

EnGenius EXT1106 5-Port Gigabit Switch Extender - 4x GE Ports - 1x GE PoE Port - 1x SFP Uplink - Layer 2 Managed
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on Gigabit Ethernet technology, the EXT1106 supports 10/100/1000Base-T copper connections and 1000Base-X fiber via its SFP slot. The switch complies with IEEE 802.3u, 802.3ab, 802.1p, 802.1Q, and 802.1w standards, ensuring interoperability with modern network infrastructure. Its maximum data transfer rate of 125 MB/s provides sufficient bandwidth for simultaneous high-definition video streaming, file transfers, and VoIP communications.
The single PoE port delivers power to connected powered devices, eliminating the need for separate power adapters at remote locations. Dual voltage input (120V/230V AC) through the included power adapter ensures compatibility with North American and international power standards.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Uplink Port. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The EXT1106 combines port density, power delivery, and uplink flexibility in a compact form factor ideal for space-constrained installations. Its managed capabilities provide network administrators with control over traffic prioritization, security segmentation, and network resilience without requiring a full-featured enterprise switch.
Cloud Management Ready
Configure and monitor the switch remotely through the EnGenius Cloud App, with optional Pro licenses for advanced features. Zero-touch provisioning simplifies deployment across multiple sites.
- Centralized cloud configuration
- Visualized monitoring dashboard
- Remote management from anywhere
Enhanced Network Performance
Voice VLAN functionality ensures quality of service for VoIP traffic, while IGMP snooping optimizes multicast streaming. RSTP (Rapid Spanning Tree Protocol) prevents network loops and improves failover recovery.
- Prioritized VoIP traffic
- Optimized multicast handling
- Network loop prevention
Deployment / Use Cases
This switch extender serves as an ideal solution for extending network connectivity to areas where running new cabling is impractical or cost-prohibitive. Its compact size and wall-mount capability make it suitable for installation behind monitors, under desks, or in telecom closets where rack space is limited.
Common deployment scenarios include adding network drops in conference rooms, retail point-of-sale locations, or remote office corners. The PoE port powers a single device such as a wireless access point or security camera, while the SFP uplink connects to fiber backbones for extended distance runs between buildings or floors.
Small Office Expansion
Add additional wired connections in growing offices without replacing existing switches. The compact design fits discreetly in workspace environments.
Retail & Hospitality
Deploy at point-of-sale stations or guest areas to connect multiple devices while powering a single PoE-enabled peripheral.
Physical Profile
Measuring just 1.10" high × 2.09" wide × 4.92" long (27.94 × 53.09 × 124.97 mm), the EXT1106 occupies minimal physical space. Its lightweight construction at 4.37 ounces (124 grams) allows for secure wall mounting using the included hardware kit. The compact form factor and dual mounting options provide installation flexibility in various environments from office cubicles to retail display areas.
- Width
- 2.09" (53.09 mm)
- Height
- 1.10" (27.94 mm)
- Weight
- 4.37 oz (124 g)
- Length
- 4.92" (124.97 mm)
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- 5-port Gigabit Ethernet switch with 4x GE ports and 1x GE PoE port
- Integrated Gigabit SFP uplink slot for fiber optic connections
- Layer 2 managed with VLAN, QoS, and spanning tree support
- Cloud-manageable via EnGenius Cloud App with zero-touch provisioning
- Voice VLAN ensures prioritized VoIP traffic quality
- Compact wall-mountable design (1.10" H × 2.09" W × 4.92" L)
- Dual voltage input (120V/230V AC) for international compatibility
- Includes wall mount kit and power adapter for immediate installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | EnGenius Technologies, Inc |
| Manufacturer Part Number | EXT1106 |
| Brand Name | EnGenius |
| Product Model | EXT1106 |
| Product Name | 4x GE Ports, 1x GE PD and 1x SFP Switch Extender |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Reset Button |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 4 × 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port,1 × 10/100/1000BASE-T Gigabit Ethernet PoE RJ-45 Network Port,1 x Gigabit Ethernet SFP Expansion slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| Maximum Data Transfer Rate | 125 MB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3u,IEEE 802.3ab,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Adapter |
| Physical Characteristics | |
| Form Factor | Compact,Wall Mountable |
| Height | 1.10" (27.94 mm) |
| Width | 2.09" (53.09 mm) |
| Length | 4.92" (124.97 mm) |
| Weight (Approximate) | 4.37 oz (124 g) |
| Miscellaneous | |
| Package Contents | 4x GE Ports, 1x GE PD and 1x SFP Switch Extender 1 x Product Card 1 x Wall Mount Kit 1 x Power Adapter |
User Manual
FAQ
How many PoE ports does the EXT1106 have?
The EXT1106 includes one Gigabit Ethernet PoE port that delivers power to compatible powered devices such as VoIP phones, wireless access points, or security cameras. This single PoE port operates alongside four standard Gigabit Ethernet ports, providing both data and power through a single cable connection to simplify remote device installation.
What is the purpose of the SFP slot on this switch?
The integrated Gigabit Ethernet SFP slot serves as an uplink port for connecting to fiber optic networks or extending network coverage beyond the 100-meter limitation of traditional copper cabling. This allows the switch to interface with fiber backbones for bandwidth-intensive applications or long-distance runs between buildings while maintaining full Gigabit performance.
Is the EXT1106 a managed or unmanaged switch?
This is a Layer 2 managed switch offering essential network management features including VLAN support for traffic segmentation, Quality of Service (QoS) prioritization, and Rapid Spanning Tree Protocol (RSTP) for network stability. These managed capabilities provide administrators with control over network traffic without requiring a full enterprise-grade switch infrastructure.
Can I manage this switch remotely?
Yes, the EXT1106 supports cloud management through the EnGenius Cloud App, allowing configuration and monitoring from anywhere with internet access. The platform offers zero-touch provisioning for simplified deployment, visualized monitoring dashboards, and optional Pro licenses for advanced management features tailored to specific network requirements.
What are the physical dimensions of this switch?
The switch measures 1.10 inches in height, 2.09 inches in width, and 4.92 inches in length (27.94 × 53.09 × 124.97 mm), with a weight of approximately 4.37 ounces (124 grams). This compact form factor, combined with included wall-mount hardware, enables installation in space-constrained locations such as behind monitors, under desks, or in telecom closets.
What networking standards does this switch support?
The EXT1106 complies with IEEE 802.3u (Fast Ethernet), 802.3ab (Gigabit Ethernet over copper), 802.1p (QoS prioritization), 802.1Q (VLAN tagging), and 802.1w (Rapid Spanning Tree Protocol) standards. This standards compliance ensures interoperability with existing network infrastructure while providing essential features for traffic management, security segmentation, and network resilience.
