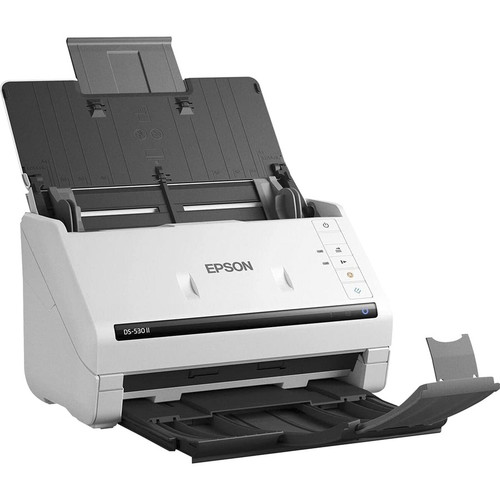

Epson B11B261202 DS-530 II Large Format ADF Scanner - 600 dpi Optical - 35 ppm Mono/Color - 50-Sheet ADF - Duplex - White ( )
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DS-530 II delivers 35 pages per minute scanning speed for both monochrome and color documents, with a corresponding 70 images per minute rate when scanning both sides simultaneously. This performance is supported by 30-bit color depth and 24-bit grayscale depth, ensuring accurate color reproduction and detailed monochrome capture across various document types.
The scanner's large format capability extends to custom-sized media up to 8.5 inches wide by 20 feet long, accommodating engineering drawings, blueprints, and continuous-form documents. The 50-sheet automatic document feeder handles mixed media including business cards, ID cards, and standard paper without manual intervention between batches.
Relevant factors for this section include Large Format, Optical Resolution (dpi), Scan Color, USB. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The DS-530 II combines large format scanning with automated document feeding to address specialized digitization needs that standard office scanners cannot fulfill. This scanner eliminates the need for manual feeding of oversized documents while maintaining professional-grade image quality and throughput.
Efficient Batch Processing
The 50-sheet ADF with duplex scanning enables unattended processing of mixed document types, reducing operator intervention and increasing productivity during large digitization projects.
- Handles business cards to 20-foot documents
- Automatic size detection
- Continuous feeding capability
Professional Image Quality
600 dpi optical resolution with 30-bit color depth captures fine details and accurate colors, ensuring digitized documents maintain their original integrity for archival or distribution purposes.
- Precise text capture
- Accurate color reproduction
- Detailed grayscale rendering
Simplified Integration
USB connectivity and broad operating system compatibility allow quick deployment into existing IT environments without requiring specialized hardware or software configurations.
- Plug-and-play setup
- Cross-platform driver support
- Standard interface compatibility
Deployment / Use Cases
The Epson DS-530 II serves organizations that regularly process oversized documents requiring preservation or digital distribution. Its combination of large format capability and automated feeding makes it particularly valuable for digitization projects where manual handling would be impractical or time-consuming.
Architectural and engineering firms utilize this scanner for converting blueprints and technical drawings into digital formats for CAD integration or client distribution. Financial institutions and government agencies deploy it for digitizing long-form reports, legal documents, and archival records that exceed standard paper dimensions. Educational institutions benefit from its ability to handle oversized teaching materials, research documents, and administrative records while maintaining efficient throughput.
Technical Documentation Management
Digitize engineering drawings, architectural plans, and technical specifications for secure archival, revision tracking, and digital distribution to project teams and stakeholders.
Financial and Legal Digitization
Convert long-form financial reports, legal documents, and compliance records into searchable digital formats while maintaining document integrity and metadata preservation.
Physical Profile

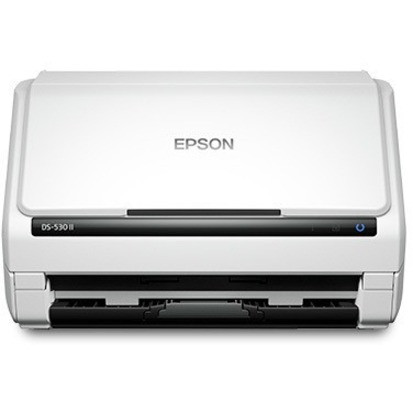

The DS-530 II features a compact white chassis measuring 6.9 inches high, 6.6 inches wide, and 11.6 inches deep, with an approximate weight of 8.1 pounds. This footprint allows placement on desktops or dedicated scanning stations without consuming excessive workspace. The white finish provides a clean, professional appearance that complements modern office environments while remaining resistant to showing wear during frequent use.
- Width
- 6.60" (167.64 mm)
- Depth
- 30-bit
- Height
- 6.90" (175.26 mm)
- Weight
- 8.10 lb (3674.10 g)
What's in the Box
The scanner package includes all necessary components for immediate deployment and operation.
Highlights
- Large format scanner handles documents up to 8.5" wide by 20 feet long
- 35 pages per minute scanning speed for both monochrome and color documents
- 50-sheet automatic document feeder with duplex scanning capability
- 600 dpi optical resolution with 30-bit color depth and 24-bit grayscale depth
- USB connectivity for simple plug-and-play installation
- Compatible with Windows 10/8.1/8/7 and macOS 10.10.x/10.15.x
- White chassis with compact footprint for desktop placement
- Energy Star certified for energy-efficient operation
- 3-year limited warranty for reliable long-term performance
- RoHS compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Epson Corporation |
| Manufacturer Part Number | B11B261202 |
| Brand Name | Epson |
| Product Model | DS-530 II |
| Product Name | DS-530 II Color Duplex Document Scanner |
| Packaged Quantity | 1 Each |
| Product Type | ADF Scanner |
| Technical Information | |
| Large Format | Yes |
| Optical Resolution (dpi) | 600 |
| Scan Color | Color,Grayscale,Monochrome |
| Color Depth | 30-bit |
| Grayscale Depth | 24-bit |
| Maximum Mono Scan Speed (ppm) | 35 |
| Maximum Color Scan Speed (ppm) | 35 |
| Maximum Mono Scan Speed (ipm) | 70 |
| Maximum Color Scan Speed (ipm) | 70 |
| Media Type | Business Card,ID Card,Plain Paper |
| Media Size | Custom Size - 8.50" (215.90 mm) x 20 ft (6096 mm) |
| ADF Capacity | 50 Sheets |
| Duplex Scanning | Yes |
| Scanning Modes | Duplex |
| Interfaces/Ports | |
| USB | Yes |
| Software | |
| Operating System Supported | Windows 10,Windows 8.1,Windows 8,Windows 7,macOS 10.10.x,macOS 10.15.x |
| Physical Characteristics | |
| Product Color | White |
| Height | 6.90" (175.26 mm) |
| Width | 6.60" (167.64 mm) |
| Depth | 11.60" (294.64 mm) |
| Weight (Approximate) | 8.10 lb (3674.10 g) |
| Miscellaneous | |
| Package Contents | DS-530 II Color Duplex Document Scanner Start Here Poster SuperSpeed USB Cable AC Adapter Power Cable |
| Energy Star | Yes |
| Country of Origin | Indonesia |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What types of documents can the Epson DS-530 II scanner handle?
The DS-530 II handles business cards, ID cards, plain paper, and large format documents up to 8.5 inches wide by 20 feet long. This includes technical drawings, architectural plans, financial reports, and other oversized materials that standard office scanners cannot accommodate. The 50-sheet automatic document feeder processes mixed media types without manual intervention between batches.
What is the maximum scanning speed of this scanner?
The scanner achieves 35 pages per minute for both monochrome and color documents, with a corresponding 70 images per minute rate when utilizing duplex scanning. This throughput enables efficient batch processing of documents while maintaining 600 dpi optical resolution across all media types handled by the automatic document feeder.
Does the DS-530 II support duplex scanning?
Yes, the scanner includes full duplex scanning capability, allowing simultaneous capture of both sides of documents during a single pass through the automatic document feeder. This feature doubles throughput for two-sided originals while maintaining the 35 ppm scanning speed for efficient processing of contracts, reports, and other double-sided materials.
What operating systems are compatible with this scanner?
The DS-530 II is compatible with Windows 10, Windows 8.1, Windows 8, Windows 7, macOS 10.10.x, and macOS 10.15.x. USB connectivity provides plug-and-play installation with standard drivers available from Epson, ensuring straightforward integration into existing IT environments without requiring specialized hardware or software configurations.
What is included in the package with the scanner?
The package includes the DS-530 II Color Duplex Document Scanner, a Start Here poster for setup guidance, a SuperSpeed USB cable for connectivity, an AC adapter for power, and a power cable. These components provide everything needed for immediate deployment and operation without requiring additional purchases for basic functionality.
What warranty coverage does Epson provide for this scanner?
Epson provides a 3-year limited warranty for the DS-530 II scanner, covering manufacturing defects and component failures under normal use conditions. This warranty period supports reliable long-term operation in professional environments where consistent scanning performance is essential for document management workflows and digitization projects.
