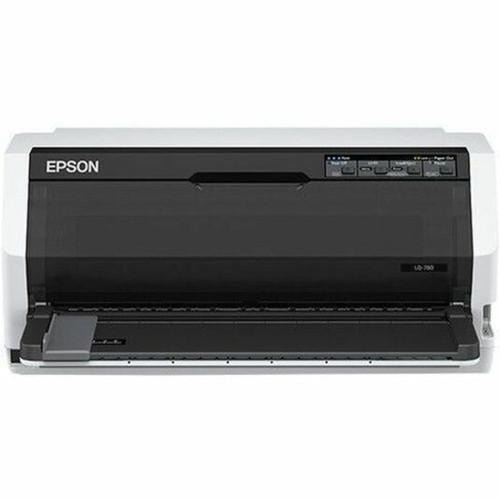

Epson C11CJ81201 LQ-780 24-pin Dot Matrix Printer - Monochrome - 487 cps - 106 Column - 6 Copies - USB & Parallel - Energy Star
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The LQ-780 employs impact dot matrix printing technology with a 24-pin print head that strikes an inked ribbon against paper to create characters and graphics. This mechanical approach enables the printer to produce up to six simultaneous copies using multipart forms, making it ideal for invoices, receipts, shipping documents, and other business forms requiring carbon or carbonless copies.
Print control is managed through Epson ESC/P2 and IBM 2390 Plus language emulations, providing compatibility with a wide range of business applications and legacy systems. The printer includes 13 standard character sets, 15 international character sets, and 8 barcode formats for flexible document creation. With a Mean Time Between Failures (MTBF) rating of 20,000 hours, the LQ-780 is built for continuous operation in demanding office environments.
Key Product Advantages
The Epson LQ-780 provides distinct advantages for businesses requiring reliable multipart form printing with legacy system compatibility. Its combination of impact printing technology, robust construction, and dual-interface connectivity addresses specific needs in accounting, logistics, manufacturing, and retail environments where carbon copy documents remain essential.
Multipart Form Capability
Produces up to six simultaneous copies using carbon or carbonless multipart forms, eliminating the need for separate photocopying or scanning of original documents.
- Ideal for invoices, packing slips, and receipts
- Maintains document integrity across all copies
- Reduces processing time for multi-copy documents
Extended Component Life
Engineered for durability with a print head rated for 400 million characters and ribbons lasting for 10 million characters, minimizing maintenance interruptions and consumable replacement costs.
- Reduces total cost of ownership
- Supports continuous operation cycles
- Maintains print quality over extended use
Legacy System Compatibility
Supports both parallel and USB interfaces along with IBM 2390 Plus emulation, ensuring connectivity with older business systems while maintaining compatibility with modern computers.
- Eases technology transition periods
- Protects existing hardware investments
- Simplifies integration into mixed environments
Deployment / Use Cases
The Epson LQ-780 is specifically designed for business environments that require reliable multipart form printing with consistent quality across all copies. Its impact printing technology and robust construction make it suitable for continuous operation in settings where document duplication is essential to daily operations.
In accounting and finance departments, the printer efficiently produces multi-copy invoices, statements, and financial reports. Logistics and warehouse operations benefit from its ability to generate shipping manifests, packing slips, and inventory documents with multiple copies for different stakeholders. Retail environments utilize the LQ-780 for receipt printing and transaction documentation that requires immediate duplicate copies for customers and records.
Physical Profile
The LQ-780 features a compact desktop design measuring 18.90 inches wide, 11.90 inches deep, and 8.30 inches high, with an approximate weight of 14.80 pounds. This form factor allows placement on standard office work surfaces or dedicated printer stands without requiring excessive space. The printer's construction supports reliable operation in business environments with typical office ambient conditions.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 8.30" (210.82 mm), 18.90" (480.06 mm), 11.90" (302.26 mm), 14.80 lb (6713.17 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 18.90" (480.06 mm)
- Depth
- 11.90" (302.26 mm)
- Height
- 8.30" (210.82 mm)
- Weight
- 14.80 lb (6713.17 g)
Highlights
- 24-pin dot matrix print head for sharp monochrome characters
- 487 characters per second maximum print speed
- Produces up to 6 simultaneous copies with multipart forms
- 106-column width accommodates standard business documents
- USB and parallel port connectivity options
- Compatible with Windows XP through Windows Server 2022
- Print head rated for 400 million character life
- Energy Star certified and RoHS compliant
- 2-year limited warranty coverage
- Supports envelope printing (No. 10 and No. 6 sizes)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Epson Corporation |
| Manufacturer Part Number | C11CJ81201 |
| Brand Name | Epson |
| Product Model | LQ-780 |
| Product Name | LQ-780 Impact Printer |
| Product Type | Dot Matrix Printer |
| Technical Information | |
| Connectivity Technology | Wired |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed (cps) | 487 |
| Number of Pins | 24-pin |
| Number of Columns | 106 |
| Maximum Number of Copies | 6 |
| Print Head Life | 400 million |
| Ribbon Life | 10 million |
| Print Direction | Bi-directional |
| Character Sets | 13 standard version,15 international character sets,8 barcode |
| Noise Levels | 59 dB |
| Interfaces/Ports | |
| Parallel Port | Yes |
| USB | Yes |
| Media Types & Handling | |
| Media Type | Sheet Paper (Single & Multi-layer) |
| Media Size | Envelope No. 10,Envelope No. 6 |
| Media Thickness | 7.09 mil (0.18 mm) |
| Fonts & Emulation | |
| Language Emulation | Epson ESC/P2,IBM 2390 Plus |
| Bitmap Fonts | Script,OCR-B,Draft,Roman,Sans Serif,Prestige,Courier,Orator-S,Script C,Orator |
| Software | |
| Operating System Supported | Windows® XP Professional x64 Edition SP2, Windows 11(64-bit), Windows Server® 2003, SP2-Windows Server 2022 (64-bit) |
| Reliability | |
| MTBF | 20000 Hour |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 8.30" (210.82 mm) |
| Width | 18.90" (480.06 mm) |
| Depth | 11.90" (302.26 mm) |
| Weight (Approximate) | 14.80 lb (6713.17 g) |
| Miscellaneous | |
| Platform Supported | PC |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What print, scan, copy, or multifunction capability is listed?
The LQ-780 employs impact dot matrix printing technology with a 24-pin print head that strikes an inked ribbon against paper to create characters and graphics. This mechanical approach enables the printer to produce up to six simultaneous copies using multipart forms, making it ideal for invoices, receipts, shipping documents, and other business forms requiring carbon or carbonless copies. Print control is managed through Epson ESC/P2 and IBM 2390 Plus language emulations, providing compatibility with a wide range of business applications and legacy systems. The printer includes 13 standard character sets, 15 international character sets, and 8 barcode formats for flexible document creation. With a Mean Time Between Failures (MTBF) rating of 20,000 hours, the LQ-780 is built for continuous operation in demanding office environments.
What sheet capacity, media size, or paper handling detail is listed?
The listed power specification is Envelope No. 10,Envelope No. 6, which helps position the unit for the right load level and installation role.
What duplex or duty-cycle detail is listed?
The LQ-780 employs impact dot matrix printing technology with a 24-pin print head that strikes an inked ribbon against paper to create characters and graphics. This mechanical approach enables the printer to produce up to six simultaneous copies using multipart forms, making it ideal for invoices, receipts, shipping documents, and other business forms requiring carbon or carbonless copies. Print control is managed through Epson ESC/P2 and IBM 2390 Plus language emulations, providing compatibility with a wide range of business applications and legacy systems. The printer includes 13 standard character sets, 15 international character sets, and 8 barcode formats for flexible document creation. With a Mean Time Between Failures (MTBF) rating of 20,000 hours, the LQ-780 is built for continuous operation in demanding office environments.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
What label, receipt, or business-print workflow detail is listed?
The LQ-780 employs impact dot matrix printing technology with a 24-pin print head that strikes an inked ribbon against paper to create characters and graphics. This mechanical approach enables the printer to produce up to six simultaneous copies using multipart forms, making it ideal for invoices, receipts, shipping documents, and other business forms requiring carbon or carbonless copies. Print control is managed through Epson ESC/P2 and IBM 2390 Plus language emulations, providing compatibility with a wide range of business applications and legacy systems. The printer includes 13 standard character sets, 15 international character sets, and 8 barcode formats for flexible document creation. With a Mean Time Between Failures (MTBF) rating of 20,000 hours, the LQ-780 is built for continuous operation in demanding office environments.
What performance, throughput, or capacity detail stands out?
The listed power specification is 487, which helps position the unit for the right load level and installation role.
