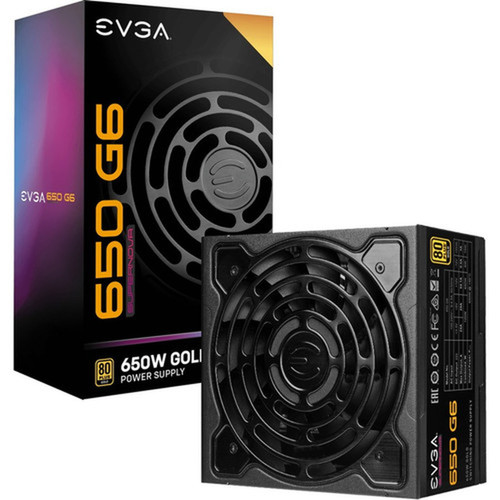

EVGA 650 W Gold Series Internal Switching Power Supply Efficient Performance Output Input AC DC V 220-G6-0650-X1
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Specification Compliance: ATX
Efficiency: 91%
Number of Fans: 1
Modular: Yes
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 3.3 V DC,5 V DC,12 V DC,-12 V DC
Output Voltage Detail: 3.3 V DC @ 24 A,5 V DC @ 24 A,12 V DC @ 54.1 A,-12 V DC @ 0.5A,5 V DC @ 3 A
Output Current: 24 A,54.10 A,500 mA,3 A
Output Power: 650 W
Form Factor: Internal
Height: 3.39" (86 mm)
Width: 5.91" (150 mm)
Depth: 5.51" (140 mm)
Weight (Approximate): 2.72 kg
Country of Origin: Taiwan
Environmentally Friendly: Yes
Energy Efficiency Certification: 80 Plus Gold
Energy Efficiency Compliance: Energy-related Products Directive Lot 3 (ErP Lot 3)
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 10 Year
[custom-specifications]
| Specifications | |
| Manufacturer | EVGA Corporation |
| Manufacturer Part Number | 220G60650X1 |
| Manufacturer Website Address | http://www.evga.com |
| Brand Name | EVGA |
| Product Line | SuperNOVA |
| Product Model | 650 G6 |
| Product Name | 650W Gold Switching Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX |
| Efficiency | 91% |
| Number of Fans | 1 |
| Modular | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC,5 V DC,12 V DC,-12 V DC |
| Output Voltage Detail | 3.3 V DC @ 24 A,5 V DC @ 24 A,12 V DC @ 54.1 A,-12 V DC @ 0.5A,5 V DC @ 3 A |
| Output Current | 24 A,54.10 A,500 mA,3 A |
| Output Power | 650 W |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.39" (86 mm) |
| Width | 5.91" (150 mm) |
| Depth | 5.51" (140 mm) |
| Weight (Approximate) | 2.72 kg |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 10 Year |
[/custom-specifications]
