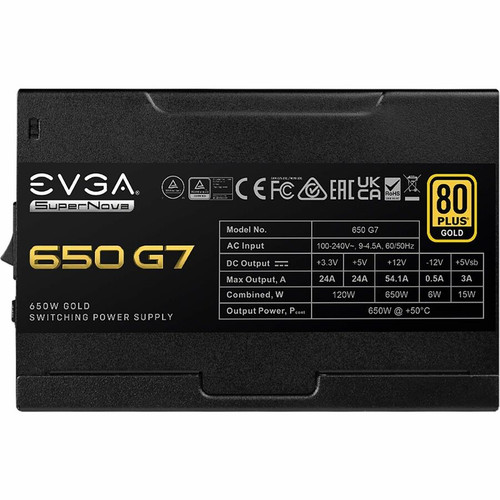

EVGA SuperNOVA Internal Power Supply Multi Output 120 V AC 230 Input 3.3 5 12 SB DC W 220-G7-0650-X1
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- SuperNOVA 650W Power Supply
- Power ON Self Tester
Specification Compliance: ATX12V,EPS12V
Efficiency: 93%
Power Factor Correction (PFC): Active
Number of Fans: 1
Protection Type: Over Voltage,Under Voltage,Over Current,Over Power,Over Temperature,Short Circuit
Modular: Yes
ATI CrossFire Supported: Yes
NVIDIA SLI Supported: Yes
Features: Low Noise
MTBF: 100000 Hour
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB
Output Voltage Detail: 3.3 V DC @ 24 A,5 V DC @ 24 A,12 V DC @ 54.1 A,-12 V DC @ 0.5 A,5 V DC @ 3 A
Output Current: 24 A,54.10 A,500 mA,3 A
Output Power: 650 W
Form Factor: Internal
Height: 3.35" (85 mm)
Width: 5.91" (150 mm)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 122°F (50°C)
Package Contents:
Environmentally Friendly: Yes
Energy Efficiency Certification: 80 Plus Gold
Energy Efficiency Compliance: Energy-related Products Directive Lot 3 (ErP Lot 3)
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 10 Year
[custom-specifications]
| Specifications | |
| Manufacturer | EVGA Corporation |
| Manufacturer Part Number | 220G70650X1 |
| Manufacturer Website Address | http://www.evga.com |
| Brand Name | EVGA |
| Product Line | SuperNOVA |
| Product Name | SuperNOVA 650W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V,EPS12V |
| Efficiency | 93% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Protection Type | Over Voltage,Under Voltage,Over Current,Over Power,Over Temperature,Short Circuit |
| Modular | Yes |
| ATI CrossFire Supported | Yes |
| NVIDIA SLI Supported | Yes |
| Features | Low Noise |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB |
| Output Voltage Detail | 3.3 V DC @ 24 A,5 V DC @ 24 A,12 V DC @ 54.1 A,-12 V DC @ 0.5 A,5 V DC @ 3 A |
| Output Current | 24 A,54.10 A,500 mA,3 A |
| Output Power | 650 W |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.35" (85 mm) |
| Width | 5.91" (150 mm) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 10 Year |
