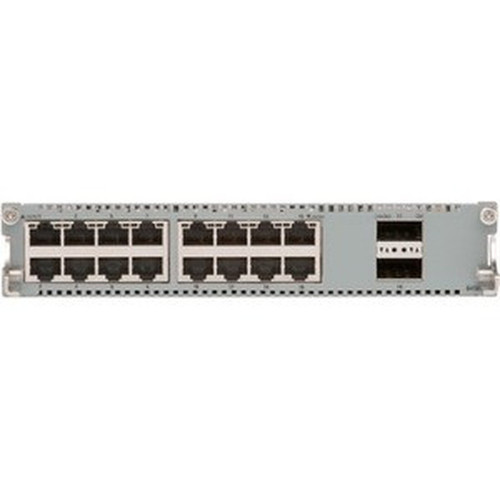

Extreme Networks EC8404006-E6GS 8418XTQ Expansion Module - 16-Port RJ-45 10GBase-T - 2 x QSFP+ Slots - VSP 8400 Compatible
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The 8418XTQ module is built around 10GBase-T technology, which delivers 10 Gbps data transfer rates over twisted-pair copper cabling. This eliminates the need for expensive fiber optic cabling for short-reach connections, reducing deployment costs while maintaining high performance. The module also supports 40GBase-X via its QSFP+ slots, enabling 40 Gbps uplinks for aggregation or spine-leaf architectures.
Each of the 16 RJ-45 ports operates at 10 Gbps, providing an aggregate bandwidth of 160 Gbps for downstream connections. The two QSFP+ slots can be used for 40 Gbps fiber uplinks or can be broken out into 4x10 Gbps links using appropriate optics, offering additional flexibility. The module is hot-pluggable into compatible VSP 8400 chassis slots, allowing for seamless expansion without network downtime.
Key Product Advantages
This expansion module provides significant advantages for network architects seeking to balance performance, cost, and flexibility. Its support for both copper and fiber media allows organizations to leverage existing cabling investments while enabling high-speed uplinks for future growth.
Cost-Effective 10GbE Deployment
By utilizing 10GBase-T over twisted-pair cabling, the module reduces the need for expensive fiber optic cabling and transceivers for connections within 100 meters. This makes 10 Gigabit Ethernet more accessible for server connectivity and top-of-rack switching.
- Uses standard Cat6a/7 cabling
- Up to 100-meter reach over copper
- Lower cost per port compared to fiber SFP+
High-Density Port Expansion
With 16 RJ-45 ports in a single module, the 8418XTQ maximizes port density within the VSP 8400 chassis. This reduces the number of modules required for high-port-count deployments, simplifying management and reducing power consumption.
- 16 ports in one slot
- Reduces module count in chassis
- Consolidates copper connectivity
Flexible Uplink Options
The two QSFP+ slots provide multiple configuration options. They can be used for 40 Gbps fiber uplinks to core switches, or broken out into 4x10 Gbps links using QSFP+ to SFP+ breakout cables, providing additional 10GbE ports.
- 40 Gbps uplink capability
- Breakout to 4x10 Gbps options
- Future-proof for higher speeds
Deployment / Use Cases
The Extreme Networks 8418XTQ Expansion Module is ideal for environments requiring high-density 10GbE server connectivity with flexible uplink options. It serves as a cost-effective solution for modern data centers, enterprise networks, and cloud infrastructure deployments.
In data center top-of-rack (ToR) deployments, the module can connect directly to servers using 10GBase-T over copper, while using the QSFP+ slots for 40 Gbps uplinks to spine switches. This creates a high-performance leaf-spine architecture with reduced cabling complexity. For enterprise campus networks, it provides 10GbE connectivity for high-performance workstations, network storage, and virtualization hosts, with fiber uplinks to the network core.
Data Center Server Connectivity
Connect rack servers directly to the VSP 8400 using cost-effective copper cabling, with high-speed fiber uplinks to aggregation switches. This simplifies cabling while maintaining performance for virtualized environments and storage networks.
High-Density Access Layer
Deploy in wiring closets or access layers to provide 10GbE connectivity to multiple devices. The copper ports support Power over Ethernet (PoE) endpoints when used with appropriate switches, while the fiber uplinks ensure sufficient backhaul capacity.
Highlights
- 16 RJ-45 10GBase-T ports for high-density copper connectivity
- 2 QSFP+ slots for 40 Gbps fiber uplinks or breakout configurations
- 10GBase-T technology supports up to 10 Gbps over twisted-pair cabling
- Compatible with Extreme Networks Virtual Services Platform 8400 chassis
- Supports both optical fiber and twisted pair media types
- Hot-pluggable design for easy installation and maintenance
- TAA compliant for government and public sector deployments
- Manufactured in Taiwan with quality assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Extreme Networks, Inc |
| Manufacturer Part Number | EC8404006-E6GS |
| Brand Name | Extreme Networks |
| Product Model | 8418XTQ |
| Product Name | 8418XTQ Expansion Module |
| Product Type | Expansion Module |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 16 |
| Connector Type | RJ-45 |
| Interfaces/Ports Details | 16 x RJ-45 10GBase-T LAN |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet,40 Gigabit Ethernet |
| Network Technology | 10GBase-T,40GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | QSFP+ |
| Miscellaneous | |
| Compatibility | Virtual Services Platform 8400 |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
FAQ
What is the main purpose of this expansion module?
The Extreme Networks 8418XTQ Expansion Module adds 16 RJ-45 10GBase-T ports and 2 QSFP+ uplink slots to compatible Virtual Services Platform 8400 chassis. It's designed to provide high-density 10 Gigabit Ethernet connectivity over copper cabling while offering flexible 40GbE fiber uplink options for network aggregation.
What types of cabling does this module support?
This module supports both optical fiber and twisted pair copper cabling. The 16 RJ-45 ports use 10GBase-T technology over Category 6a or 7 twisted-pair cables for distances up to 100 meters. The two QSFP+ slots support fiber optic connections using appropriate QSFP+ transceivers for 40 Gigabit Ethernet.
What switch chassis is this module compatible with?
This expansion module is specifically designed for the Extreme Networks Virtual Services Platform 8400 chassis. It slots into the VSP 8400's expansion module bays and is managed through the chassis' operating system. It is not compatible with other switch models or chassis from Extreme Networks or other manufacturers.
Can the QSFP+ slots be used for 10 Gigabit Ethernet connections?
Yes, the QSFP+ slots can support 10 Gigabit Ethernet connections through breakout configurations. Using QSFP+ to 4xSFP+ breakout cables or appropriate transceivers, each QSFP+ port can be split into four 10GbE connections. This provides additional flexibility when you need more 10GbE ports beyond the 16 built-in RJ-45 connections.
