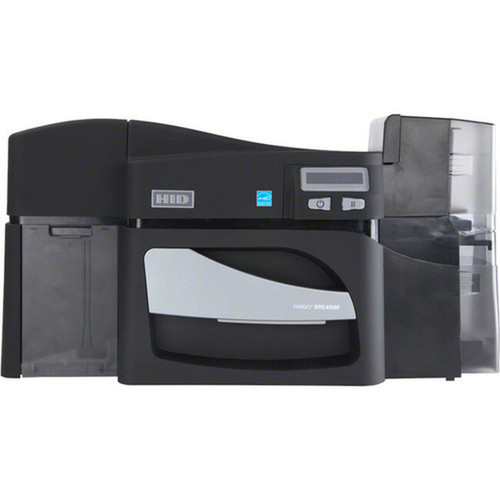

Fargo 055500 DTC4500E Desktop Dye Sublimation/Thermal Transfer Card Printer - Color - Fast Ethernet - USB - LCD Display - 300 dpi - 6/16 Second Print
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Fargo card printer operates on dye sublimation and thermal transfer technologies, producing professional-quality cards with precise color registration and sharp text. The 32 MB standard memory ensures smooth processing of complex card designs and graphics, supporting efficient workflow integration.
Print speeds are optimized for typical card production workflows: monochrome cards complete in 6 seconds, while full-color cards require 16 seconds. The maximum print width of 2.11" (53.59 mm) accommodates standard card dimensions, with precise media alignment maintained through the auto-feed mechanism that handles cards up to 40 mil thickness.
Connectivity options include both USB for direct computer connection and Fast Ethernet for network sharing, enabling flexible deployment in office environments. The printer supports PC and Mac platforms through included software, ensuring compatibility with diverse IT infrastructures.
Key Product Advantages
The DTC4500E combines professional card printing capabilities with desktop convenience, offering organizations an affordable solution for secure identification needs. The dual-sided lamination feature provides both front and back protection, creating durable cards that withstand daily use while maintaining visual quality.
Network-Ready Operation
Built-in Fast Ethernet connectivity allows multiple users to share the printer across your network, eliminating the need for dedicated workstation connections and simplifying deployment in multi-user environments.
- Fast Ethernet port
- Network sharing capability
- Simplified multi-user access
Versatile Media Support
The printer accepts various card types including PVC, polyester, adhesive-backed, and optical media cards in standard CR-80 and CR79 sizes, providing flexibility for different identification requirements and security levels.
- PVC cards
- Polyester cards
- Adhesive-backed cards
- Optical media cards
Deployment / Use Cases
The Fargo DTC4500E is ideally suited for organizations requiring professional identification cards without the complexity of industrial printing systems. Its desktop footprint and straightforward operation make it accessible for administrative staff with minimal training, while the network connectivity enables centralized card production.
Educational institutions can utilize this printer for student and faculty ID cards that incorporate photos, barcodes, and magnetic stripes. Corporate environments benefit from employee badges that include security features and access control elements. Healthcare facilities, government offices, and membership-based organizations can produce durable identification that meets their specific security and durability requirements.
Physical Profile
Designed for desktop placement, the DTC4500E measures 18.70" wide by 9.80" high by 9.20" deep, fitting comfortably on standard office work surfaces. The 11 lb weight provides stability during operation while remaining portable enough for relocation between departments or facilities as needed. The compact form factor maximizes workspace efficiency while providing full card printing capabilities.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 9.80" (248.92 mm), 2.11" (53.59 mm), 9.20" (233.68 mm), 11 lb (4989.52 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.11" (53.59 mm)
- Depth
- 9.20" (233.68 mm)
- Height
- 9.80" (248.92 mm)
- Weight
- 11 lb (4989.52 g)
What's in the Box
The Fargo DTC4500E package includes everything needed for immediate card production setup and operation.
Highlights
- Desktop dye sublimation/thermal transfer card printer with color and monochrome output
- 6-second mono and 16-second color print speeds for efficient card production
- 300 dpi maximum resolution delivers crisp text and detailed images
- Dual-sided lamination protects cards and extends their usable lifespan
- Fast Ethernet connectivity enables network sharing across multiple users
- USB interface for direct computer connection when needed
- LCD display provides clear status information and configuration access
- Auto-feed media handling for CR-80 and CR79 standard card sizes
- Supports PVC, polyester, adhesive-backed, and optical media cards
- 3-year limited warranty with Energy Star certified operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASSA ABLOY |
| Manufacturer Part Number | 055500 |
| Brand Name | Fargo |
| Product Series | DTC4000 |
| Product Model | DTC4500E |
| Product Name | DTC4500E ID Card Printer / Encoder Dual Sided |
| Product Type | Dye Sublimation/Thermal Transfer Printer |
| Technical Information | |
| Recommended Use | Card Print |
| Print Color Capability | Color |
| Maximum Mono Print Speed | 6 Second |
| Maximum Color Print Speed | 16 Second |
| Maximum Print Resolution (dpi) | 300 |
| Maximum Print Width | 2.11" (53.59 mm) |
| Application/Usage | Desktop |
| Features | Dual Sided Laminator |
| Memory | |
| Standard Memory | 32 MB |
| Interfaces/Ports | |
| USB | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Display & Graphics | |
| Display Screen | Yes |
| Display Screen Type | LCD |
| Media Types & Handling | |
| Media Type | Adhesive Backed Card,PVC Card,Polyester Card,Optical Media Card |
| Media Size | 2.13" (53.97 mm) x 3.38" (85.73 mm) - CR-80 Card,2.06" (52.40 mm) x 3.31" (84.15 mm) - CR79 Card |
| Media Load Type | Auto Feed |
| Media Thickness | 40 mil (1.016000 mm) |
| Power Description | |
| Power Source | AC Supply |
| Input Voltage | 110 V AC,220 V AC |
| Physical Characteristics | |
| Height | 9.80" (248.92 mm) |
| Width | 18.70" (474.98 mm) |
| Depth | 9.20" (233.68 mm) |
| Weight (Approximate) | 11 lb (4989.52 g) |
| Miscellaneous | |
| Package Contents | DTC4500E ID Card Printer / Encoder Dual Sided Software CD |
| Platform Supported | PC,Mac |
| Certifications & Standards | UL 60950-2 CSA C22.2 (60950-07) CE EMC FCC Class A CE (EN 55022 Class A, EN 55024) CCC BSMI KC |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Country of Origin | Switzerland |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What print, scan, copy, or multifunction capability is listed?
This Fargo card printer operates on dye sublimation and thermal transfer technologies, producing professional-quality cards with precise color registration and sharp text. The 32 MB standard memory ensures smooth processing of complex card designs and graphics, supporting efficient workflow integration. Print speeds are optimized for typical card production workflows: monochrome cards complete in 6 seconds, while full-color cards require 16 seconds. The maximum print width of 2.11" (53.59 mm) accommodates standard card dimensions, with precise media alignment maintained through the auto-feed mechanism that handles cards up to 40 mil thickness.
What sheet capacity, media size, or paper handling detail is listed?
2.13" (53.97 mm) x 3.38" (85.73 mm) - CR-80 Card,2.06" (52.40 mm) x 3.31" (84.15 mm) - CR79 Card.
What duplex or duty-cycle detail is listed?
This Fargo card printer operates on dye sublimation and thermal transfer technologies, producing professional-quality cards with precise color registration and sharp text. The 32 MB standard memory ensures smooth processing of complex card designs and graphics, supporting efficient workflow integration. Print speeds are optimized for typical card production workflows: monochrome cards complete in 6 seconds, while full-color cards require 16 seconds. The maximum print width of 2.11" (53.59 mm) accommodates standard card dimensions, with precise media alignment maintained through the auto-feed mechanism that handles cards up to 40 mil thickness.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
What label, receipt, or business-print workflow detail is listed?
This Fargo card printer operates on dye sublimation and thermal transfer technologies, producing professional-quality cards with precise color registration and sharp text. The 32 MB standard memory ensures smooth processing of complex card designs and graphics, supporting efficient workflow integration. Print speeds are optimized for typical card production workflows: monochrome cards complete in 6 seconds, while full-color cards require 16 seconds. The maximum print width of 2.11" (53.59 mm) accommodates standard card dimensions, with precise media alignment maintained through the auto-feed mechanism that handles cards up to 40 mil thickness.
What deployment or installation detail is listed?
The Fargo DTC4500E is ideally suited for organizations requiring professional identification cards without the complexity of industrial printing systems. Its desktop footprint and straightforward operation make it accessible for administrative staff with minimal training, while the network connectivity enables centralized card production. Educational institutions can utilize this printer for student and faculty ID cards that incorporate photos, barcodes, and magnetic stripes. Corporate environments benefit from employee badges that include security features and access control elements. Healthcare facilities, government offices, and membership-based organizations can produce durable identification that meets their specific security and durability requirements.
What performance, throughput, or capacity detail stands out?
The listed power specification is 6 Second, which helps position the unit for the right load level and installation role.
