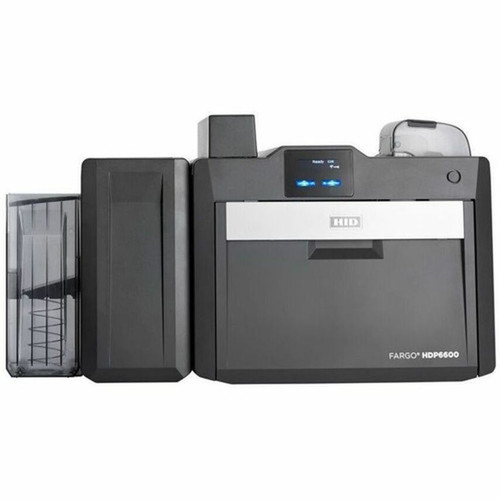

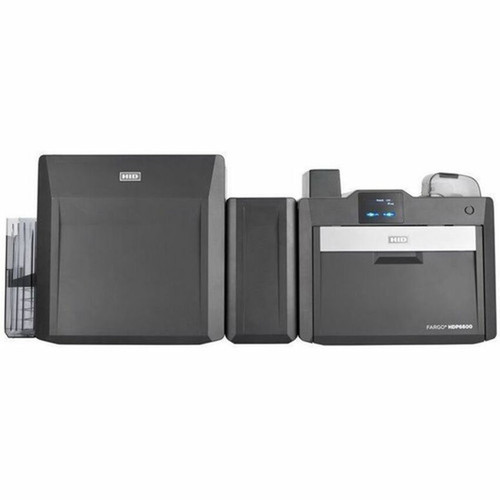

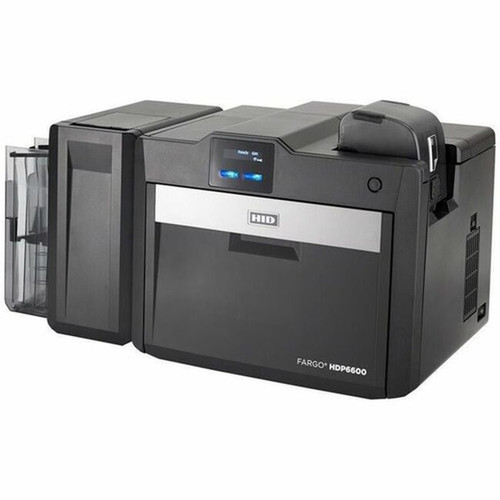

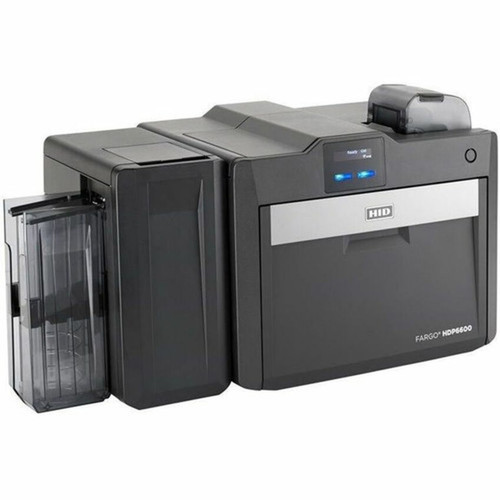

Fargo 094057 HDP6600 Desktop Card Printer - Color - Single Sided - 16 in/s - USB/Ethernet - OLED Display
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The HDP6600 operates with a 600 dpi maximum print resolution, ensuring detailed graphics and text on various card media. Its color capability utilizes yellow, magenta, and cyan printing colors to produce vibrant, professional-grade cards. The printer supports a wide range of media types including smart cards, ABS, PVC, PET, PETG, proximity cards, magnetic stripe cards, and polycarbonate cards.
With 1 GB of standard memory, the device handles complex print jobs efficiently. The wired connectivity suite includes USB for direct computer connections and Ethernet for network sharing, allowing multiple users to access the printer resources.
This section brings together practical product details such as Recommended Use, Print Color Capability, Printing Capability, Standard Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The HDP6600 combines speed, versatility, and ease of use in a desktop form factor. Its integrated encoding features—magnetic stripe encoder, contact smart card encoder, contactless smart card encoder, and card flattener module—enable complete card personalization in a single pass, reducing handling time and increasing throughput.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Multi-Encoding Capability, Network-Ready Design.
Multi-Encoding Capability
Supports magnetic stripe, contact smart card, and contactless smart card encoding, allowing for comprehensive card personalization.
- Magnetic Stripe Encoder
- Contact Smart Card Encoder
- Contactless Smart Card Encoder
- Card Flattener Module
Network-Ready Design
Ethernet connectivity enables shared access across workgroups, optimizing resource utilization and workflow efficiency.
Deployment / Use Cases
This printer is ideal for small to medium-sized businesses, educational institutions, and organizations that require reliable card printing for identification, access control, or membership purposes. Its desktop design makes it suitable for office environments where space is limited but professional output is essential.
Common applications include employee ID badges, student identification cards, library membership cards, and visitor passes. The support for various card types and encoding technologies allows customization based on specific security and functional requirements.
This section brings together practical product details such as Recommended Use, Print Color Capability, Printing Capability, Standard Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Office ID Solutions
Produce professional employee and visitor identification cards with color photos and encoded data for access control.
Educational Institutions
Create student ID cards with encoding for library access, meal plans, or campus security systems.
Physical Profile
Measuring 12.99 inches in height, 14.49 inches in width, and 12.01 inches in depth, the HDP6600 maintains a compact desktop footprint. Weighing approximately 20.94 pounds, it offers stability during operation while remaining manageable for placement in various office configurations. The printer operates within a temperature range of 65°F to 90°F and relative humidity of 20% to 80%, suitable for standard office environments.
- Width
- 14.49" (368 mm)
- Depth
- 12.01" (305 mm)
- Height
- 12.99" (330 mm)
- Weight
- 20.94 lb (9500 g)
Highlights
- Color card printing at 16 inches per second
- 600 dpi maximum print resolution for crisp output
- Supports smart cards, PVC, PET, polycarbonate and more
- Integrated magnetic stripe and smart card encoders
- USB and Ethernet connectivity options
- OLED display for status monitoring
- Compatible with Windows 7 through Windows 10 and Server editions
- Compact desktop design with 20.94 lb weight
- 3-year limited warranty for peace of mind
- UL, CE, FCC, and other international certifications
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASSA ABLOY |
| Manufacturer Part Number | 094057 |
| Brand Name | Fargo |
| Product Model | HDP6600 |
| Product Name | HDP6600 Card Printer & Encoder |
| Product Type | Dye Sublimation/Thermal Transfer Printer |
| Technical Information | |
| Recommended Use | Card Print |
| Print Color Capability | Color |
| Printing Capability | Single Sided |
| Maximum Color Print Speed | 16 in/s (406.40 mm/s) |
| Maximum Print Resolution (dpi) | 600 |
| Connectivity Technology | Wired |
| Printing Color | Yellow,Magenta,Cyan |
| Application/Usage | Desktop |
| Features | Magnetic Stripe Encoder,Contact Smart Card Encoder,Contactless Smart Card Encoder,Card Flattener Module |
| Memory | |
| Standard Memory | 1 GB |
| Interfaces/Ports | |
| USB | Yes |
| Network & Communication | |
| Network Ready | Yes |
| Ethernet | Yes |
| Display & Graphics | |
| Display Screen | Yes |
| Display Screen Type | OLED |
| Media Types & Handling | |
| Media Type | Smart Card,ABS Card,PVC Card,PET Card,PETG Card,Proximity Card,Magnetic Stripe Card,Polycarbonate Card |
| Media Size | 3.38" (85.85 mm) x 2.12" (53.85 mm) - CR-80 Card |
| Media Thickness | 40 mil (1.016000 mm) |
| Software | |
| Operating System Supported | Microsoft: Windows 10 Windows 8.1 Windows 8 Windows 7 Windows Server 2016 Windows Server 2012 Windows Server 2012 R2 Windows Server 2008 Windows Server 2008 R2 |
| Power Description | |
| Power Source | AC Supply |
| Power Consumption | 2.50 A |
| Environmental Conditions | |
| Operating Temperature | 65°F (18.3°C) - 90°F (32.2°C) |
| Operating Relative Humidity | 20% - 80% |
| Physical Characteristics | |
| Height | 12.99" (330 mm) |
| Width | 14.49" (368 mm) |
| Depth | 12.01" (305 mm) |
| Weight (Approximate) | 20.94 lb (9500 g) |
| Miscellaneous | |
| Platform Supported | PC |
| Certifications & Standards | UL CE FCC BSMI MIC EAC RCM CCC KCC S-Mark |
| Environmentally Friendly | Yes |
| Environmental Certification | GreenCircle |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What print, scan, copy, or multifunction capability is listed?
The HDP6600 operates with a 600 dpi maximum print resolution, ensuring detailed graphics and text on various card media. Its color capability utilizes yellow, magenta, and cyan printing colors to produce vibrant, professional-grade cards. The printer supports a wide range of media types including smart cards, ABS, PVC, PET, PETG, proximity cards, magnetic stripe cards, and polycarbonate cards. With 1 GB of standard memory, the device handles complex print jobs efficiently. The wired connectivity suite includes USB for direct computer connections and Ethernet for network sharing, allowing multiple users to access the printer resources.
What sheet capacity, media size, or paper handling detail is listed?
3.38" (85.85 mm) x 2.12" (53.85 mm) - CR-80 Card.
What duplex or duty-cycle detail is listed?
The HDP6600 operates with a 600 dpi maximum print resolution, ensuring detailed graphics and text on various card media. Its color capability utilizes yellow, magenta, and cyan printing colors to produce vibrant, professional-grade cards. The printer supports a wide range of media types including smart cards, ABS, PVC, PET, PETG, proximity cards, magnetic stripe cards, and polycarbonate cards. With 1 GB of standard memory, the device handles complex print jobs efficiently. The wired connectivity suite includes USB for direct computer connections and Ethernet for network sharing, allowing multiple users to access the printer resources.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
What label, receipt, or business-print workflow detail is listed?
The HDP6600 operates with a 600 dpi maximum print resolution, ensuring detailed graphics and text on various card media. Its color capability utilizes yellow, magenta, and cyan printing colors to produce vibrant, professional-grade cards. The printer supports a wide range of media types including smart cards, ABS, PVC, PET, PETG, proximity cards, magnetic stripe cards, and polycarbonate cards. With 1 GB of standard memory, the device handles complex print jobs efficiently. The wired connectivity suite includes USB for direct computer connections and Ethernet for network sharing, allowing multiple users to access the printer resources.
What deployment or installation detail is listed?
This printer is ideal for small to medium-sized businesses, educational institutions, and organizations that require reliable card printing for identification, access control, or membership purposes. Its desktop design makes it suitable for office environments where space is limited but professional output is essential. Common applications include employee ID badges, student identification cards, library membership cards, and visitor passes. The support for various card types and encoding technologies allows customization based on specific security and functional requirements.
What performance, throughput, or capacity detail stands out?
The listed power specification is 16 in/s (406.40 mm/s), which helps position the unit for the right load level and installation role.
