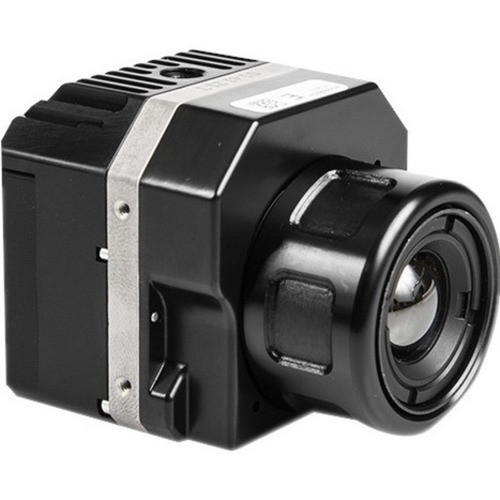

FLIR 436-0017-00S Vue Pro HD Color Surveillance Camera - 1280 x 720 Fixed Lens Thermal Imaging
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the FLIR Vue Pro is an Uncooled VOx Microbolometer thermal sensor that supports color imaging with a thermal video resolution of 640 × 512 pixels. The camera features a 45° × 37° field of view through its fixed lens, which has a maximum thermal focal length of 0.51 inches (13 mm).
Video output is compatible with both NTSC and PAL signal formats, providing flexibility for international deployment. The camera operates on DC power with input voltages of 4.8V or 6V, and it maintains functionality across a wide temperature range from -4°F to 122°F (-20°C to 50°C).
This section brings together practical product details such as HD Recording, Recording Formats, Thermal Image Sensor Type, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Vue Pro stands out with its integrated MAVLink compatibility and PWM control capabilities, allowing seamless integration with drone control systems for in-flight camera management. This enables real-time adjustment of camera functions without requiring ground-based computer intervention.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include On-Board Recording, Easy Configuration.
On-Board Recording
Records digital video and still imagery directly to removable micro-SD card storage, eliminating data loss from transmission issues during flight operations.
- Local storage capability
- Removable media
- Transmission loss protection
Easy Configuration
Configure color palettes, image optimization features, and PWM inputs through the FLIR UAS mobile app, reducing field setup complexity.
- Mobile app control
- Field-configurable settings
- No computer required
Deployment / Use Cases

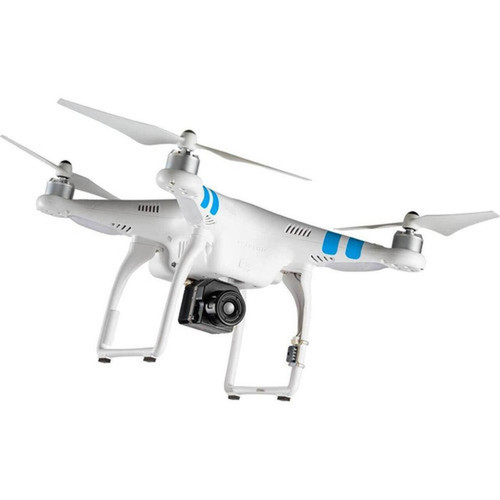

The FLIR Vue Pro is engineered for drone-based surveillance applications where thermal imaging provides critical operational advantages. Its lightweight design and robust construction make it suitable for extended flight operations in various environmental conditions.
Primary use cases include search and rescue missions where thermal detection can identify heat signatures in low-visibility scenarios, firefighting response support through smoke penetration imaging, and industrial inspection applications for identifying thermal anomalies in infrastructure and equipment.
This section brings together practical product details such as HD Recording, Recording Formats, Thermal Image Sensor Type, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Search and Rescue
Thermal imaging capabilities enable detection of human heat signatures in challenging environments, supporting life-saving operations during emergency responses.
Industrial Inspection
Identify thermal anomalies in electrical systems, mechanical equipment, and building infrastructure from aerial perspectives, reducing inspection time and improving safety.
Physical Profile
Weighing just 113.4 grams, the Vue Pro maintains a compact form factor optimized for drone payload integration. The camera's lightweight construction minimizes impact on flight duration while providing professional imaging capabilities. The fixed lens design ensures consistent optical performance without moving parts that could fail in demanding operational environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 113.4 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 113.4 g
- Length
- 0.51" (13 mm)
Highlights
- HD color surveillance camera with 1280 x 720 maximum video resolution
- Uncooled VOx Microbolometer thermal sensor for color imaging
- 45° × 37° field of view with fixed lens configuration
- Records to removable micro-SD card for local storage
- MAVLink integration for image geo-tagging and drone system compatibility
- PWM controls via accessory port for in-flight camera management
- Configurable through FLIR UAS mobile app without field computers
- Operates from -4°F to 122°F (-20°C to 50°C) temperature range
- Lightweight 113.4-gram design for drone payload optimization
- 1-year limited warranty for product protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | FLIR Systems GmbH |
| Manufacturer Part Number | 436001700S |
| Brand Name | FLIR |
| Product Line | Vue Pro |
| Product Name | Vue Pro Surveillance Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Display & Graphics | |
| Thermal Image Sensor Type | Uncooled VOx Microbolometer |
| Color Supported | Color |
| Field of View | 45° × 37° |
| Video | |
| Maximum Video Resolution | 1280 x 720 |
| Thermal Video Resolution | 640 × 512 |
| Video Signal Format | NTSC,PAL |
| Lens | |
| Lens Type | Fixed |
| Lens Included | Yes |
| Maximum Thermal Focal Length | 0.51" (13 mm) |
| Network & Communication | |
| Connectivity Technology | Wired |
| Storage | |
| Storage Type | Memory Card |
| Power Description | |
| Input Voltage | 4.8 V DC,6 V DC |
| Power Source Type | DC |
| Physical Characteristics | |
| Weight (Approximate) | 113.4 g |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Miscellaneous | |
| Features | SD Card Local Storage |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the maximum video resolution of the FLIR Vue Pro camera?
The FLIR Vue Pro captures video at up to 1280 x 720 resolution in HD format. This provides clear, detailed imagery suitable for surveillance and inspection applications where visual clarity is essential for operational decision-making.
Does this camera support thermal imaging?
Yes, the Vue Pro features an Uncooled VOx Microbolometer thermal sensor that supports color imaging with a thermal video resolution of 640 × 512 pixels. This enables detection of heat signatures and thermal anomalies in various environmental conditions.
How does the camera store recorded video and images?
The camera records digital video and still imagery directly to a removable micro-SD card. This local storage approach ensures data integrity by eliminating potential transmission loss during drone operations, with the removable media allowing easy data retrieval.
What drone integration capabilities does the Vue Pro offer?
The camera features MAVLink compatibility for image geo-tagging and includes an accessory port that supports PWM controls. This allows integration with your drone's control system for managing camera functions during flight operations without requiring separate ground control.
What is the field of view for this surveillance camera?
The FLIR Vue Pro provides a 45° × 37° field of view through its fixed lens configuration. This viewing angle offers balanced coverage for surveillance applications, capturing sufficient area detail while maintaining image clarity across the frame.
What temperature range can this camera operate within?
The Vue Pro maintains functionality across a wide operating temperature range from -4°F to 122°F (-20°C to 50°C). This environmental tolerance ensures reliable performance in various climatic conditions, from cold search and rescue scenarios to warm industrial inspection environments.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
