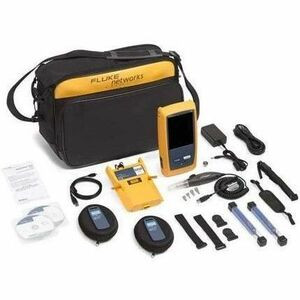

Fluke Networks OptiFiber Pro OTDR OFP-MM Cable/Network Tester - Network Testing, OTDR Testing, Cable Testing - USB - Optical Fiber - - (OFP-MM)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Device Function: Network Testing,OTDR Testing,Cable Testing
USB: Yes
Media Type Supported: Optical Fiber
Battery Size Supported: 7.2V
Battery Rechargeable: Yes
Battery Life: 8 Hour
Battery Chemistry: Lithium Ion (Li-Ion)
Height: 2.62" (66.55 mm)
Width: 5.25" (133.35 mm)
Depth: 11" (279.40 mm)
Weight (Approximate): 2.82 lb (1280 g)
- Multiple wavelengths (850, 1300, 1310,1490, 1550 and 1625 nm) support LAN, datacenters, PON, FTTx and outside plant applications.
- Automated setup senses fiber characteristics and sets measurement parameters
- Manual Expert mode allows simple adjustments to automated settings for detailed testing.
- EventMap automatically identifies events including connectors, splices, bends, and splitters
- Gesture-based interface allows fast, in-depth trace analysis
- SmartLoop™ OTDR technology tests two fibers in a single test eliminating the need to travel to the far end of the connection to perform tests.
- Instantaneous on-board bi-directional averaging results included as standard
- Integrates with LinkWare™ Live to manage jobs and testers from any smart device.
- Future-ready VersivTM design supports copper certification to Category 8, fiber loss and inspection.
[custom-specifications]
| Specifications | |
| Manufacturer | Fluke Networks |
| Manufacturer Part Number | OFP-MM |
| Manufacturer Website Address | http://www.flukenetworks.com |
| Brand Name | Fluke Networks |
| Product Line | OptiFiber Pro OTDR |
| Product Model | OFP-MM |
| Product Name | OptiFiber Pro OTDR OFP-MM Cable/Network Tester |
| Product Type | Cable/Network Tester |
| Technical Information | |
| Device Function | Network Testing,OTDR Testing,Cable Testing |
| Interfaces/Ports | |
| USB | Yes |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Battery Information | |
| Battery Size Supported | 7.2V |
| Battery Rechargeable | Yes |
| Battery Life | 8 Hour |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Physical Characteristics | |
| Height | 2.62" (66.55 mm) |
| Width | 5.25" (133.35 mm) |
| Depth | 11" (279.40 mm) |
| Weight (Approximate) | 2.82 lb (1280 g) |
[/custom-specifications]
[custom-options]
| Product | Fluke Networks OTDR Source Port Interchangeable SC Adapter - SC Network Male |
| SKU | PA-SC |
| Sale Price | $453.95 |
| Product | Fluke Networks Video Probe Tip for LC Simplex and Duplex Connectors |
| SKU | FI1000-LC-PCTIP |
| Sale Price | $505.95 |
| Product | Fluke Networks Singlemode 9 µm TRC (2 m) For Testing SCAPC/E2KAPC - 6.6 ft (2.01 m) Fiber Optic Network Cable for Network Device, Test Equipment - 9 µm |
| SKU | SRC-9-SCAPC/E2KAPC |
| Sale Price | $288.95 |
