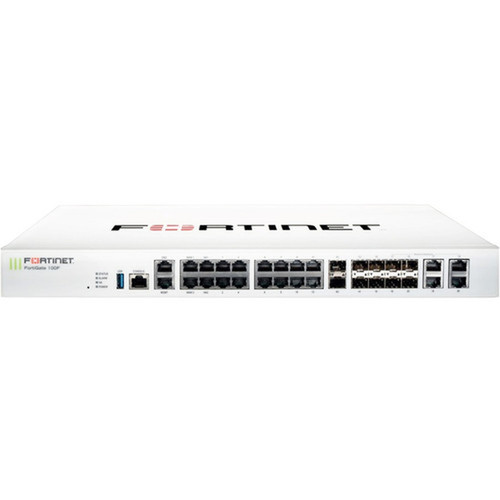

Fortinet FG-100F FortiGate 100F Network Security Firewall Appliance - 22 Ports - 10GbE - 21 RJ-45 - 8 SFP - 2 SFP+
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Fortinet FortiGate 100F is a dedicated network security firewall appliance engineered for enterprise edge protection. This hardware-based solution delivers comprehensive threat defense across wired network environments while maintaining high-performance throughput.
With its 22-port configuration and 10 Gigabit Ethernet backbone, the FortiGate 100F provides the interface density and bandwidth capacity needed for modern business networks. The appliance supports multiple security protocols and certifications, including ICSA-certified operating system and SSL encrypted traffic inspection.
Designed as a rack-mountable security gateway, this FortiGate model focuses on hardware-level security functions without integrated wireless capabilities. Its expansion flexibility through SFP and SFP+ slots allows for fiber connectivity integration alongside standard copper Ethernet ports.
Relevant factors for this section include Firewall Protection Supported, Total Number of Ports, USB, Number of Network (RJ-45) Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
The FortiGate 100F implements a multi-layered security architecture that includes threat protection, application control, and secure VPN connectivity. Its firewall capabilities extend to SSL encrypted traffic inspection, allowing security policies to be enforced even on encrypted data streams.
Network connectivity is delivered through 21 RJ-45 ports supporting 1000Base-T standards, plus one USB port for management or storage expansion. The 10 expansion slots consist of 8 SFP slots for gigabit fiber connectivity and 2 SFP+ slots for 10-gigabit fiber connections, providing flexible uplink options.
This appliance operates on Fortinet's purpose-built security operating system, which has received ICSA certification for firewall and VPN functionality. The platform supports IPsec VPN tunnels for secure site-to-site and remote access connectivity across distributed networks.
Relevant factors for this section include Firewall Protection Supported, Total Number of Ports, USB, Number of Network (RJ-45) Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FortiGate 100F delivers several distinct advantages for network security deployments. Its hardware-accelerated architecture ensures security processing doesn't become a network bottleneck, even when inspecting encrypted traffic or applying complex threat protection policies.
The combination of high port density and 10GbE capability makes this appliance suitable for aggregation points where multiple network segments converge. Security policies can be consistently applied across all connected interfaces without performance degradation.
High-Density Port Configuration
With 22 total ports including 21 RJ-45 Ethernet interfaces, the FortiGate 100F can directly connect numerous network segments, servers, or devices without requiring additional switches for basic connectivity.
- 21 copper Ethernet ports
- 1 USB management port
- 10 expansion slots for fiber
Enterprise-Grade Security Stack
The integrated security features provide comprehensive protection against modern threats while maintaining compliance with industry certifications.
- ICSA certified operating system
- SSL encrypted traffic inspection
- Application-aware firewall policies
Deployment / Use Cases
The FortiGate 100F is designed for deployment scenarios requiring robust security between network segments. Its port configuration supports direct connection of multiple departments, server racks, or network zones while applying consistent security policies across all traffic.
In distributed enterprise environments, multiple FortiGate 100F appliances can be deployed at branch locations, connected via IPsec VPN tunnels to create secure wide-area networks. The hardware's management capabilities allow for centralized policy administration across all deployed units.
For service providers or multi-tenant buildings, this appliance can secure shared infrastructure while maintaining isolation between different customers or departments. The expansion slots enable fiber connectivity to upstream networks or between buildings while the copper ports serve local devices.
Enterprise Network Edge
Deploy as the primary security gateway between internal networks and internet connections, providing threat protection, VPN termination, and traffic inspection for branch offices or headquarters.
Data Center Security Layer
Implement as a segmentation firewall within data center environments, isolating different application tiers or tenant networks while maintaining high-throughput connectivity between secured zones.
Highlights
- 22 total ports including 21 RJ-45 Ethernet interfaces
- 10 Gigabit Ethernet backbone for high-throughput security
- 8 SFP and 2 SFP+ expansion slots for fiber connectivity
- ICSA certified security operating system
- SSL encrypted traffic inspection capabilities
- Secure IPsec VPN connectivity for site-to-site tunnels
- Application control and threat protection features
- Hardware-accelerated firewall performance
- Rack-mountable enterprise security appliance
- Managed security platform with centralized control
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FG-100F |
| Brand Name | Fortinet |
| Product Line | FortiGate |
| Product Series | 100F |
| Product Name | FortiGate 100F Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Threat Protection,SSL Encrypted Traffic Protection,ICSA Certified OS,Secure IPsec VPN Connectivity,Application Control |
| Interfaces/Ports | |
| Total Number of Ports | 22 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 21 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Standard | 10GBase-X,1000Base-T,1000Base-X |
| Wireless Specifications | |
| Wireless LAN | No |
| I/O Expansions | |
| Total Number of Expansion Slots | 10 |
| Expansion Slot Type | SFP+,SFP |
| Number of SFP Slots | 8 |
| Number of SFP+ Slots | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Miscellaneous | |
| Country of Origin | Taiwan |
FAQ
What types of security protection does the FortiGate 100F provide?
The FortiGate 100F delivers multiple layers of security protection including threat protection against malware and exploits, SSL encrypted traffic inspection to detect threats within encrypted communications, application control for granular policy enforcement, and secure IPsec VPN connectivity for encrypted site-to-site and remote access tunnels. The operating system is ICSA certified for firewall and VPN functionality.
How many network ports are available on this firewall appliance?
This appliance provides 22 total ports consisting of 21 RJ-45 Ethernet ports supporting 1000Base-T standards and one USB port for management or storage expansion. Additionally, there are 10 expansion slots for fiber connectivity - 8 SFP slots for gigabit fiber and 2 SFP+ slots for 10-gigabit fiber connections.
Does the FortiGate 100F support wireless connectivity?
No, the FortiGate 100F is a dedicated wired network security appliance without integrated wireless capabilities. It focuses on providing hardware-accelerated security for wired network environments. For wireless security needs, Fortinet offers separate wireless access points and controllers that can integrate with FortiGate security policies.
What is the Ethernet technology and throughput capability?
The FortiGate 100F utilizes 10 Gigabit Ethernet technology, providing high-bandwidth capacity for security processing. It supports network standards including 10GBase-X, 1000Base-T, and 1000Base-X. This enables the appliance to handle substantial network traffic while applying security policies without becoming a performance bottleneck.
Can this firewall appliance be centrally managed?
Yes, the FortiGate 100F is fully manageable and supports centralized administration through Fortinet's security management ecosystem. This allows network administrators to configure security policies, monitor threats, and manage VPN connections across multiple FortiGate appliances from a single management interface.
What expansion options are available for fiber connectivity?
The appliance provides 10 expansion slots specifically for fiber connectivity: 8 standard SFP slots supporting gigabit fiber connections and 2 SFP+ slots supporting 10-gigabit fiber connections. These slots allow the integration of fiber uplinks to core switches, connections between buildings, or links to service provider networks while maintaining copper connectivity for local devices through the 21 RJ-45 ports.
