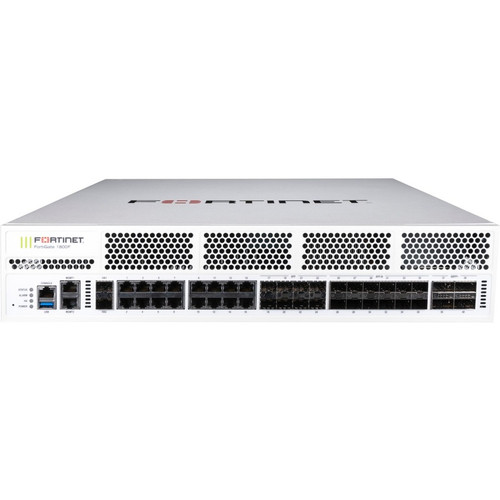

Fortinet FG-1801F-BDL-809-36 FortiGate 1800F Series Firewall - 198 Gbps Throughput - 16 Ports - 100GbE - 2U Rackmount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FG-1801F utilizes a comprehensive security architecture that includes firewall protection for access control, anti-phishing, anti-spam, antivirus, application control, botnet detection, cloud sandboxing, content filtering, DDoS protection, DNS security, email security, endpoint protection, intrusion prevention, IoT security, malware protection, OT security, ransomware protection, SaaS security, SSL inspection, threat protection, URL filtering, user authentication, vulnerability assessment, web protection, zero-day threat prevention, and zero-trust network access.
Network connectivity is handled through 16 total ports with support for multiple Ethernet standards including 1000Base-X, 40GBase-X, 1000Base-T, 10GBase-X, and 100GBase-X. The appliance features 26 expansion slots supporting SFP, SFP+, SFP28, QSFP28, and QSFP+ modules, with 8 dedicated SFP slots and 14 SFP+ slots for flexible optical connectivity.
Key Product Advantages
The FortiGate FG-1801F combines enterprise security features with high-performance networking capabilities. Encryption standards include SHA-256, AES (256-bit), TLS 1.3, and SSL for secure data transmission. The appliance supports secure IPsec VPN connectivity with 6.88 GB/s VPN throughput, enabling secure remote access and site-to-site connections.
High-Performance Security
Delivers 198 Gbps firewall throughput with comprehensive threat protection including AI/ML security, zero-trust network access, and advanced threat intelligence for enterprise-grade security.
- 198 Gbps firewall throughput
- AI/ML security capabilities
- Zero-trust network access (ZTNA)
- Advanced threat intelligence
Flexible Connectivity
Supports 100 Gigabit Ethernet with 16 total ports and 26 expansion slots for SFP, SFP+, SFP28, QSFP28, and QSFP+ modules, enabling diverse network deployment scenarios.
- 100GbE support
- 16 total ports
- 26 expansion slots
- Multiple optical standards
Deployment / Use Cases
This firewall appliance is designed for deployment in environments requiring high-throughput security with flexible connectivity options. The 2U rack-mountable form factor makes it suitable for standard data center racks, while the rail-mountable design facilitates secure installation.
Use cases include securing enterprise network cores, data center perimeters, and service provider environments where high-performance threat protection and multiple connectivity options are required. The bundled SFP+ transceivers provide immediate fiber connectivity for 10GbE deployments.
Data Center Security
Ideal for securing data center perimeters with 198 Gbps throughput, 100GbE support, and comprehensive threat protection including DDoS mitigation and cloud sandboxing.
Enterprise Network Core
Suitable for enterprise network core deployments requiring high VPN capacity (10,000 tunnels), multiple connectivity options, and centralized security management.
Physical Profile
The FortiGate FG-1801F features a 2U rack-mountable form factor with dimensions of 3.50" (88.90 mm) height, 17.25" (438.15 mm) width, and 21.10" (535.94 mm) depth. The appliance weighs approximately 30.40 lb (13789.21 g) and includes rail-mountable hardware for secure installation in standard server racks.
Power consumption is rated at 463.10 W with support for both 50 Hz and 60 Hz frequencies. The appliance carries 80 Plus Standard energy efficiency certification and is designated as environmentally friendly.
- Width
- 17.25" (438.15 mm)
- Depth
- 21.10" (535.94 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 30.40 lb (13789.21 g)
What's in the Box
This bundled package includes the FortiGate FG-1801F network security/firewall appliance along with two SFP+ (SR 10GE) transceivers for immediate fiber connectivity deployment.
Highlights
- 198 Gbps firewall throughput for high-performance security
- 100 Gigabit Ethernet support with 16 total ports
- 10,000 VPN tunnels with 6.88 GB/s VPN throughput
- 26 expansion slots for SFP, SFP+, SFP28, QSFP28, and QSFP+ modules
- Comprehensive threat protection including AI/ML security and zero-trust network access
- 2U rack-mountable form factor with rail-mountable hardware
- Includes two SFP+ (SR 10GE) transceivers in bundled package
- 80 Plus Standard energy efficiency certification
- Manageable via standard network management protocols
- One-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FG-1801F-BDL-809-36 |
| Brand Name | Fortinet |
| Product Line | FortiGate |
| Product Series | 1800F |
| Product Model | FG-1801F |
| Product Name | FortiGate FG-1801F Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Access Control,AI/ML Security,Anti-phishing,Anti-spam,Antivirus,Application Control,Botnet Detection,Cloud Sandboxing,Content Filtering,Cyber Assault Protection,Data Leak Prevention,Distributed Denial of Service (DDoS),DNS Security,Email Security,Endpoint Protection,Enterprise Security,File Security,Intrusion Prevention,IoT Security,Malware Protection,Network Protection,Operational Technology (OT) Security,Outbreak Prevention,Packet Filter,Ransomware Protection,SaaS Security,Sandbox Detection Prevention,Secure IPsec VPN Connectivity,SSL Inspection,Threat Protection,URL Filtering,User Authentication,Vulnerability Assessment,Web Protection,Zero Day Event,Zero Trust Network Access (ZTNA),Zero-day Threat Prevention,Web Content Filtering,Deep Inspection Firewall,Advanced Threat Intelligence,TLS Inspection,Malicious Source IP Address Blocking,Radio Access Network (RAN) Security,Policy Enforcement |
| Firewall Throughput | 198 Gbit/s |
| Encryption Standard | SHA-256,AES (256-bit),TLS 1.3,SSL |
| Number of VPN Supported | 10000 |
| Connectivity Technology | Wired |
| Interfaces/Ports | |
| Total Number of Ports | 16 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 16 |
| Media & Performance | |
| VPN Throughput | 6.88 GB/s |
| Network & Communication | |
| Ethernet Technology | 100 Gigabit Ethernet |
| Network Standard | 1000Base-X,40GBase-X,1000Base-T,10GBase-X,100GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 26 |
| Expansion Slot Type | SFP,SFP+,SFP28,QSFP28,QSFP+ |
| Number of SFP Slots | 8 |
| Number of SFP+ Slots | 14 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Frequency | 50 Hz,60 Hz |
| Power Consumption | 463.10 W |
| Physical Characteristics | |
| Compatible Rack Unit | 2U |
| Form Factor | Rack-mountable,Rail-mountable |
| Height | 3.50" (88.90 mm) |
| Width | 17.25" (438.15 mm) |
| Depth | 21.10" (535.94 mm) |
| Weight (Approximate) | 30.40 lb (13789.21 g) |
| Miscellaneous | |
| Package Contents | FortiGate FG-1801F Network Security/Firewall Appliance 2 x SFP+ (SR 10GE) Transceivers |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Standard |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the firewall throughput of the FortiGate FG-1801F?
The FortiGate FG-1801F delivers 198 Gbit/s of firewall throughput, providing high-performance security processing for enterprise and data center environments. This throughput capacity enables the appliance to handle substantial network traffic while applying comprehensive security policies including threat protection, content filtering, and intrusion prevention.
How many VPN tunnels does this firewall support?
This firewall appliance supports up to 10,000 VPN tunnels with a VPN throughput of 6.88 GB/s. This capacity makes it suitable for large-scale deployments requiring secure site-to-site and remote access connections, supporting enterprise-grade encryption standards including SHA-256, AES (256-bit), TLS 1.3, and SSL.
What expansion slots are available on the FG-1801F?
The FG-1801F features 26 total expansion slots supporting SFP, SFP+, SFP28, QSFP28, and QSFP+ modules. Specifically, it includes 8 SFP slots and 14 SFP+ slots, providing flexible optical connectivity options for various network standards including 1000Base-X, 40GBase-X, 10GBase-X, and 100GBase-X.
What is included in the bundled package?
The bundled package includes the FortiGate FG-1801F network security/firewall appliance along with two SFP+ (SR 10GE) transceivers. These transceivers provide immediate 10GbE fiber connectivity options, allowing for quick deployment without requiring separate transceiver purchases.
What rack unit size does this appliance require?
The FortiGate FG-1801F requires 2U of rack space with dimensions of 3.50" (88.90 mm) height, 17.25" (438.15 mm) width, and 21.10" (535.94 mm) depth. The appliance is rack-mountable and includes rail-mountable hardware for secure installation in standard server racks, weighing approximately 30.40 lb (13789.21 g).
What security features does this firewall provide?
The FG-1801F provides comprehensive security features including access control, AI/ML security, anti-phishing, anti-spam, antivirus, application control, botnet detection, cloud sandboxing, content filtering, DDoS protection, DNS security, email security, endpoint protection, intrusion prevention, IoT security, malware protection, OT security, ransomware protection, SaaS security, SSL inspection, threat protection, URL filtering, user authentication, vulnerability assessment, web protection, zero-day threat prevention, and zero-trust network access (ZTNA).
