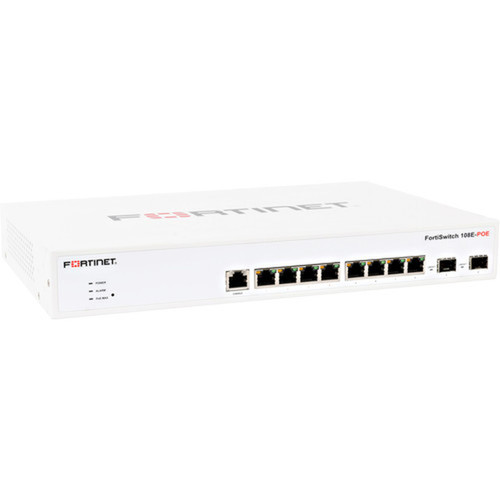

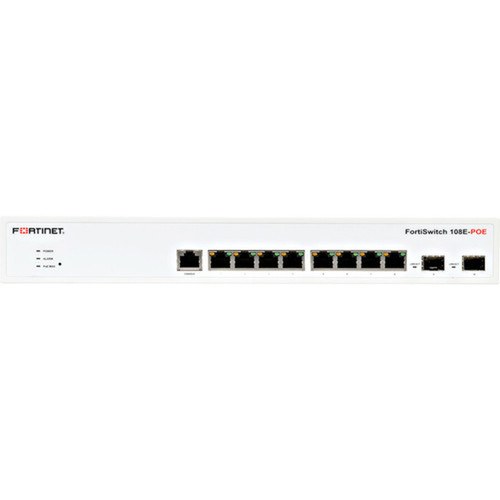

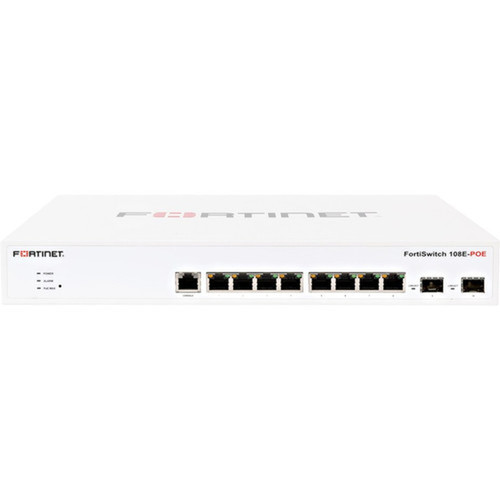

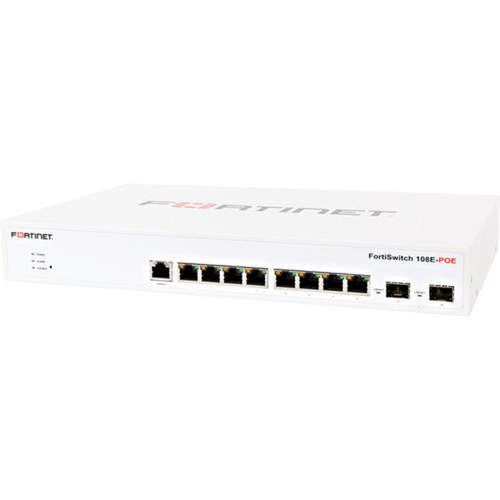

Fortinet FS-108E-FPOE FortiSwitch 108E-FPOE 8-Port Gigabit Managed Layer 2 Switch with 2 SFP Slots and PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FortiSwitch 108E-FPOE provides a robust technical foundation for modern network environments. It supports 1000Base-T and 1000Base-X network technologies, delivering up to 10x faster connectivity than standard Ethernet for high-performance uplinks. The switch operates at Layer 2, offering a complete lineup of advanced features including IGMP snooping, port mirroring, and spanning tree protocol for efficient network management.
Management capabilities are comprehensive, allowing full control over network setup and configuration. The switch integrates tightly into the FortiGate Network Security Platform, enabling management directly from the familiar FortiGate interface. This integration reduces complexity and decreases management costs by providing a single console for network security functions.
Relevant factors for this section include Network Technology, Layer Supported, Management & Protocols Manageable, Power Description Power Source. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FortiSwitch 108E-FPOE stands out with its security fabric integration and simplified network deployment. Tight integration with FortiGate provides complete visibility and control of all users and devices on the network through a single pane of glass management interface. This security fabric approach allows all users to be authenticated against the same database, whether they connect via wired or wireless networks, including temporary guest users.
Security Fabric Integration
Reduces complexity and management costs by handling network security functions through a single console via FortiGate. The same security policies apply to users and devices regardless of connection method or location.
- Single console management
- Unified user authentication
- Consistent security policies
Simplified Deployment
Power over Ethernet capability enables straightforward installation of wireless access points and IP phones without separate power supplies. The standalone design allows flexible placement in various environments.
- PoE for APs and phones
- Standalone operation
- Flat surface placement
Deployment / Use Cases
The FortiSwitch 108E-FPOE supports two primary deployment modes to accommodate different organizational needs. In FortiLink mode, the switch integrates directly into FortiGate connected UTM systems, with switch administration and access port security managed from the familiar FortiGate interface. This mode is perfectly suited for threat-conscious organizations of any size that require complete visibility and control over network security and access.
In standalone mode, the switch operates independently to meet dense high-bandwidth Ethernet networking requirements created by virtualization and cloud computing in data center environments. This flexibility makes it ideal for distributed enterprises, branch offices, and small to mid-sized businesses looking for a secure, simple, and scalable Ethernet solution.
Physical Profile
The FortiSwitch 108E-FPOE features a compact design measuring 12.99 inches wide, 8.23 inches deep, and 1.73 inches high (330 mm x 209 mm x 44 mm), with an approximate weight of 2.04 kg. This form factor allows for flexible placement in various environments, from desktop installations to rack-mounted deployments where space is at a premium. The built-in power supply ensures reliable operation without external power bricks, while the non-redundant power design maintains simplicity for cost-effective deployments.
- Width
- 12.99" (330 mm)
- Depth
- 8.23" (209 mm)
- Height
- 1.73" (44 mm)
- Weight
- 2.04 kg
Highlights
- 8 Gigabit Ethernet ports for network expansion
- 2 SFP slots for high-performance uplink connectivity
- Layer 2 switching with IGMP snooping and spanning tree
- Power over Ethernet (PoE) support for APs and IP phones
- Managed directly from FortiGate interface
- Security fabric integration for unified policies
- Standalone operation with flexible placement
- Built-in power supply for stable operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FS-108E-FPOE |
| Brand Name | Fortinet |
| Product Line | FortiSwitch |
| Product Model | 108E-FPOE |
| Product Name | FortiSwitch 108E-FPOE Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Network Technology | 1000Base-T 1000Base-X I/O Expansions Number of Total Expansion Slots : 2 Expansion Slot Type : SFP Shared SFP Slot : No Number of SFP Slots : 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols Manageable | Yes |
| Power Description Power Source | Power |
| Supply Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Height | 1.73" (44 mm) |
| Width | 12.99" (330 mm) |
| Depth | 8.23" (209 mm) |
| Weight (Approximate) | 2.04 kg |
| Miscellaneous | |
| Country of Origin | China |
FAQ
How many ports does this FortiSwitch have and what types are they?
The Fortinet FortiSwitch 108E-FPOE features eight Gigabit Ethernet ports for connecting network devices, plus two SFP slots for uplink expansion. The eight main ports support 1000Base-T connections for twisted pair cabling, while the SFP slots accommodate 1000Base-X fiber or copper transceivers for high-performance uplinks to other network segments or core switches.
Does this switch support Power over Ethernet (PoE)?
Yes, the FortiSwitch 108E-FPOE includes Power over Ethernet capability. This PoE support enables simple installation of wireless access points and IP phones without requiring separate power supplies at each device location. The built-in power supply provides accurate voltage to all connected PoE devices, simplifying network deployment and reducing cabling complexity.
What management options are available for this switch?
This switch offers comprehensive management capabilities through two primary modes. In FortiLink mode, it integrates directly with FortiGate security platforms, allowing management from the familiar FortiGate interface with single pane of glass visibility. In standalone mode, it operates independently with full management features including IGMP snooping, port mirroring, and spanning tree protocol configuration for network optimization and troubleshooting.
What is the switching layer and what features does it include?
The FortiSwitch 108E-FPOE operates at Layer 2 of the OSI model, providing a complete lineup of switching features. These include IGMP snooping for efficient multicast traffic management, port mirroring for network monitoring and analysis, and spanning tree protocol for preventing network loops and ensuring redundancy. The Layer 2 foundation delivers high-performance switching while maintaining compatibility with existing network infrastructures.
Can this switch be rack-mounted or is it desktop only?
The FortiSwitch 108E-FPOE is designed as a standalone unit that can be placed on any flat surface, making it suitable for desktop deployment. Its compact dimensions of 12.99" W x 8.23" D x 1.73" H (330 mm x 209 mm x 44 mm) and weight of 2.04 kg allow for flexible installation in various environments. While primarily designed for standalone operation, its form factor may accommodate certain rack mounting solutions with appropriate accessories.
How does the security fabric integration work with FortiGate?
The security fabric integration allows the FortiSwitch to be managed directly from the FortiGate Network Security Platform interface. This integration provides complete visibility and control of all users and devices on the network through a single console, regardless of how they connect. All users authenticate against the same database, and consistent security policies apply whether connections are wired or wireless, including for temporary guest users, reducing management complexity and costs.
