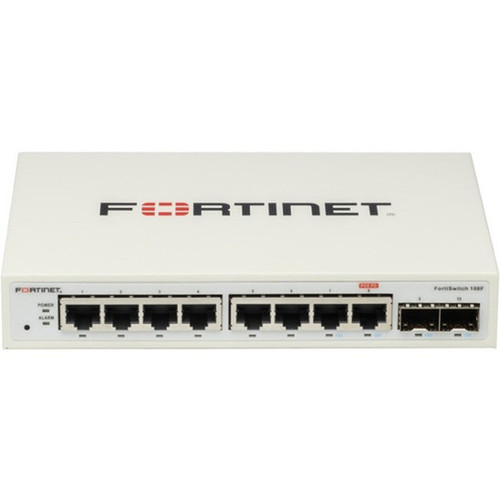

Fortinet FS-108F FortiSwitch 108F Ethernet Switch - 8 Ports - 2 SFP Slots - Gigabit - Layer 2 - Desktop - Manageable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FortiSwitch 108F operates as a Gigabit Ethernet switch with eight total network ports: seven standard Gigabit Ethernet ports and one Gigabit PoE port. It features two SFP (mini-GBIC) expansion slots for fiber or copper uplinks, supporting media types including optical fiber and twisted pair. This allows for longer-distance connections and high data transmission rates between network components.
As a Layer 2 managed switch, it supports advanced networking protocols such as IEEE 802.1Q for VLANs, IEEE 802.3ad for link aggregation, and IEEE 802.1x for network access control. The switch is manageable through Fortinet's FortiGate or FortiSwitch Manager, providing tools for configuration, monitoring, and troubleshooting. Power options include a 12V/1A DC power adapter and PoE sourcing, with a typical power draw of 6.20 watts.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FS-108F combines port density, management capabilities, and compact design to deliver a reliable networking solution for growing businesses. Its integration with Fortinet Security Fabric allows for unified security policies and simplified network management, reducing administrative overhead.
Secure Network Foundation
As part of the Fortinet ecosystem, this switch enables centralized security management, helping protect against threats and ensure compliance across the network.
- Supports IEEE 802.1x for secure access
- Integrates with FortiGate for policy enforcement
- Provides VLAN segmentation for traffic isolation
Flexible Connectivity
With eight Gigabit ports and two SFP slots, the switch accommodates both copper and fiber connections, supporting diverse network topologies and future expansion.
- One PoE port for powered devices
- SFP slots for high-speed uplinks
- Backward compatible with Fast Ethernet
Deployment / Use Cases
The FortiSwitch 108F is well-suited for small to medium-sized businesses, remote offices, and retail environments where reliable, managed switching is needed without the complexity of rack-mounted equipment. Its desktop form factor makes it easy to deploy in spaces with limited rack infrastructure, such as under desks or in network cabinets.
Common use cases include connecting workstations and peripherals in office settings, supporting IP phones and wireless access points via PoE, and serving as an aggregation switch for small network segments. The SFP uplink ports enable connections to core switches or routers over fiber for extended reach or higher bandwidth, making it a versatile choice for network edge deployments.
Small Office Networking
Ideal for connecting computers, printers, and VoIP phones in offices with up to eight devices, providing Gigabit speeds and PoE for powered endpoints.
Branch Network Expansion
Use as a managed switch in branch locations to extend network connectivity with secure, Layer 2 features and uplink options for backhaul to headquarters.
Physical Profile
The FS-108F features a compact desktop design with dimensions of 7.09" wide, 4.72" deep, and 1.18" high, weighing approximately 1.36 pounds. This small footprint allows for flexible placement in tight spaces, such as on desks, shelves, or in wall-mounted enclosures. The switch's build is robust yet lightweight, making it easy to install and reposition as network needs evolve.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.18" (29.97 mm), 7.09" (180.09 mm), 4.72" (119.89 mm), 1.36 lb (616.89 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 7.09" (180.09 mm)
- Depth
- 4.72" (119.89 mm)
- Height
- 1.18" (29.97 mm)
- Weight
- 1.36 lb (616.89 g)
What's in the Box
The package includes the FortiSwitch 108F Ethernet Switch and a 12V/1A DC power adapter, providing everything needed for basic setup and operation.
Package contents include FortiSwitch 108F Ethernet Switch 12V/1A DC Power Adapter, FortiSwitch 108F Ethernet Switch. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 8 Gigabit Ethernet ports with one PoE port for powered devices
- 2 SFP slots for fiber or copper uplink connections
- Layer 2 managed switch with comprehensive networking standards support
- Desktop form factor for flexible deployment outside wiring closets
- Integrates with Fortinet Security Fabric for centralized management
- Low power consumption at 6.20 watts for energy efficiency
- Supports optical fiber and twisted pair media types
- Lifetime limited warranty for long-term reliability
- RoHS 2 compliant for environmental responsibility
- Uplink port enables network expansion and cascading
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FS-108F |
| Brand Name | Fortinet |
| Product Line | FortiSwitch |
| Product Model | 108F |
| Product Name | FortiSwitch 108F Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 7 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot,1 x Gigabit Ethernet PoE |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1x,IEEE 802.1ab,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.1AX,IEEE 802.3x,IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3az,IEEE 802.1Qbb,IEEE 802.1ad,IEEE 802.1p |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Power Source | Power Adapter,PoE |
| Redundant Power Supply Supported | No |
| Power Consumption | 6.20 W |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.18" (29.97 mm) |
| Width | 7.09" (180.09 mm) |
| Depth | 4.72" (119.89 mm) |
| Weight (Approximate) | 1.36 lb (616.89 g) |
| Miscellaneous | |
| Package Contents | FortiSwitch 108F Ethernet Switch 12V/1A DC Power Adapter |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many ports does the Fortinet FS-108F switch have?
The Fortinet FS-108F FortiSwitch 108F has eight total network ports. This includes seven standard Gigabit Ethernet ports and one Gigabit Ethernet port with Power over Ethernet (PoE) capability, allowing you to connect multiple devices such as computers, printers, and IP phones while providing power to compatible endpoints.
What are the SFP slots used for on this switch?
The two SFP (mini-GBIC) slots on the FS-108F are expansion slots for uplink connections. They support SFP modules for optical fiber or copper cables, enabling longer-distance links or higher-speed connections to other switches, routers, or network core devices. This flexibility allows for network expansion and improved backbone connectivity.
Is the FortiSwitch 108F a managed switch?
Yes, the FortiSwitch 108F is a fully manageable Layer 2 switch. It supports management through Fortinet's FortiGate or FortiSwitch Manager, offering features like VLAN configuration, link aggregation, QoS, and security policies. This manageability provides control over network traffic, security, and performance for business environments.
Does this switch support Power over Ethernet (PoE)?
Yes, the FS-108F includes one Gigabit Ethernet port with PoE support. This port can deliver power to compatible devices such as IP phones, wireless access points, or security cameras, eliminating the need for separate power adapters and simplifying installation in locations without easy power access.
What is the form factor of the Fortinet FS-108F switch?
The Fortinet FS-108F has a desktop form factor, measuring 7.09" wide, 4.72" deep, and 1.18" high, with a weight of approximately 1.36 pounds. This compact design makes it suitable for deployments on desks, shelves, or small network enclosures, rather than requiring rack mounting in a data closet.
What warranty comes with the FortiSwitch 108F?
The Fortinet FS-108F FortiSwitch 108F comes with a lifetime limited warranty. This warranty covers defects in materials and workmanship for the lifetime of the product, providing long-term assurance and support for your network investment, which is typical of Fortinet's commitment to reliability in networking hardware.
