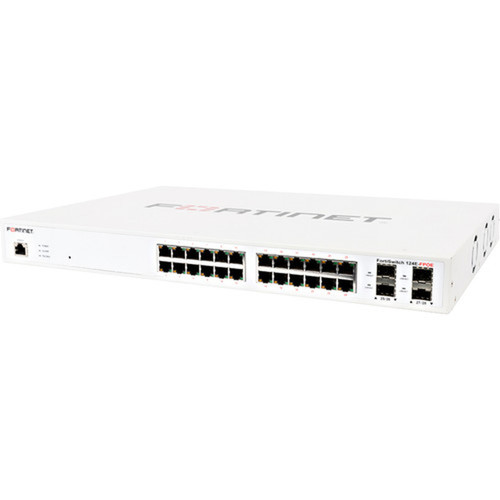

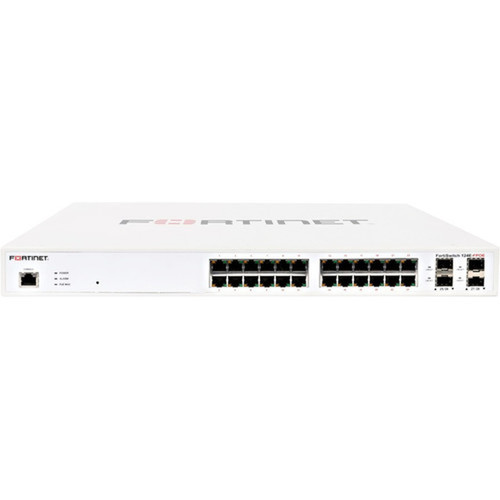

Fortinet FS-124E-FPOE FortiSwitch 124E-F-POE 24-Port Gigabit Managed PoE+ Switch with 4 SFP Slots - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FortiSwitch 124E-F-POE delivers full Gigabit Ethernet performance across all 24 ports, supporting both twisted pair and optical fiber media via its four dedicated SFP slots. These expansion slots provide uplink flexibility without sharing bandwidth with the main copper ports.
As a managed switch, it offers granular control over network traffic, VLANs, and security settings. The device does not include dedicated uplink ports or stack ports but integrates seamlessly into Fortinet Security Fabric environments for unified management and reporting.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This switch reduces operational complexity by enabling voice, data, and wireless traffic to converge on a single network infrastructure. Its stackable architecture supports up to 256 switches per FortiGate, scaling for large installations without compromising manageability.
Integrated Security Management
Devices and users are authenticated before network access, with centralized security policies managed from the FortiGate interface.
PoE+ Readiness
Supplies Power over Ethernet (PoE+) to connected devices like IP phones, wireless access points, and security cameras, simplifying cabling and power distribution.
Compact Rack Design
The 1U form factor optimizes rack space while providing 24 ports and four SFP slots, ideal for dense deployments.
Deployment / Use Cases
The FortiSwitch 124E-F-POE is engineered for environments requiring reliable, secure switching with PoE+ support. It fits well in mid-sized businesses, educational institutions, or healthcare facilities where network segmentation and power delivery are priorities.
Its compatibility with Fortinet Security Fabric allows for automated threat response and consistent policy enforcement across the network, making it a strategic choice for organizations investing in integrated security ecosystems.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Enterprise Wiring Closets
Deploy in office buildings or campuses to provide PoE+ to endpoints while maintaining high-speed Gigabit connectivity and security segmentation.
Converged Networks
Unify voice, data, and wireless traffic across a single network, leveraging the four SFP slots for fiber uplinks to core switches or servers.
Physical Profile
The switch measures 1.70" in height, 17.30" in width, and 12.20" in depth, fitting standard 19-inch racks with a 1U footprint. Its weight of 11.20 lb ensures stable mounting without excessive load. The rack-mountable design includes front-accessible ports and SFP slots for easy cabling and maintenance in constrained spaces.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.70" (43.18 mm), 17.30" (439.42 mm), 12.20" (309.88 mm), 11.20 lb (5080.23 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.30" (439.42 mm)
- Depth
- 12.20" (309.88 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 11.20 lb (5080.23 g)
Highlights
- 24 Gigabit Ethernet ports with PoE+ capability
- Four SFP (mini-GBIC) slots for fiber or copper uplinks
- Layer 2 managed switching with FortiGate integration
- Compact 1U rack-mountable form factor
- Centralized security management and user authentication
- Stackable up to 256 switches per FortiGate
- Supports converged voice, data, and wireless traffic
- Lifetime limited warranty for long-term reliability
- RoHS 2 compliant and environmentally friendly
- Low power consumption at 17.78 W
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FS124EFPOE |
| Brand Name | Fortinet |
| Product Line | FortiSwitch |
| Product Series | 100E |
| Product Model | 124E-F-POE |
| Product Name | FortiSwitch 124E-F-POE Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | No |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X,10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | No |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Power Consumption | 17.78 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 12.20" (309.88 mm) |
| Weight (Approximate) | 11.20 lb (5080.23 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many ports does this FortiSwitch have, and are they all PoE+ capable?
The FortiSwitch 124E-F-POE has 24 Gigabit Ethernet ports. All 24 ports support Power over Ethernet (PoE+), delivering up to 30W per port to compatible devices like IP phones, wireless access points, and security cameras, simplifying power and data cabling in deployments.
What type of expansion slots are available for uplinks?
This switch includes four SFP (mini-GBIC) expansion slots dedicated to uplinks. These slots support both optical fiber and copper SFP modules, providing flexibility for high-speed connections to core network infrastructure without sharing bandwidth with the main 24 copper ports.
Is this a managed switch, and what management features does it offer?
Yes, the FortiSwitch 124E-F-POE is a fully managed Layer 2 switch. It integrates with Fortinet Security Fabric, allowing centralized management, monitoring, and reporting through a FortiGate interface. Features include VLAN support, traffic prioritization, security policies, and user authentication before network access.
What is the rack-mounting profile and physical dimensions?
The switch has a 1U rack-mountable form factor, measuring 1.70" in height, 17.30" in width, and 12.20" in depth. It fits standard 19-inch racks and weighs 11.20 lb, making it suitable for wiring closets or data centers where space optimization is essential.
Does this switch support stacking or redundant power supplies?
The FortiSwitch 124E-F-POE does not include dedicated stack ports or support for redundant power supplies. However, it is stackable virtually through FortiGate integration, allowing management of up to 256 switches as a single logical unit within the Fortinet Security Fabric environment.
What warranty and environmental compliance does this product have?
Fortinet provides a lifetime limited warranty for this switch, ensuring long-term reliability and support. It is also environmentally friendly, complying with Restriction of Hazardous Substances (RoHS) 2 standards, and has a low power consumption of 17.78 W for energy-efficient operation.
