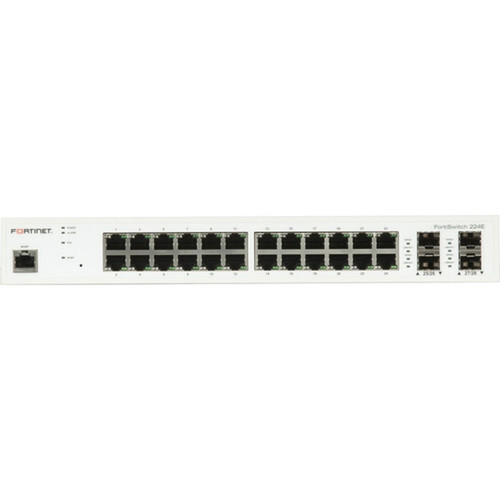

Fortinet FS-224E FortiSwitch 24-Port Gigabit Ethernet Managed Layer 3 Switch - 4 SFP Slots - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FS-224E features 24 Gigabit Ethernet ports and 4 SFP (mini-GBIC) expansion slots, supporting both optical fiber and twisted pair media types. Its Layer 3 capabilities allow for advanced routing and network segmentation, enhancing performance in complex network topologies.
Compliant with a comprehensive set of networking standards including IEEE 802.1Q for VLANs, IEEE 802.3ad for link aggregation, and IEEE 802.3az for energy-efficient Ethernet, this switch ensures interoperability and efficiency in modern network environments.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The FS-224E offers centralized security management through FortiLink, simplifying network oversight and reducing administrative overhead. Its stackable design supports up to 300 switches per FortiGate, depending on the model, enabling extensive scalability for growing network demands.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Converged Network Support, Compact Form Factor.
Converged Network Support
Optimized for converged network environments, enabling voice, data, and wireless traffic to be delivered across a single network infrastructure.
- Reduces cabling complexity
- Supports mixed media types
Compact Form Factor
Packs up to 48 ports in a compact 1U rack-mountable design, saving valuable rack space while providing high port density.
- Ideal for wiring closets
- Easy to install in standard racks
Deployment / Use Cases
The FS-224E is ideal for SD-Branch deployments, providing the switching backbone for distributed offices with centralized management. Its 1U form factor and manageable design make it suitable for installations ranging from desktops to wiring closets, offering flexibility in deployment scenarios.
This switch excels in environments requiring converged network capabilities, supporting voice, data, and wireless traffic across a unified infrastructure. Its Layer 3 functionality and SFP expansion slots make it a strong choice for connecting to fiber backbones or extending network reach in enterprise settings.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The FS-224E features a 1U rack-mountable form factor with dimensions of 1.73" (43.94 mm) height, 12.99" (329.95 mm) width, and 9" (228.60 mm) depth, weighing approximately 4.78 lb (2168.17 g). Its compact design maximizes rack space efficiency while providing robust construction for reliable operation in data center or office environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (43.94 mm), 12.99" (329.95 mm), 9" (228.60 mm), 4.78 lb (2168.17 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 12.99" (329.95 mm)
- Depth
- 9" (228.60 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 4.78 lb (2168.17 g)
Highlights
- 24 Gigabit Ethernet ports for high-density connectivity
- 4 SFP (mini-GBIC) expansion slots for fiber uplinks
- Layer 3 switching capabilities for advanced routing
- 1U rack-mountable form factor saves space
- Centralized management via FortiLink with FortiGate
- Supports wire-speed switching and store-and-forward mode
- Stackable up to 300 switches per FortiGate
- Lifetime limited warranty for long-term reliability
- RoHS 2 compliant for environmental safety
- Low power consumption at 17.30 W
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FS-224E |
| Brand Name | Fortinet |
| Product Line | FortiSwitch |
| Product Series | 200 |
| Product Model | FS-224E |
| Product Name | FortiSwitch FS-224E Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X,10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.1AX,IEEE 802.3x,IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3bz,IEEE 802.1ad,IEEE 802.3ba,IEEE 802.3bj,IEEE 802.3bm,IEEE 802.1p |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 17.30 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 12.99" (329.95 mm) |
| Depth | 9" (228.60 mm) |
| Weight (Approximate) | 4.78 lb (2168.17 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many ports does the Fortinet FS-224E switch have?
The Fortinet FS-224E features 24 Gigabit Ethernet ports for connecting network devices, plus 4 SFP (mini-GBIC) expansion slots for additional fiber or copper uplinks, providing flexible connectivity options for various network setups.
Does this switch support Power over Ethernet (PoE)?
No, the FS-224E does not support Power over Ethernet on its RJ-45 ports. It is designed as a non-PoE switch, making it suitable for environments where powered devices are connected separately or where PoE is not required.
What is the form factor of the FS-224E switch?
The FS-224E has a 1U rack-mountable form factor, with dimensions of 1.73" height, 12.99" width, and 9" depth. This compact design allows for easy installation in standard server racks, optimizing space in data centers or wiring closets.
Can this switch be managed centrally with FortiGate?
Yes, the FS-224E supports centralized management through FortiLink when integrated with FortiGate security appliances. This enables unified security policies and network configuration. It also supports standalone management via GUI, API, or CLI for non-FortiLink deployments.
What layer of switching does the FS-224E support?
The FS-224E is a Layer 3 switch, providing advanced routing capabilities such as inter-VLAN routing and dynamic routing protocols. This allows for efficient network segmentation and improved performance in complex network environments compared to basic Layer 2 switches.
What is the warranty for the Fortinet FS-224E switch?
Fortinet provides a lifetime limited warranty for the FS-224E switch, covering defects in materials and workmanship for the product's lifetime. This warranty offers long-term reliability and support, reducing total cost of ownership for network deployments.
