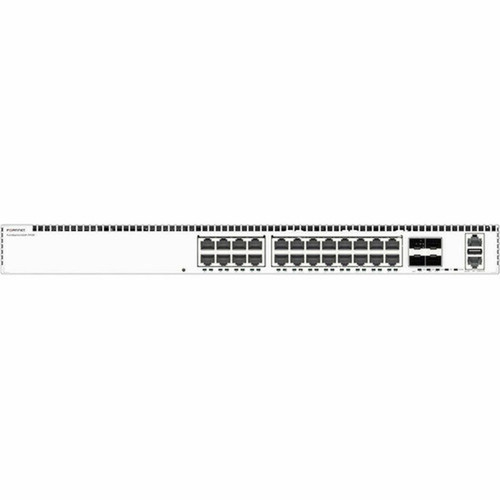

Fortinet FS-624F-FPOE FortiSwitch 24-Port Managed Switch - 10GbE - 1. 44kW PoE - 4x SFP28 - Layer 3 - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FS-624F-FPOE features 24 Gigabit Ethernet ports with PoE capability, delivering up to 1.44 kilowatts of total PoE budget to support high-power devices like 802.3bt access points and pan-tilt-zoom cameras. Four SFP28 expansion slots provide 25GbE uplink connectivity for backbone connections, while 10GBase-X and 10GBase-T support ensures compatibility with both fiber and copper infrastructures.
Layer 3 switching enables advanced routing protocols for segmenting network traffic and optimizing performance across subnets. The switch supports comprehensive networking standards including IEEE 802.3af/at/bt for PoE, IEEE 802.3az for energy efficiency, and IEEE 802.1x for network access control. With 1680W power consumption and 120-230V AC input voltage range, the switch adapts to various power environments while maintaining reliable operation.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FortiSwitch FS-624F-FPOE delivers several distinct advantages for network administrators seeking to build resilient, high-performance infrastructure. The combination of high-density PoE ports with substantial power budget eliminates the need for separate power injectors, simplifying deployment of wireless networks and VoIP systems while reducing cable clutter.
Scalable Architecture
Layer 3 support enables routing between VLANs and subnets, allowing network segmentation for security and performance optimization without requiring separate routers.
- Inter-VLAN routing capabilities
- Support for routing protocols
- Scalable network design foundation
High-Speed Connectivity
10GbE technology and SFP28 uplink slots provide ample bandwidth for backbone connections and server links, preventing bottlenecks in data-intensive environments.
- 10GBase-X and 10GBase-T support
- 25GbE uplink capacity
- Future-proof bandwidth headroom
Enterprise Reliability
Dual power supply support with redundancy ensures continuous operation during power events, while the managed platform offers granular control over network traffic and security policies.
- Redundant power supply support
- Comprehensive management features
- Industrial-grade construction
Deployment / Use Cases
The FS-624F-FPOE excels in medium to large business environments where reliable switching, PoE distribution, and future growth are primary considerations. Its balanced port configuration and uplink capacity make it suitable for aggregation layer switching in multi-floor offices, connecting access switches while providing high-speed links to core network infrastructure.
Educational institutions benefit from the high PoE budget when deploying wireless classrooms with multiple access points, while healthcare facilities appreciate the redundant power design for critical medical device networks. The switch's 1U form factor and rack-mount capability make it ideal for data center edge deployments, telecommunications closets, and managed service provider installations where space optimization matters.
Office Network Aggregation
Serve as distribution layer switch connecting multiple access switches across departments or floors, with SFP28 uplinks providing high-speed backbone connectivity to core switches or routers.
High-Density PoE Deployment
Power and connect large numbers of PoE devices in conference centers, classrooms, or retail environments where wireless access points, IP cameras, and VoIP phones require both data and power.
Physical Profile
The switch features a compact 1U rack-mountable design measuring 1.75 inches in height, 13.80 inches in width, and 10.23 inches in depth, fitting standard 19-inch server racks while maximizing port density per rack unit. The standalone capability allows temporary deployment on shelves or desks during staging and testing, with front-accessible ports and status indicators for easy monitoring. Weighing 16.33 pounds, the switch maintains a substantial build quality with RoHS 2 environmental compliance, ensuring durable operation in commercial environments.
- Width
- 13.80" (350.52 mm)
- Depth
- 10.23" (259.84 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 16.33 lb (7407 g)
Highlights
- 24 Gigabit Ethernet ports with Power over Ethernet support
- 1.44 kilowatt total PoE budget for high-power devices
- Four SFP28 expansion slots for 25GbE uplink connectivity
- 10 Gigabit Ethernet technology with 10GBase-X and 10GBase-T support
- Layer 3 switching capability for routing between network segments
- 1U rack-mountable form factor with standalone deployment option
- Dual power supply support for redundant power operation
- Comprehensive IEEE standards compliance including 802.3af/at/bt PoE
- Stack port for easy network expansion and management
- Managed switch platform with granular control and monitoring
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FS-624F-FPOE |
| Brand Name | Fortinet |
| Product Line | FortiSwitch |
| Product Series | 400 |
| Product Model | 624F-FPOE |
| Product Name | FortiSwitch FS-424E Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 24 x 5 Gigabit Ethernet PoE,4 x 25 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X,10GBase-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP28 |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1AX,IEEE 802.3x,IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3bz,IEEE 802.1x,IEEE 802.1ab,IEEE 802.1ae,IEEE 802.1p,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 1.44 kW |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Number of Power Supplies Supported | 2 |
| Power Consumption | 1680 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Standalone |
| Height | 1.75" (44.45 mm) |
| Width | 13.80" (350.52 mm) |
| Depth | 10.23" (259.84 mm) |
| Weight (Approximate) | 16.33 lb (7407 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the total PoE budget of the FortiSwitch FS-624F-FPOE?
The FortiSwitch FS-624F-FPOE provides a total PoE budget of 1.44 kilowatts, distributed across its 24 PoE-capable ports. This substantial power allocation supports high-demand PoE devices including 802.3bt access points, pan-tilt-zoom security cameras, and other powered devices without requiring external power injectors. The switch intelligently manages power allocation to connected devices while maintaining stable operation across all ports.
How many SFP28 expansion slots does this switch include?
This switch includes four SFP28 expansion slots that support 25 Gigabit Ethernet connections. These high-speed uplink ports enable backbone connectivity to core switches, servers, or storage arrays using either fiber or direct-attach copper cables. The SFP28 slots provide flexibility for network architects to choose appropriate transceivers based on distance requirements and infrastructure preferences.
Does the FS-624F-FPOE support Layer 3 switching?
Yes, the FortiSwitch FS-624F-FPOE supports Layer 3 switching, enabling routing functionality between VLANs and network segments. This capability allows network administrators to implement inter-VLAN routing without separate router hardware, reducing network complexity and improving performance for traffic between subnets. The Layer 3 support includes static routing and basic routing protocols suitable for enterprise network designs.
What rack unit size does this switch require for installation?
The FortiSwitch FS-624F-FPOE requires 1 rack unit (1U) of vertical space in standard 19-inch server racks. With dimensions of 1.75 inches in height, 13.80 inches in width, and 10.23 inches in depth, the switch optimizes rack space utilization while providing high port density. The design includes standard rack-mount ears for secure installation in data centers, wiring closets, or network cabinets.
Can this switch operate with redundant power supplies?
Yes, the FS-624F-FPOE supports redundant power supply operation with two power supply units. This configuration provides power redundancy for critical network segments, ensuring continuous operation if one power supply fails. The switch accepts 120-230V AC input voltage and features hot-swappable power supply capability when configured with compatible Fortinet power supply modules.
What types of network media does this switch support?
The FortiSwitch FS-624F-FPOE supports both optical fiber and twisted pair copper media. The 24 RJ-45 ports connect to standard Ethernet cables, while the four SFP28 expansion slots accept fiber optic transceivers for longer-distance connections. This dual-media support provides flexibility for mixed infrastructure environments where both copper and fiber connections are present in the network.
