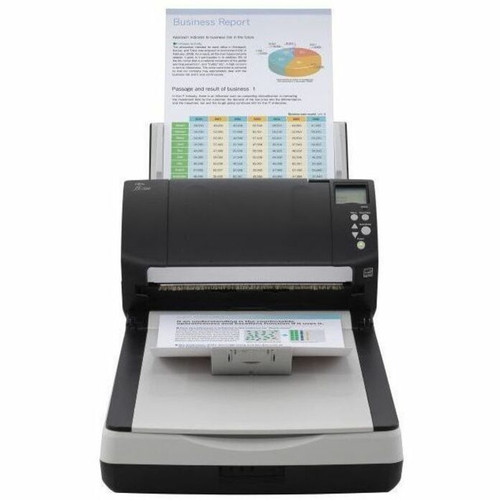

Fujitsu RA03670-B505 fi-7280 Flatbed/ADF Scanner - 80 ppm Color & Mono - 600 dpi Optical - CCD Sensor - 80 Sheet ADF - Duplex
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the fi-7280's imaging system is a CCD sensor that captures 24-bit color depth for vibrant color reproduction and 8-bit grayscale depth for precise monochrome documents. The scanner achieves 160 images per minute throughput in both color and mono modes when scanning at 200 dpi, making it suitable for high-volume digitization projects. The automatic document feeder handles up to 80 sheets of A4 or A8 media with simplex or duplex scanning modes selectable based on workflow requirements.
Connectivity is provided through USB interfaces supporting USB 1.1, USB 2.0, and USB 3.0 standards for compatibility with both legacy and modern systems. The scanner operates with Windows 7 through Windows 10, multiple Windows Server editions, and Linux distributions, ensuring broad deployment flexibility across different IT environments.
Key Product Advantages
The Fujitsu fi-7280 delivers balanced performance across speed, quality, and media handling capabilities that distinguish it in mid-volume scanning applications. Its consistent 80 ppm throughput in both color and mono modes eliminates workflow bottlenecks when processing mixed document types, while the 600 dpi optical resolution ensures archival-quality digital reproductions suitable for long-term document preservation.
High-Speed Document Processing
With 80 pages per minute scanning speed maintained across color and monochrome modes, the fi-7280 processes document batches rapidly without compromising image quality. The 80-sheet ADF capacity minimizes operator intervention during extended scanning sessions.
- 80 ppm color and mono speed
- 160 ipm throughput at 200 dpi
- 80-sheet ADF reduces reloading
Professional Image Quality
The CCD sensor captures 24-bit color depth for accurate color reproduction and 8-bit grayscale depth for detailed black-and-white documents. 600 dpi optical resolution preserves fine text and image details during digitization.
- 24-bit color depth
- 8-bit grayscale depth
- 600 dpi optical resolution
Deployment / Use Cases
The Fujitsu fi-7280 is optimized for office environments requiring reliable document digitization across varied media types. Its dual flatbed/ADF design makes it suitable for scanning bound reports, fragile originals, photographs, and standard office documents within the same workflow. The scanner's 80 ppm throughput and duplex capability support backfile conversion projects, daily mailroom processing, and departmental document management initiatives.
Legal and financial service organizations benefit from the plastic card handling capability for scanning identification documents and credit cards, while educational institutions can digitize archival materials using the flatbed for delicate books and manuscripts. The broad operating system compatibility allows integration into mixed Windows and Linux environments commonly found in government agencies and enterprise IT departments.
Office Document Management
Digitize daily correspondence, contracts, invoices, and reports with consistent 80 ppm throughput. The duplex scanning capability captures two-sided documents automatically, while the 80-sheet ADF handles multi-page reports efficiently.
Specialized Media Processing
Scan plastic cards, identification documents, and photographs using the flatbed for precise positioning. The scanner accommodates media up to 1.40 mm thickness, making it suitable for various card stock and laminated materials.
Physical Profile
The Fujitsu fi-7280 features a compact footprint measuring 11.81 inches wide by 22.72 inches deep, with a height of 9.21 inches that fits comfortably on office workstations or dedicated scanning tables. Weighing approximately 19.40 pounds, the scanner remains stable during operation while allowing reasonable portability between work areas when needed. The design incorporates both the flatbed scanning surface and integrated automatic document feeder in a single unit, optimizing workspace utilization.
- Width
- 11.81" (300 mm)
- Depth
- 24-bit
- Height
- 9.21" (234 mm)
- Weight
- 19.40 lb (8800 g)
What's in the Box
The Fujitsu fi-7280 scanner package includes all essential components for immediate deployment. Each unit ships with the necessary cables, power accessories, and documentation to begin scanning operations quickly.
Highlights
- 80 pages per minute scanning speed in both color and monochrome modes
- 600 dpi optical resolution with CCD image sensor for detailed reproductions
- 80-sheet automatic document feeder for high-volume batch processing
- Dual flatbed and ADF design handles bound materials and loose sheets
- Duplex scanning capability for automatic two-sided document processing
- 24-bit color depth and 8-bit grayscale depth for professional image quality
- USB 3.0, USB 2.0, and USB 1.1 connectivity for broad compatibility
- Supports Windows 7 through 10, Windows Server editions, and Linux
- Energy Star certified for reduced power consumption
- RoHS compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fujitsu |
| Manufacturer Part Number | RA03670B505 |
| Brand Name | Fujitsu |
| Product Series | fi |
| Product Model | fi-7280 |
| Product Name | fi-7280 ADF Scanner |
| Product Type | Flatbed/ADF Scanner |
| Technical Information | |
| Image Sensor Type | CCD |
| Optical Resolution (dpi) | 600 |
| Scan Color | Color,Monochrome,Grayscale |
| Color Depth | 24-bit |
| Grayscale Depth | 8-bit |
| Maximum Mono Scan Speed (ppm) | 80 |
| Maximum Color Scan Speed (ppm) | 80 |
| Maximum Mono Scan Speed (ipm) | 160 |
| Maximum Color Scan Speed (ipm) | 160 |
| Media Type | Plastic Card |
| Media Size | A4,A8 |
| ADF Capacity | 80 Sheets |
| Maximum Media Thickness | 55.12 mil (1.40 mm) |
| Duplex Scanning | Yes |
| Scanning Modes | Simplex/Duplex |
| Light Source | White LED (3x) |
| Interfaces/Ports | |
| USB | Yes |
| USB Standard | USB 1.1,USB 3.0,USB 2.0 |
| Software | |
| Operating System Supported | Windows 10,Windows 8.1,Windows 7,Windows Server 2019,Windows Server 2016,Windows Server 2012 R2,Windows Server 2012,Windows Server 2008 R2,Windows Server 2008,Linux |
| Physical Characteristics | |
| Height | 9.21" (234 mm) |
| Width | 11.81" (300 mm) |
| Depth | 22.72" (577 mm) |
| Weight (Approximate) | 19.40 lb (8800 g) |
| Miscellaneous | |
| Package Contents | fi-7280 ADF Scanner ADF Paper Chute AC Cable AC Adapter USB Cable Setup DVD-ROM |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What is the maximum scanning speed of the Fujitsu fi-7280 scanner?
The Fujitsu fi-7280 scans at 80 pages per minute in both color and monochrome modes. This speed is maintained across different document types, and the scanner can achieve 160 images per minute when operating at 200 dpi resolution. The consistent performance in both color and mono makes it efficient for mixed document workflows.
Does this scanner support automatic duplex scanning?
Yes, the Fujitsu fi-7280 features automatic duplex scanning capability. It can scan both sides of a document in a single pass through the automatic document feeder, saving time on two-sided originals like contracts, reports, and correspondence. The scanning mode can be set to simplex or duplex based on your specific document requirements.
What types of media can the fi-7280 scanner handle?
The scanner accommodates standard paper sizes including A4 and A8, plus specialized media like plastic cards. The automatic document feeder handles sheets up to 1.40 mm (55.12 mil) thickness, while the flatbed is suitable for bound materials, photographs, and delicate originals that cannot go through the ADF.
What is the capacity of the automatic document feeder?
The automatic document feeder holds up to 80 sheets for continuous batch scanning. This capacity minimizes operator intervention during extended scanning sessions and supports efficient processing of multi-page documents. The ADF works with both simplex and duplex scanning modes.
What connectivity options does the scanner offer?
The Fujitsu fi-7280 connects via USB interface supporting USB 1.1, USB 2.0, and USB 3.0 standards. This broad compatibility ensures the scanner works with both legacy systems and modern computers. The included USB cable provides the physical connection between the scanner and your workstation or server.
Which operating systems are compatible with this scanner?
The scanner supports Windows 10, Windows 8.1, Windows 7, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, and various Linux distributions. This wide compatibility allows deployment in diverse IT environments including mixed Windows and Linux setups.
What sheet capacity, media size, or paper handling detail is listed?
The listed power specification is A4,A8, which helps position the unit for the right load level and installation role.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
