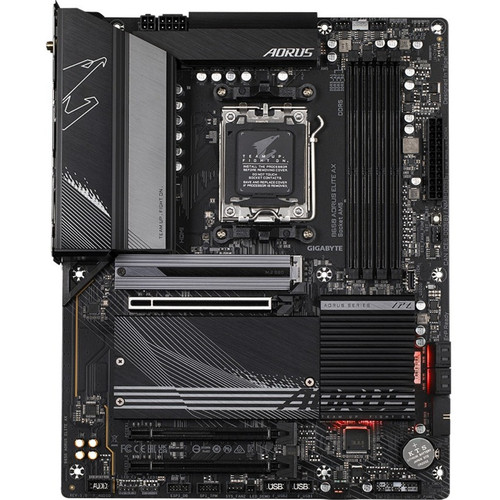

GIGABYTE B650 ELITE AX Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - ATX - Ryzen Processor Supported - 128 GB DDR5 RAM (B650 AORUS ELITE AX)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Chipset Manufacturer: AMD
Chipset Model: B650
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 128 GB
Memory Speed Supported: 6666 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5600 MHz,5200 MHz,4800 MHz,4400 MHz
Memory Technology: DDR5 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,10,1
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 3
PCI Express Standard: PCI Express 3.0,PCI Express 4.0
Total Number of USB Ports: 12
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 1 Ports: 5
Number of USB 3.2 Gen 2 Type-A Ports: 2
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Form Factor: ATX
Width: 12.01" (305 mm)
Depth: 9.61" (244 mm)
- Compatible Ryzen processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- Enjoy the freedom of Wi-Fi and connect devices faster
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
- 4 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
[custom-specifications]
| Specifications | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | B650 AORUS ELITE AX |
| Manufacturer Website Address | http://www.gigabyte.com |
| Brand Name | GIGABYTE |
| Product Model | B650 ELITE AX |
| Product Name | Elite Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 6666 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5600 MHz,5200 MHz,4800 MHz,4400 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,10,1 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 3.0,PCI Express 4.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 12 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 5 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12.01" (305 mm) |
| Depth | 9.61" (244 mm) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf5
Additional-pdf4
Additional-pdf2
Additional-pdf1
Additional-pdf3
[/custom-user-manual]
