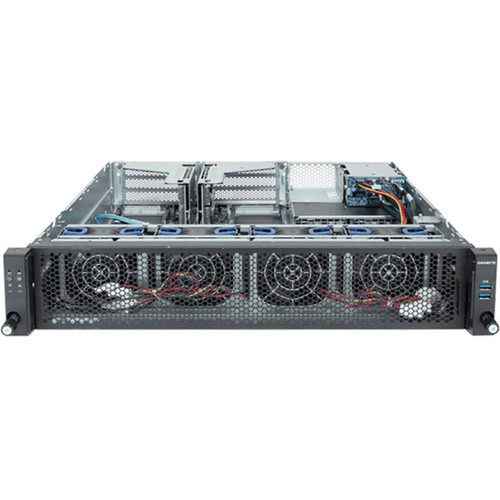

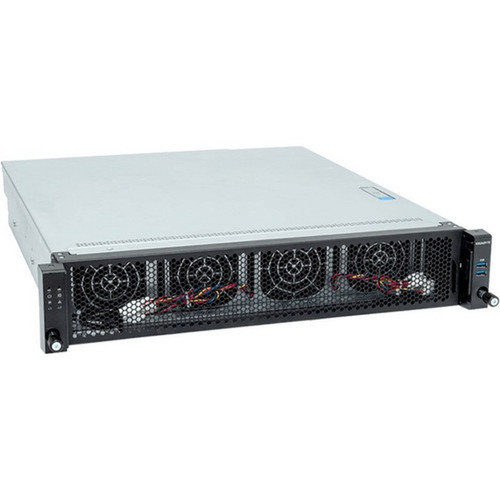

Gigabyte E263-S30-AAD1 Rackmount Barebone Server Chassis - 2U - LGA-4677256GB DDR5 - Dual PSU - 4x PCIe x16
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system integrates advanced server-grade components to support demanding IT operations. The memory architecture utilizes DDR5 SDRAM technology at DDR5-4800/PC5-38400 speeds, providing efficient data movement across components for responsive system performance. Storage management is handled by a Serial ATA/600 controller with RAID support, enabling fast data transfer and higher throughput for intensive workloads.
Network connectivity is delivered through Gigabit Ethernet, supporting ultra-fast data transfer for smooth network performance. The system's expansion flexibility includes four PCI Express x16 slots and two total expansion bays, allowing for additional networking cards, storage controllers, or accelerators. Integrated graphics are managed by an AST2600 controller, while four USB 3.2 Gen 1 ports facilitate peripheral connectivity.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The E263-S30-AAD1 delivers enterprise-grade reliability through its rack-optimized design and comprehensive feature set. The system's 2U form factor maximizes rack space efficiency while maintaining accessibility for maintenance. Environmental compliance with RoHS and WEEE directives demonstrates commitment to sustainable manufacturing practices.
High-Density Memory Support
With 16 memory slots supporting up to 256GB of DDR5-4800, this chassis accommodates substantial memory configurations for virtualization, in-memory databases, and high-performance computing applications.
Robust Expansion Capability
Four PCIe x16 slots provide extensive expansion options for adding network adapters, GPU accelerators, or storage controllers, enabling tailored configurations for specific workload requirements.
Power Redundancy
Dual 1.60 kW power supplies with automatic voltage switching between 120V and 230V AC ensure continuous operation and protection against power disruptions in critical server environments.
Deployment / Use Cases
This barebone server chassis is designed for IT professionals building customized server solutions for business-critical applications. The platform's compatibility with Intel Xeon Platinum, Gold, and Silver processors allows for performance scaling based on computational requirements, from general-purpose server duties to specialized compute tasks.
The rack-mountable design ensures organized, clutter-free installations in standard server racks, improving accessibility and maintenance efficiency. System builders can leverage the chassis's expansion capabilities to create tailored solutions for specific roles such as network appliances, storage servers, or application hosting platforms.
Virtualization Host
Ideal for hosting virtual machines in data centers, with ample memory capacity and PCIe expansion for network virtualization and storage acceleration cards.
Database Server
Supports memory-intensive database applications through high-bandwidth DDR5 memory and RAID-capable storage controllers for data integrity and performance.
Physical Profile
The chassis features a compact 2U rack-mountable form factor with dimensions of 3.44" (87.50 mm) height, 17.24" (438 mm) width, and 20.47" (520 mm) depth. This standardized sizing ensures compatibility with mainstream server racks while optimizing rack space utilization. The design facilitates efficient airflow and thermal management essential for sustained server operation in data center environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2U, 17.24" (438 mm), 20.47" (520 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.24" (438 mm)
- Depth
- 20.47" (520 mm)
- Height
- 2U
What's in the Box
The package includes all essential components for initial system assembly and basic connectivity.
Highlights
- 2U rackmount barebone server chassis for space-efficient data center deployment
- Supports single Intel Xeon Platinum/Gold/Silver processors on LGA-4677 socket
- Up to 256GB DDR5-4800 memory across 16 slots for high-bandwidth performance
- Four PCI Express x16 slots for extensive expansion capabilities
- Dual 1.60 kW power supplies with 120/230V AC input for redundancy
- Serial ATA/600 controller with RAID support for storage management
- Gigabit Ethernet connectivity for fast network data transfer
- Four USB 3.2 Gen 1 ports for peripheral connectivity
- Intel C741 chipset for robust platform foundation
- 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | E263S30AAD1 |
| Brand Name | GIGABYTE |
| Product Model | E263-S30 |
| Product Name | E263-S30 (rev. AAD1) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-4677 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 16 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Total Number of Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 4 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.60 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.24" (438 mm) |
| Depth | 20.47" (520 mm) |
| Miscellaneous | |
| Package Contents | E263-S30 (rev. AAD1) Barebone System 1 x CPU Heatsink 1 x Mini-DP to D-Sub Cable 3 x Carrier Clips |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this barebone server chassis?
The Gigabyte E263-S30-AAD1 supports a single Intel Xeon processor on the LGA-4677 socket. Compatible processor families include Xeon Platinum, Xeon Gold, Xeon Silver, and standard Xeon processors, all featuring 64-bit processing architecture. This compatibility allows system builders to select the appropriate CPU performance level for their specific workload requirements.
How much memory can this server chassis support?
This chassis supports up to 256GB of DDR5 SDRAM memory across 16 memory slots. The memory operates at DDR5-4800/PC5-38400 speeds, providing high bandwidth for data-intensive applications. The system is also Intel Optane Memory Ready, offering potential for additional memory acceleration technologies when configured with compatible components.
What expansion capabilities does this barebone system offer?
The system provides substantial expansion through four PCI Express x16 slots and two total expansion bays. These slots accommodate additional networking cards, storage controllers, GPU accelerators, or other PCIe devices. The chassis also includes a Serial ATA/600 controller with RAID support for storage management and four USB 3.2 Gen 1 ports for peripheral connectivity.
What power supply configuration does this server use?
The chassis includes two 1.60 kW power supplies installed for redundancy and reliability. These power supplies support automatic input voltage switching between 120V AC and 230V AC, making them suitable for deployment in various geographical regions. The dual power supply configuration helps ensure continuous operation in the event of a single power supply failure.
What are the physical dimensions of this rackmount chassis?
The chassis has a 2U rack height form factor with dimensions of 3.44 inches (87.50 mm) in height, 17.24 inches (438 mm) in width, and 20.47 inches (520 mm) in depth. This compact design maximizes rack space efficiency while maintaining standard server rack compatibility. The 2U height provides sufficient internal space for components while remaining accessible for maintenance.
What warranty coverage comes with this barebone system?
Gigabyte provides a 3-year limited warranty for the E263-S30-AAD1 barebone system. This warranty covers manufacturing defects and ensures reliable operation for enterprise deployments. The system also complies with environmental standards including Restriction of Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment Directive (WEEE) requirements.
