Gigabyte E283-S90-AAD1 2U Rackmount Barebone System - Dual Socket LGA-4677256GB DDR5 - 8x PCIe x16 - 2 x 1. 6kW PSUs
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Processor Architecture
The system features dual Socket LGA-4677 processors supporting Intel Xeon Platinum, Gold, Silver, and Xeon processors. This dual-socket configuration enables substantial parallel processing power for virtualization, database applications, and computational workloads.
- Dual processor support for enhanced multi-threaded performance
- Compatible with Intel Xeon processor families
- 64-bit processing architecture
Memory & Storage Subsystem
With 32 DDR5 memory slots supporting up to 256GB of DDR5-4800 memory, this system delivers high-bandwidth memory performance. The storage subsystem includes Serial ATA/600 controllers with RAID support for data protection and performance optimization.
- 32 memory slots for maximum configuration flexibility
- DDR5 technology for improved bandwidth and efficiency
- Intel Optane Memory Ready for accelerated storage options
Key Product Advantages
This barebone system combines enterprise-grade components with thoughtful design to deliver reliable performance in rack-mounted environments. The dual redundant power supplies ensure continuous operation, while the extensive expansion capabilities allow for customization to meet specific workload requirements.
Expansion Flexibility
With 8 PCI Express x16 slots and 4 expansion bays, this system supports substantial add-in card configurations for networking, storage, or specialized computing accelerators.
- 8 full-length PCIe x16 slots for high-bandwidth cards
- 4 expansion bays for storage or optical drives
- Flexible configuration for specialized workloads
Enterprise Reliability
The system includes dual 1.6kW power supplies with automatic failover, Gigabit Ethernet connectivity, and a 3-year limited warranty for peace of mind in production environments.
- Dual redundant power supplies
- Gigabit Ethernet for network connectivity
- 3-year manufacturer warranty
Deployment / Use Cases
The E283-S90-AAD1 barebone system is ideal for organizations requiring scalable computing infrastructure in standardized rack environments. Its balanced configuration of processing power, memory capacity, and expansion options makes it suitable for multiple deployment scenarios.
Common applications include virtualization hosts running multiple virtual machines, database servers requiring high memory bandwidth, computational workstations for engineering and scientific applications, and storage servers with RAID-protected data. The 2U form factor optimizes rack space while providing substantial computing resources.
Virtualization Platform
With dual processor support and extensive memory capacity, this system serves as an excellent foundation for virtualization hosts running VMware, Hyper-V, or other hypervisor platforms.
High-Performance Computing
The combination of dual sockets, DDR5 memory, and multiple PCIe x16 slots supports demanding computational workloads in research, engineering, and data analytics applications.

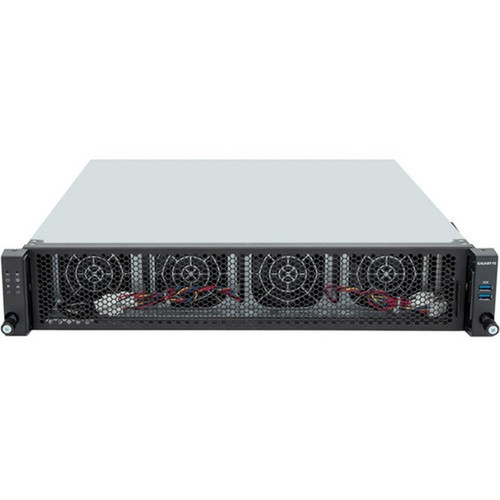

Physical Profile
The system employs a standard 2U rack-mountable form factor measuring 3.44 inches in height, 17.24 inches in width, and 24.61 inches in depth. This compact design maximizes computing density in standard 19-inch server racks while maintaining adequate airflow for component cooling. The rack-mount design includes proper ventilation and cable management features for organized data center deployments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2U, 17.24" (438 mm), 24.61" (625 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.24" (438 mm)
- Depth
- 24.61" (625 mm)
- Height
- 2U
What's in the Box
This barebone system package includes all essential components for initial setup and processor installation.
Highlights
- Dual Socket LGA-4677 supports Intel Xeon Platinum, Gold, Silver, and Xeon processors
- 256 GB maximum DDR5 SDRAM across 32 memory slots
- 8 PCI Express x16 slots for extensive expansion capabilities
- Dual 1.60 kW power supplies with 120V/230V input support
- 2U rack-mountable form factor for data center deployment
- Serial ATA/600 controller with RAID support
- 4 USB 3.2 Gen 1 ports for peripheral connectivity
- Gigabit Ethernet for network communication
- Includes CPU heatsinks and necessary installation components
- 3-year limited warranty for reliable operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | E283S90AAD1 |
| Brand Name | GIGABYTE |
| Product Model | E283-S90 |
| Product Name | E283-S90 (rev. AAD1) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4677 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 32 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Graphics Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Total Number of Expansion Slots | 8 |
| Number of PCI Express x16 Slots | 8 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.60 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.24" (438 mm) |
| Depth | 24.61" (625 mm) |
| Miscellaneous | |
| Package Contents | E283-S90 (rev. AAD1) Barebone System 2 x CPU Heatsinks 1 x Mini-DP To D-Sub cable 6 x Carrier Clips |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with this barebone system?
The Gigabyte E283-S90-AAD1 supports Intel Xeon processors including Xeon Platinum, Xeon Gold, Xeon Silver, and Xeon families using the Socket LGA-4677 interface. This dual-socket configuration allows for substantial processing power suitable for enterprise applications, virtualization, and computational workloads.
How much memory can this system support?
This barebone system supports up to 256 GB of DDR5 SDRAM across 32 memory slots. The memory operates at DDR5-4800/PC5-38400 speeds, providing high bandwidth for memory-intensive applications. The system is also Intel Optane Memory Ready for additional storage acceleration options.
What expansion capabilities does this system offer?
The system provides extensive expansion with 8 PCI Express x16 slots and 4 total expansion bays. These slots support high-bandwidth add-in cards for networking, storage controllers, GPUs, or specialized computing accelerators, making the platform highly configurable for specific workload requirements.
What power supplies are included with this system?
The system includes dual 1.60 kW power supplies that support both 120V and 230V input voltages. This redundant power configuration ensures continuous operation in the event of a single power supply failure, providing reliability for critical server deployments in data center environments.
What is the form factor and rack mounting specifications?
This is a 2U rack-mountable system measuring 3.44 inches in height, 17.24 inches in width, and 24.61 inches in depth. The 2U form factor optimizes rack space while providing adequate cooling and component accessibility in standard 19-inch server racks commonly used in data centers.
What components are included in the package?
The package includes the E283-S90 (rev. AAD1) barebone system chassis with motherboard, 2 CPU heatsinks for processor cooling, 1 Mini-DP to D-Sub cable for display connectivity, and 6 carrier clips for component installation. These components provide everything needed for initial setup and processor installation.
