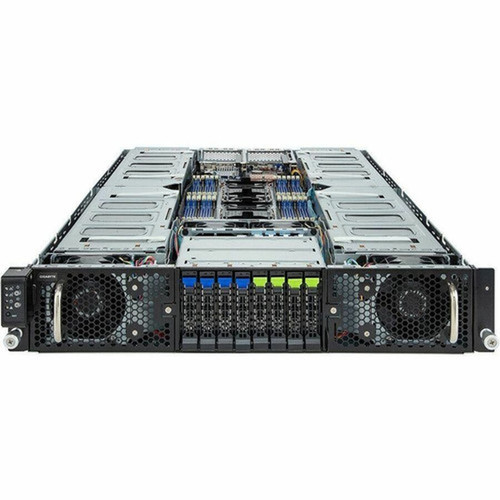

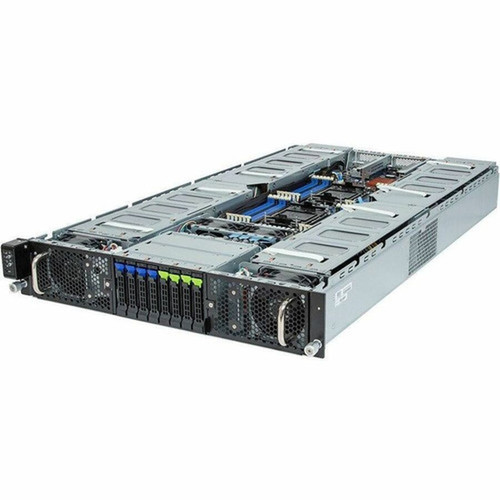

Gigabyte G293-S42-AAP1 2U Rack Barebone System - Dual LGA-4677256GB DDR5 - 10GbE - 3kW PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system supports up to 256 GB of DDR5 SDRAM running at DDR5-4800/PC5-38400 speeds, providing substantial memory bandwidth for memory-intensive workloads. Storage flexibility comes through Serial ATA/600 and NVMe controller support with hardware RAID 0, 1, 5, and 10 capabilities for data protection and performance optimization.
The expansion architecture includes 10 PCI Express x16 slots and 8 total expansion bays, allowing for significant customization with storage drives, network adapters, and specialized accelerator cards. Integrated graphics are handled by an AST2600 controller with DDR4 SDRAM, while connectivity includes 2 USB 3.2 Gen 1 ports and a VGA port for local management.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The G293-S42-AAP1 delivers enterprise server capabilities in a compact 2U form factor, balancing high-density deployment with powerful expansion options. The dual processor support and substantial memory capacity make this system suitable for virtualization, database hosting, and computational workloads that require scalable performance.
Advanced Memory Architecture
DDR5 SDRAM technology provides increased bandwidth and efficiency compared to previous generations, supporting data-intensive applications with improved performance per watt.
- DDR5-4800/PC5-38400 speeds
- Up to 256 GB capacity
- Enhanced error correction
Comprehensive Expansion
With 10 PCIe x16 slots and 8 expansion bays, this chassis accommodates extensive storage arrays, high-speed networking adapters, and specialized accelerator cards for workload optimization.
- 10 PCIe x16 slots
- 8 expansion bays
- Hardware RAID support
Enterprise Power Design
Dual redundant 3 kW power supplies with C19 connectors ensure reliable operation in data center environments, supporting both 120V and 230V input voltages for global deployment.
- Dual redundant PSUs
- 3 kW maximum wattage
- 120V/230V input support
Deployment / Use Cases
This barebone server chassis is designed for IT professionals building customized server solutions for enterprise applications. The combination of dual processor support, substantial memory capacity, and extensive expansion makes it suitable for virtualization hosts, database servers, and high-performance computing clusters.
The 2U rack-mountable form factor optimizes data center space while providing sufficient internal volume for storage arrays and cooling. Organizations can deploy these systems as hyper-converged infrastructure nodes, private cloud compute resources, or dedicated application servers requiring reliable, scalable hardware foundations.
Virtualization Host
With dual processor support and up to 256 GB of DDR5 memory, this chassis provides the compute and memory resources needed for hosting multiple virtual machines in enterprise environments.
Database Server
The combination of NVMe storage support, hardware RAID protection, and 10 Gigabit Ethernet connectivity delivers the performance and reliability required for transactional and analytical database workloads.
Physical Profile
The G293-S42-AAP1 occupies a standard 2U rack space with dimensions of 3.44" (87.50 mm) height, 17.64" (448 mm) width, and 31.50" (800 mm) depth. This compact form factor maximizes data center density while providing sufficient internal volume for component cooling and airflow management. The rack-mountable design includes a rail kit for secure installation in standard server racks and cabinets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2U, 17.64" (448 mm), 31.50" (800 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.64" (448 mm)
- Depth
- 31.50" (800 mm)
- Height
- 2U
What's in the Box
This barebone system package includes all essential components for server assembly and installation.
Highlights
- Dual Socket LGA-4677 supports Intel Xeon Platinum, Gold, and Silver processors
- Up to 256 GB DDR5 SDRAM at DDR5-4800/PC5-38400 speeds
- 10 PCI Express x16 expansion slots for extensive customization
- 10 Gigabit Ethernet and Gigabit Ethernet networking connectivity
- Dual redundant 3 kW power supplies with C19 connectors
- Hardware RAID 0, 1, 5, and 10 support for data protection
- 2U rack-mountable form factor with included rail kit
- Windows Server 2022 x64 operating system support
- Serial ATA/600 and NVMe storage controller support
- 3-year limited warranty with environmental compliance certifications
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | G293S42AAP1 |
| Brand Name | GIGABYTE |
| Product Model | G293-S42 |
| Product Name | G293-S42 (rev. AAP1) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4677 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Graphics Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 10 |
| Number of PCI Express x16 Slots | 10 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Windows Server 2022 x64 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Plug/Connector Type | C19 |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 3 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.64" (448 mm) |
| Depth | 31.50" (800 mm) |
| Miscellaneous | |
| Package Contents | G293-S42 (rev. AAP1) Barebone System 1 x CPU Heatsink 6 x Carrier Clips 1 x Rail Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with this barebone system?
The G293-S42-AAP1 supports dual Intel Xeon processors in the LGA-4677 socket, including Xeon Platinum, Xeon Gold, and Xeon Silver series. These enterprise-grade processors provide the performance and reliability needed for demanding server workloads, with 64-bit processing capabilities and support for advanced virtualization features.
How much memory can this server chassis support?
This barebone system supports up to 256 GB of DDR5 SDRAM running at DDR5-4800/PC5-38400 speeds. DDR5 memory technology delivers increased bandwidth and improved power efficiency compared to previous generations, making it suitable for memory-intensive applications like virtualization, databases, and high-performance computing.
What storage interfaces are available on this system?
The chassis includes both Serial ATA/600 and NVMe controller support, providing flexibility for different storage configurations. Hardware RAID 0, 1, 5, and 10 are supported for data protection and performance optimization. The 8 expansion bays allow for substantial storage arrays to be configured based on specific workload requirements.
What networking capabilities does this server offer?
Integrated networking includes both 10 Gigabit Ethernet and Gigabit Ethernet interfaces, providing high-speed connectivity for data center and enterprise environments. The 10 PCI Express x16 expansion slots allow for additional network adapters to be installed, supporting specialized networking requirements like fiber channel or additional Ethernet ports.
What power supply configuration does this chassis use?
The system includes dual redundant 3 kW power supplies with C19 connectors, supporting both 120V and 230V input voltages. This redundant power design ensures continuous operation in the event of a single power supply failure, while the 3 kW capacity provides sufficient power for fully configured systems with multiple processors, memory, and expansion cards.
What operating systems are supported by this barebone system?
The G293-S42-AAP1 supports Windows Server 2022 x64, providing a familiar enterprise server environment with comprehensive management tools and security features. The hardware compatibility with this operating system ensures reliable deployment in Windows-based data center environments while supporting the latest server applications and workloads.
