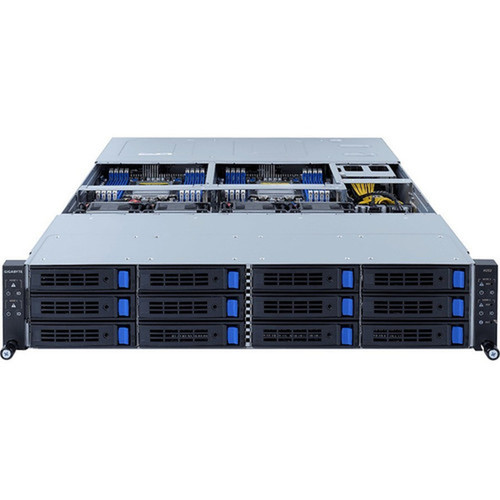

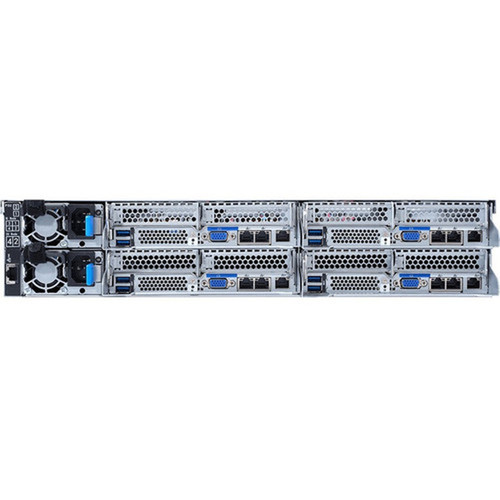

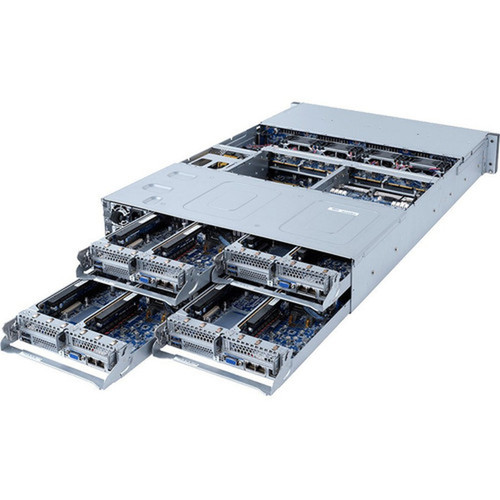

Gigabyte H252-Z12 2U Rackmount Barebone System - Socket LGA-4094256GB DDR4 - 3 PCIe x16 - 12 SATA - Dual PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system centers on the Socket LGA-4094 platform, compatible with AMD EPYC processors for 64-bit computing. The memory subsystem supports up to 256 GB of DDR4-3200 SDRAM across eight DIMM slots, providing high bandwidth for demanding workloads.
Storage flexibility is a key strength, with twelve Serial ATA/600 interfaces and three internal 3.5" drive bays. The system includes three PCI Express x16 expansion slots for adding network, storage, or accelerator cards. Integrated graphics are handled by an AST2500 controller with DDR4 SDRAM.
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The H252-Z12 offers a balanced combination of expansion capacity, power redundancy, and server-grade construction in a compact 2U footprint. Its design prioritizes both performance density and operational reliability for modern data center environments.
High-Density Expansion
Three PCIe x16 slots and twelve SATA interfaces support extensive storage arrays, networking adapters, or computational accelerators without requiring additional chassis space.
- 3 PCIe x16 slots for full-height cards
- 12 SATA ports for direct-attached storage
- 3 internal 3.5" drive bays
Power Resilience
Dual 1.60 kW power supplies with 120/230V AC input provide redundancy for critical applications, ensuring continuous operation during power events or maintenance.
- Hot-swappable PSU design
- Wide voltage input range
- 1.60 kW maximum capacity
Deployment / Use Cases
The H252-Z12 is ideal for virtualization hosts, storage servers, and application servers where rack density, expansion flexibility, and power redundancy are essential. Its barebone configuration allows IT teams to customize processor, memory, and storage to match specific workload requirements.
Common deployments include virtual desktop infrastructure (VDI) hosts, database servers, media rendering nodes, and network appliance platforms. The system's compatibility with Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and Ubuntu makes it suitable for diverse enterprise and cloud environments.
Virtualization Host
Configure with high-core-count EPYC processors and maximum memory to host multiple virtual machines for consolidation projects or private cloud infrastructure.
Storage Server
Utilize the twelve SATA interfaces and three drive bays to build direct-attached storage arrays for backup, archival, or media serving applications.
Physical Profile
The chassis measures 3.44" (87.5 mm) in height, 17.32" (440 mm) in width, and 27.36" (695 mm) in depth, conforming to standard 2U rack dimensions. Its steel construction ensures durability while the included rail kit simplifies installation into standard 19" server racks. The compact design maximizes computing density per rack unit without compromising accessibility for maintenance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2U, 17.32" (440 mm), 27.36" (695 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.32" (440 mm)
- Depth
- 27.36" (695 mm)
- Height
- 2U
What's in the Box
The system ships as a complete barebone package ready for component installation.
Highlights
- 2U rackmount barebone system for data center deployment
- Supports AMD EPYC processors via Socket LGA-4094
- Up to 256 GB DDR4-3200 memory across 8 DIMM slots
- Three PCI Express x16 expansion slots
- Twelve Serial ATA/600 interfaces for storage flexibility
- Dual 1.60 kW redundant power supplies
- Compatible with Windows Server, RHEL, SLES, and Ubuntu
- Includes rail kit and four CPU heatsinks
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | H252-Z12 |
| Brand Name | GIGABYTE |
| Product Model | H252-Z12 |
| Product Name | H252-Z12 (rev. A02) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Nodes | 4 |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-4094 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 8 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Graphics Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 3 |
| Number of 3.5" Bays | 3 |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 3.0 Ports | 2 |
| Number of SATA Interfaces | 12 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Windows Server 2016,Windows Server 2019,Windows Server 2022,Red Hat Enterprise Linux 8.3 x64,Red Hat Enterprise Linux 9.0 x64,SUSE Linux Enterprise Server 12 SP5 x64,SUSE Linux Enterprise Server 15 SP2 x64,Ubuntu 18.04.5 LTS x64,Ubuntu 20.04 LTS x64,Ubuntu 22.04 LTS x64 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.60 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 27.36" (695 mm) |
| Miscellaneous | |
| Package Contents | H252-Z12 (rev. A02) Barebone System 4 x CPU Heatsinks 1 x Rail Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processor does the H252-Z12 support?
The H252-Z12 supports AMD EPYC processors using the Socket LGA-4094 interface. This platform enables 64-bit computing with high core counts suitable for virtualization, database, and computational workloads. You will need to purchase the EPYC processor separately as this is a barebone system.
How much memory can this system hold?
This barebone system supports a maximum of 256 GB of DDR4-3200 SDRAM across eight memory slots. The DDR4-3200/PC4-25600 memory standard provides high bandwidth for data-intensive applications. Memory modules are not included and must be purchased separately based on your capacity requirements.
What storage connectivity is available?
The H252-Z12 provides twelve Serial ATA/600 interfaces and three internal 3.5" drive bays for storage expansion. The Serial ATA/600 controller supports high-speed data transfer for hard drives or SSDs, though RAID functionality is not included. This configuration supports direct-attached storage arrays for various server applications.
What expansion slots does it have?
The system includes three PCI Express x16 expansion slots for adding network cards, storage controllers, GPUs, or other accelerators. These full-height slots support standard server expansion cards, allowing customization for specific workload requirements. The total of three expansion slots provides flexibility for diverse deployment scenarios.
What operating systems are supported?
The H252-Z12 is compatible with Windows Server 2016, 2019, and 2022, Red Hat Enterprise Linux 8.3 and 9.0 x64, SUSE Linux Enterprise Server 12 SP5 and 15 SP2 x64, and Ubuntu 18.04.5 LTS, 20.04 LTS, and 22.04 LTS x64. This broad OS support makes the system suitable for enterprise, cloud, and hybrid environments with diverse software requirements.
What power supplies are included?
The system includes two 1.60 kW power supplies that support both 120V and 230V AC input. This dual power supply configuration provides redundancy for critical applications, allowing continuous operation if one power supply fails or during maintenance. The 1.60 kW capacity ensures adequate power for fully configured systems with processors, memory, and expansion cards.
