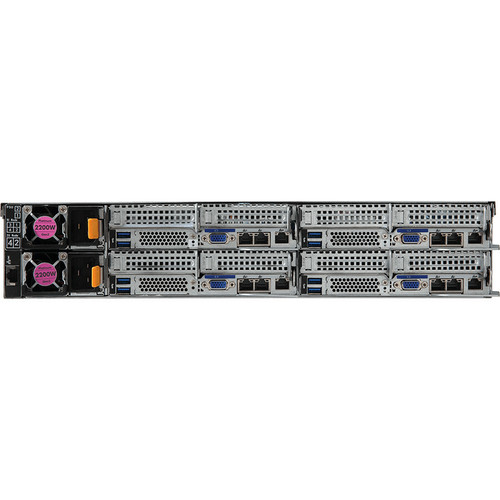

Gigabyte H262-Z63 2U Rackmount Barebone Server - Dual Socket SP3 - EPYC Support - 128GB DDR4 - 16 Slots - 2 x 2. 2kW PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The H262-Z63 incorporates advanced server architecture with dual Socket SP3 processors supporting AMD EPYC CPUs, enabling high-core-count configurations for parallel processing tasks. The AMD chipset provides optimized communication between processor, memory, and expansion components, while the ASPEED AST2500 graphics controller delivers reliable management console functionality.
Memory architecture supports DDR4-3200/PC4-25600 modules across 16 DIMM slots, providing substantial bandwidth for data-intensive applications. The system includes three PCI Express x16 expansion slots for adding network adapters, storage controllers, or specialized compute accelerators, plus two expansion bays for additional storage devices.
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The H262-Z63 delivers enterprise server capabilities in a compact 2U form factor, balancing compute density with deployment flexibility. Dual processor support enables scalable performance configurations, while redundant power supplies ensure continuous operation in critical environments.
High-Density Compute
Dual Socket SP3 architecture supports AMD EPYC processors with high core counts, providing substantial parallel processing capability for virtualization, database, and HPC workloads.
- 64-bit processing architecture
- AMD chipset optimization
- Enterprise-grade thermal design
Comprehensive Expansion
Three PCIe x16 slots and two expansion bays enable flexible configuration with network adapters, storage controllers, or specialized accelerators to match specific workload requirements.
- Multiple expansion options
- Storage bay flexibility
- High-bandwidth connectivity
Reliable Power Architecture
Dual 2.2kW power supplies with 120V/230V input support provide redundant power delivery, ensuring continuous operation and protection against power supply failures.
- Redundant power design
- Dual voltage input
- High-efficiency operation
Deployment / Use Cases
The Gigabyte H262-Z63 barebone server is engineered for enterprise and data center environments where compute density, reliability, and expansion flexibility are paramount. Its dual processor architecture and substantial memory capacity make it suitable for virtualization hosts, database servers, and high-performance computing nodes.
In virtualized environments, the system can host multiple virtual machines with dedicated compute resources, while the PCIe expansion slots allow for network segmentation or storage acceleration. For database applications, the memory capacity supports large in-memory datasets, and the processor architecture ensures responsive query performance.
Virtualization Host
Deploy as a hypervisor platform for VMware, Hyper-V, or KVM environments, leveraging dual processor support and high memory capacity for efficient VM consolidation.
Enterprise Application Server
Run business applications, database systems, or middleware platforms with the reliability and performance required for 24/7 operation in corporate data centers.
Physical Profile
Designed for standard 19-inch server racks, the H262-Z63 occupies 2U of vertical space with dimensions of 3.44 inches in height, 17.32 inches in width, and 33.07 inches in depth. The compact 2U form factor maximizes rack density while providing sufficient internal space for components and airflow.
The rack-mountable design includes integrated mounting hardware for secure installation in data center environments. The system's physical layout optimizes component accessibility for maintenance while maintaining efficient thermal management through strategic airflow design.
- Width
- 17.32" (440 mm)
- Depth
- 33.07" (840 mm)
- Height
- 2U
What's in the Box
The H262-Z63 barebone system package includes all essential components for server deployment, requiring only the addition of processors, memory, storage, and operating system.
Highlights
- Dual Socket SP3 support for AMD EPYC processors
- Up to 128GB DDR4 memory across 16 slots
- 2U rack-mountable form factor for data center deployment
- Three PCI Express x16 expansion slots
- Dual 2.2kW power supplies with redundant operation
- Comprehensive OS support including Windows Server and multiple Linux distributions
- Gigabit Ethernet connectivity for network integration
- Two USB 3.0 ports for peripheral connectivity
- RoHS compliant for environmental responsibility
- One-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | H262-Z63 |
| Brand Name | GIGABYTE |
| Product Model | H262-Z63 |
| Product Name | H262-Z63 (rev. 100) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Nodes | 4 |
| Number of Processors Supported | 2 |
| Processor Socket | Socket SP3 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 16 |
| Display & Graphics | |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Operating System | |
| Operating System Supported | Windows Server 2016,Windows Server 2019,Red Hat Enterprise Linux 7.6 x64,Red Hat Enterprise Linux 8.0 x64,SuSE Linux Enterprise Server 12 x64,SuSE Linux Enterprise Server 15 x64,Ubuntu 18.04.2 LTS x64,Ubuntu 16.04.6 LTS x64 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 2.20 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 33.07" (840 mm) |
| Miscellaneous | |
| Package Contents | H262-Z63 (rev. 100) Barebone System 8 x CPU Heatsinks 1 x Rail Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What processors are compatible with the H262-Z63 barebone server?
The H262-Z63 supports AMD EPYC processors using the Socket SP3 interface. This server platform accommodates dual processors, enabling high-core-count configurations for demanding computational workloads. The 64-bit processing architecture ensures compatibility with modern enterprise applications and operating systems.
How much memory can the H262-Z63 support and what type does it use?
This barebone system supports up to 128GB of DDR4 SDRAM across 16 memory slots. The memory standard is DDR4-3200/PC4-25600, providing high bandwidth for data-intensive applications. The substantial memory capacity makes the server suitable for virtualization, database, and in-memory computing workloads.
What expansion capabilities does the H262-Z63 provide?
The server includes three PCI Express x16 expansion slots for adding network adapters, storage controllers, or specialized accelerators. Additionally, there are two expansion bays for storage devices and two USB 3.0 ports for peripheral connectivity. This expansion flexibility allows customization for specific workload requirements.
What power supply configuration does the H262-Z63 use?
The system includes dual 2.2kW power supplies that operate redundantly to ensure continuous power delivery. These power supplies support both 120V AC and 230V AC input voltages, providing deployment flexibility across different electrical infrastructures. The redundant design protects against power supply failures in mission-critical environments.
Which operating systems are supported by the H262-Z63?
The barebone server supports Windows Server 2016 and 2019, plus multiple Linux distributions including Red Hat Enterprise Linux 7.6 and 8.0, SUSE Linux Enterprise Server 12 and 15, and Ubuntu 16.04.6 LTS and 18.04.2 LTS. This comprehensive OS compatibility ensures deployment flexibility across heterogeneous IT environments.
What is included in the package with the H262-Z63 barebone system?
The package includes the H262-Z63 (rev. 100) barebone system chassis with motherboard and integrated components, eight CPU heatsinks for processor cooling, and one rail kit for rack mounting. This provides the foundation for building a complete server system with the addition of processors, memory, storage, and operating system.
