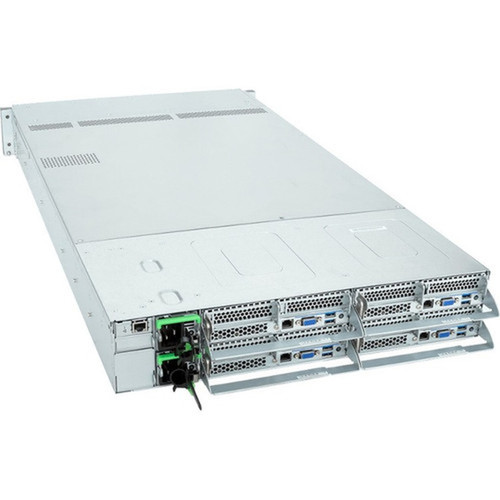

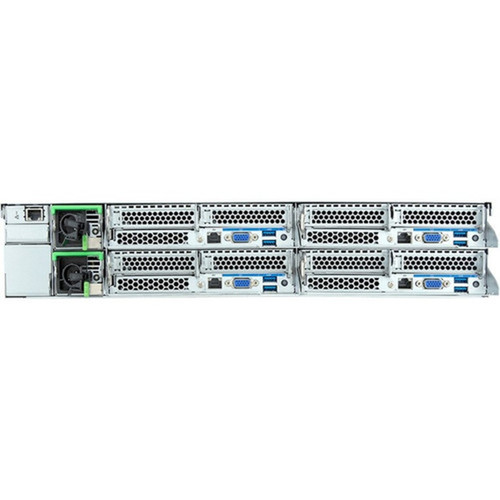

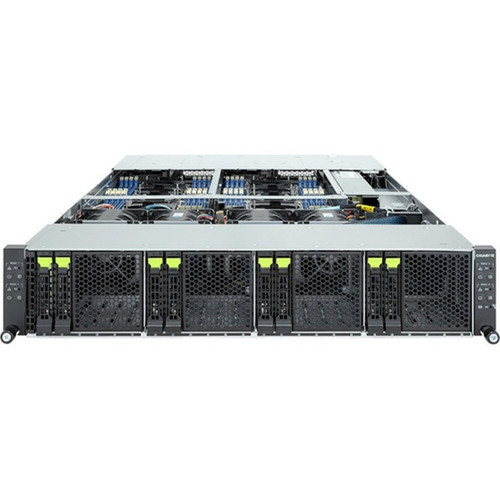

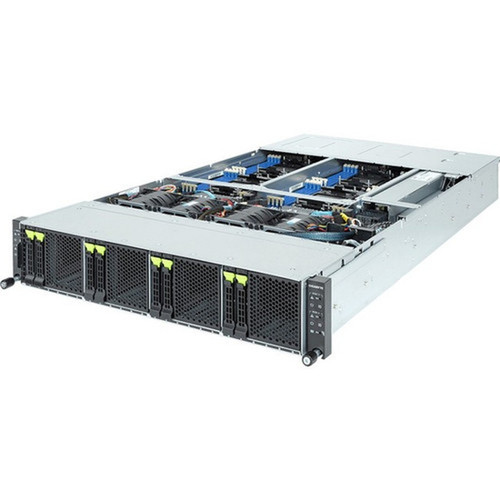

Gigabyte H263-S63-AAW1 2U Rackmount Barebone System - Dual Socket LGA-4677256GB DDR5 - 3 PCIe x16 - 3kW PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system features dual Socket LGA-4677 processor sockets compatible with Intel Xeon Platinum, Gold, Silver, and Xeon processor families. The Intel C741 chipset provides the foundation for enterprise-level memory and I/O capabilities, supporting up to 256 GB of DDR5 SDRAM across 16 memory slots.
Storage connectivity is handled by Serial ATA/600 controllers with RAID support, while expansion capabilities include three PCI Express x16 slots and two expansion bays for additional storage or specialized hardware. The integrated AST2600 graphics controller with DDR4 SDRAM provides basic display output through a VGA port.
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone system delivers enterprise-ready infrastructure with dual processor support and high-density memory capacity in a compact 2U form factor. The platform is designed for reliability and scalability in data center environments.
High-Density Compute
Support for dual Intel Xeon processors and 256 GB of DDR5 memory enables substantial computational power for virtualization, database, and application server workloads.
- Dual Socket LGA-4677
- 16 DDR5 memory slots
- Intel C741 chipset
Enterprise Expansion
Three PCIe x16 slots provide flexibility for adding network adapters, storage controllers, or specialized accelerator cards to meet specific workload requirements.
- 3 PCIe x16 slots
- 2 expansion bays
- Gigabit Ethernet
Reliable Power Infrastructure
Dual 3 kW power supplies with C19 connectors deliver redundant power for continuous operation, supporting both 120V and 230V input voltages.
- Dual power supplies
- 3 kW capacity
- 120V/230V input
Deployment / Use Cases
The H263-S63-AAW1 barebone system is designed for deployment in enterprise data centers, cloud infrastructure, and high-performance computing environments where compute density and reliability are paramount.
This platform serves as an ideal foundation for virtualization hosts, database servers, application servers, and computational nodes in clustered environments. The 2U form factor optimizes rack space utilization while providing substantial expansion capabilities through PCIe slots and storage bays.
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Virtualization Host
Dual processor sockets and extensive memory capacity support multiple virtual machines for server consolidation and private cloud deployments.
Database Server
High memory bandwidth from DDR5 technology and RAID-capable storage controllers provide performance for transactional and analytical database workloads.
Physical Profile
This 2U rackmount system measures 3.44 inches (87.50 mm) in height, 17.32 inches (440 mm) in width, and 33.07 inches (840 mm) in depth, fitting standard 19-inch server racks. The compact 2U height optimizes rack density while maintaining adequate airflow for component cooling.
The system includes a rail kit for secure mounting in server racks, and the rack-mountable design facilitates organized deployment in data center environments with convenient front and rear access for maintenance.
- Width
- 17.32" (440 mm)
- Depth
- 33.07" (840 mm)
- Height
- 2U
What's in the Box
The barebone system package includes all essential components for processor and memory installation, along with mounting hardware for rack deployment.
Highlights
- Dual Socket LGA-4677 supports Intel Xeon Platinum, Gold, Silver, and Xeon processors
- 256 GB maximum DDR5 SDRAM capacity across 16 memory slots
- 2U rack-mountable form factor for data center deployment
- Three PCI Express x16 slots for expansion cards
- Dual 3 kW power supplies with C19 connectors
- Serial ATA/600 storage controllers with RAID support
- Gigabit Ethernet connectivity for network integration
- Includes rail kit, CPU heatsinks, and carrier clips for complete installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | H263-S63-AAW1 |
| Brand Name | GIGABYTE |
| Product Model | H263-S63 |
| Product Name | H263-S63 (rev. AAW1) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Nodes | 4 |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4677 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 16 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Graphics Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Plug/Connector Type | C19 |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 3 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 33.07" (840 mm) |
| Miscellaneous | |
| Package Contents | H263-S63 (rev. AAW1) Barebone System 8 x CPU Heatsinks 24 x Carrier Clips 1 x Rail Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with this barebone system?
The Gigabyte H263-S63-AAW1 supports Intel Xeon processors including Platinum, Gold, Silver, and Xeon families through its dual Socket LGA-4677 processor sockets. This compatibility provides flexibility for selecting processors based on core count, frequency, and feature requirements for specific server workloads.
How much memory can this system support?
This barebone system supports up to 256 GB of DDR5 SDRAM across 16 memory slots. The memory operates at DDR5-4800/PC5-38400 speeds, providing high bandwidth for memory-intensive applications. The platform also supports Intel Optane Memory for additional storage acceleration options.
What expansion capabilities does this system offer?
The system provides three PCI Express x16 slots for adding network adapters, storage controllers, GPUs, or specialized accelerator cards. Additionally, it includes two expansion bays for additional storage drives or other hardware, offering substantial flexibility for customizing the server configuration.
What power supplies are included with this barebone system?
The system includes dual 3 kW power supplies with C19 connectors, providing redundant power for continuous operation. These power supplies support both 120V and 230V input voltages, making them compatible with standard North American and international power infrastructure in data centers.
What is included in the package for installation?
The package includes the H263-S63 (rev. AAW1) barebone system chassis, eight CPU heatsinks for processor cooling, 24 carrier clips for securing components, and a complete rail kit for mounting the system in standard 19-inch server racks. These components provide everything needed for processor installation and rack deployment.
What are the physical dimensions of this system?
This 2U rackmount system measures 3.44 inches (87.50 mm) in height, 17.32 inches (440 mm) in width, and 33.07 inches (840 mm) in depth. The 2U form factor optimizes rack space utilization while providing adequate internal volume for components and airflow for effective cooling in data center environments.
