Gigabyte H263-S63-LAW1 2U Rackmount Barebone System - Dual Socket LGA-4677256GB DDR5 - 16 Slots - 2x PCIe x16 - 3kW PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system features a comprehensive technical specification tailored for server deployment. The memory subsystem utilizes DDR5 SDRAM technology operating at DDR5-4800/PC5-38400 speeds, providing substantial bandwidth for data-intensive applications. Storage connectivity is handled by a Serial ATA/600 controller with RAID support, enabling flexible storage configurations.
Network connectivity is provided through Gigabit Ethernet, while system management and basic graphics are supported by an AST2600 graphics controller with VGA output. The system accepts both 120V and 230V AC input, offering deployment flexibility across different power infrastructures. Environmental compliance includes RoHS and WEEE directives, reflecting responsible manufacturing practices.
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
High-Density Compute Platform
With support for dual high-performance Xeon processors and 256 GB of DDR5 memory across 16 slots, this system delivers exceptional compute density in a 2U form factor, maximizing rack space efficiency.
- Dual Socket LGA-4677
- 16 DDR5 memory slots
- Intel C741 chipset
Enterprise-Grade Reliability
Dual redundant 3 kW power supplies with C19 connectors provide power redundancy, while the rack-mountable design with included rail kit ensures secure installation in standard server racks.
- Dual 3 kW power supplies
- 2U rack height
- Included rail kit
Expansion Flexibility
Two PCI Express x16 slots and two expansion bays allow for significant customization with additional network cards, storage controllers, or specialized accelerators to meet specific workload requirements.
- 2 PCIe x16 slots
- 2 expansion bays
- Serial ATA/600 with RAID
Deployment / Use Cases
The H263-S63-LAW1 barebone system is ideally suited for organizations requiring reliable server infrastructure for business-critical applications. Its balanced configuration of processing power, memory capacity, and expansion options makes it adaptable to various deployment scenarios.
In virtualized environments, the dual processor support and substantial memory capacity enable efficient hosting of multiple virtual machines. For database servers, the DDR5 memory bandwidth and storage controller with RAID support ensure responsive data access and integrity. The system also serves well as a computational node in high-performance computing clusters, where its expansion slots can accommodate specialized processing cards.

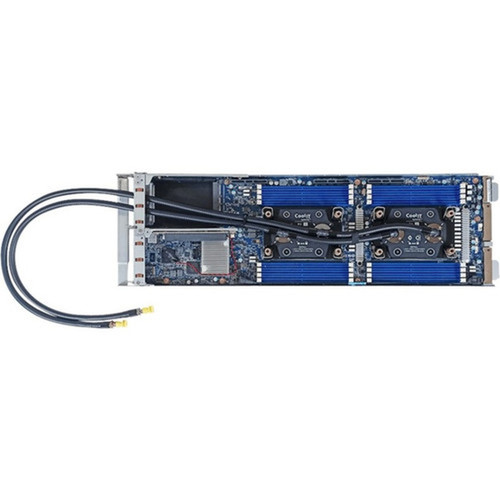

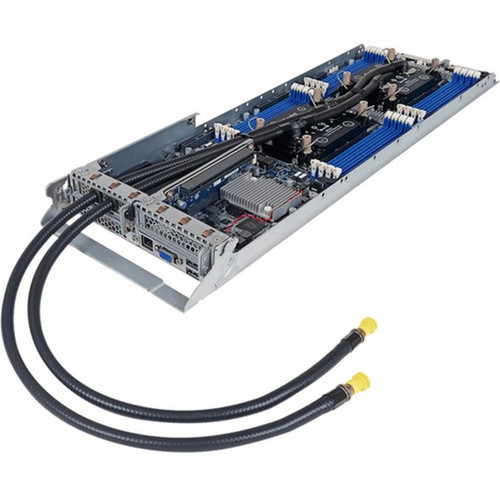

The rack-mountable 2U design makes it particularly valuable for data centers and server rooms where space optimization is crucial. The included liquid cooling solution kit supports thermal management for sustained performance under heavy loads.
Physical Profile

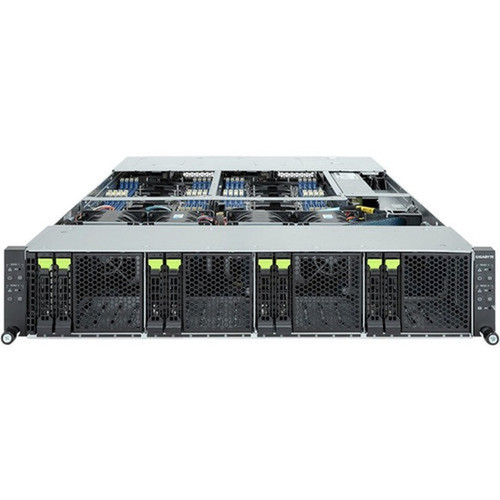

This barebone system occupies a standard 2U rack height, measuring 3.44 inches (87.50 mm) in height, 17.32 inches (440 mm) in width, and 33.07 inches (840 mm) in depth. The rack-mountable form factor includes a rail kit for secure installation in standard 19-inch server racks.
The compact 2U design maximizes computing density while maintaining accessibility for maintenance. The system's dimensions accommodate standard rack configurations while providing sufficient internal space for components and airflow management.
- Width
- 17.32" (440 mm)
- Depth
- 33.07" (840 mm)
- Height
- 2U
What's in the Box
The system ships as a complete barebone package ready for component installation and deployment.
Highlights
- Dual Socket LGA-4677 supports two Intel Xeon Platinum, Gold, or Silver processors
- 16 DDR5 memory slots accommodate up to 256 GB of high-speed RAM
- 2 PCI Express x16 slots for expansion cards and accelerators
- Dual 3 kW power supplies with C19 connectors for redundant power
- Serial ATA/600 controller with RAID support for storage flexibility
- 2U rack-mountable design with included rail kit for server deployment
- Gigabit Ethernet connectivity for network integration
- Intel Optane Memory Ready for future memory technology upgrades
- Includes liquid cooling solution kit for thermal management
- 3-year limited warranty with RoHS and WEEE compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | H263-S63-LAW1 |
| Brand Name | GIGABYTE |
| Product Model | H263-S63 |
| Product Name | H263-S63 (rev. LAW1) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Nodes | 4 |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4677 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 16 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Plug/Connector Type | C19 |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 3 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 33.07" (840 mm) |
| Miscellaneous | |
| Package Contents | H263-S63 (rev. LAW1) Barebone System 1 x Liquid Cooling Solution Kit 24 x Carrier Clips 1 x Rail Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with this barebone system?
The Gigabyte H263-S63-LAW1 supports dual Intel Xeon processors using Socket LGA-4677. This includes processors from the Xeon Platinum, Xeon Gold, and Xeon Silver families. The system requires two compatible Xeon CPUs to be installed for full operation, with the Intel C741 chipset providing platform support for these server-grade processors.
How much memory can this system support and what type does it use?
This barebone system supports up to 256 GB of DDR5 SDRAM memory across 16 memory slots. The memory operates at DDR5-4800/PC5-38400 speeds, providing high bandwidth for server applications. The system is also Intel Optane Memory Ready, allowing for potential future upgrades with persistent memory technology when compatible modules become available.
What expansion capabilities does this system offer?
The system provides two PCI Express x16 slots for expansion cards, along with two total expansion bays for additional storage or other components. The Serial ATA/600 controller supports RAID configurations for storage redundancy and performance. These expansion options allow customization with network cards, storage controllers, GPUs, or specialized accelerators to meet specific workload requirements.
What power supplies are included and what are their specifications?
The system includes two 3 kW power supplies installed, each capable of delivering 3000 watts of power. These power supplies use C19 connectors and accept both 120V and 230V AC input voltages. The dual power supply configuration provides redundancy, ensuring continuous operation if one power supply fails, which is crucial for server environments requiring high availability.
What is included in the package with this barebone system?
The package includes the H263-S63 (rev. LAW1) barebone system chassis with installed components, one liquid cooling solution kit for processor thermal management, 24 carrier clips for component installation, and one rail kit for mounting the system in standard 19-inch server racks. These components provide everything needed to install processors, memory, storage, and expansion cards before deployment.
What are the physical dimensions and rack requirements for this system?
This is a 2U rack-mountable system measuring 3.44 inches (87.50 mm) in height, 17.32 inches (440 mm) in width, and 33.07 inches (840 mm) in depth. The 2U form factor fits standard 19-inch server racks, and the included rail kit facilitates secure installation. These dimensions provide sufficient internal space for components while maximizing computing density in rack environments.
