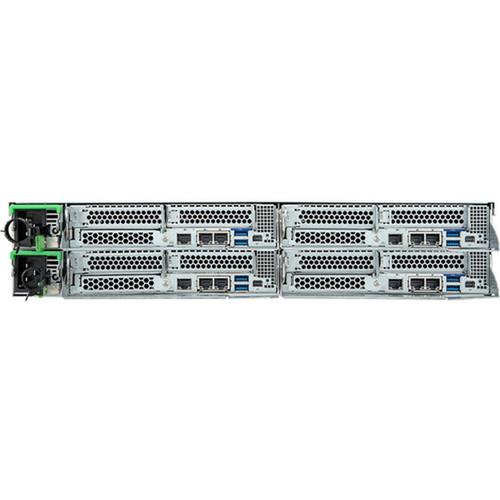

Gigabyte H273-Z80-AAW1 2U Rackmount Barebone Server - Dual Socket SP5 LGA-6096256GB DDR4 - 12Gb/s SAS - 3kW Redundant PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Compute Architecture
Built on AMD's EPYC platform with dual Socket SP5 LGA-6096 processor sockets, supporting 64-bit processing across multiple compute nodes. The system accommodates up to 256GB of DDR4 SDRAM across 24 memory slots, with memory standards supporting DDR5-4800/PC5-38400 for optimal performance.
- Dual processor socket design
- 24 DDR4 memory slots
- AMD chipset foundation
Storage & I/O Configuration
Enterprise storage connectivity includes 12Gb/s SAS and Serial ATA/600 controllers for high-speed storage deployment. The chassis provides six expansion bays and three total expansion slots, including two PCI Express x16 slots for additional networking, storage, or accelerator cards.
- 12Gb/s SAS interface
- 6 expansion bays
- 2 PCIe x16 slots
Key Product Advantages
This barebone server chassis delivers several critical advantages for infrastructure deployment, beginning with its dual processor architecture that doubles compute capacity within a standard 2U rack space. The redundant 3kW power supply configuration ensures continuous operation, while the comprehensive cooling solution with eight included CPU heatsinks maintains optimal thermal performance under load.
Infrastructure Reliability
Dual 3kW power supplies with C19 connectors provide redundant power delivery, supporting both 120V and 230V input voltages. The rack-mountable design includes a complete rail kit for secure installation in standard server racks.
- Redundant power architecture
- Complete rail kit included
- Standard rack compatibility
Deployment / Use Cases
The H273-Z80-AAW1 serves as an ideal foundation for virtualized environments, database servers, and compute-intensive applications where processor and memory scalability are paramount. Its dual socket design supports substantial core counts, making it suitable for virtualization hosts, data analytics platforms, and medium-scale cloud infrastructure.
Enterprise storage applications benefit from the 12Gb/s SAS connectivity, supporting both direct-attached storage configurations and storage area network deployments. The chassis accommodates multiple storage devices across its six expansion bays while providing PCIe expansion for additional storage controllers or network interfaces.
Virtualization & Cloud
Dual processor support and extensive memory capacity enable efficient virtualization with high VM density. The platform supports multiple virtual machines while maintaining performance isolation and resource allocation.
- High VM density
- Memory scalability
- Processor isolation
Data Center Infrastructure
Standard 2U form factor integrates seamlessly into existing rack infrastructure. The chassis supports mixed storage configurations with SAS and SATA devices, providing flexibility for tiered storage deployments.
- Rack standardization
- Mixed storage support
- Infrastructure integration
Physical Profile
Engineered for data center deployment, this 2U chassis measures 3.44 inches in height, 17.32 inches in width, and 34.53 inches in depth, conforming to standard rack dimensions. The compact vertical profile maximizes rack density while providing sufficient internal space for components and airflow. The rack-mountable design includes mounting hardware for secure installation in standard server cabinets.
- Width
- 17.32" (440 mm)
- Depth
- 34.53" (877 mm)
- Height
- 2U
What's in the Box
This barebone system arrives complete with essential components for immediate deployment. The package includes all necessary hardware for processor installation, cooling, and rack mounting.
Highlights
- Dual Socket SP5 LGA-6096 supports AMD EPYC processors for high-core-count computing
- 256GB maximum memory capacity across 24 DDR4 SDRAM slots
- 12Gb/s SAS and SATA/600 storage controllers for enterprise storage connectivity
- 2U rack-mountable form factor with standard rack dimensions
- Dual 3kW redundant power supplies with C19 connectors
- Six expansion bays and three expansion slots for storage and I/O expansion
- Gigabit Ethernet networking with two USB 3.2 Gen 1 ports
- Includes eight CPU heatsinks and complete rail kit for immediate deployment
- Complies with RoHS and WEEE environmental standards
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | H273-Z80-AAW1 |
| Brand Name | GIGABYTE |
| Product Model | H273-Z80 |
| Product Name | H273-Z80 (rev. AAW1) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Nodes | 4 |
| Number of Processors Supported | 2 |
| Processor Socket | Socket SP5 LGA-6096 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 24 |
| Controllers | |
| Controller Type | 12Gb/s SAS,Serial ATA/600 |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 6 |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Plug/Connector Type | C19 |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 3 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 34.53" (877 mm) |
| Miscellaneous | |
| Package Contents | H273-Z80 (rev. AAW1) Barebone System 8 x CPU Heatsink 1 x Rail Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with this barebone server?
The H273-Z80-AAW1 supports AMD EPYC processors using the Socket SP5 LGA-6096 interface. The dual processor socket design accommodates two EPYC CPUs, enabling high-core-count configurations for compute-intensive workloads. This compatibility provides flexibility across multiple EPYC generations within the SP5 socket family.
How much memory can this system support?
This barebone chassis supports up to 256GB of DDR4 SDRAM across 24 memory slots. The memory architecture accommodates DDR5-4800/PC5-38400 standards, providing substantial memory bandwidth for data-intensive applications. The extensive slot count allows for flexible memory configurations using various capacity modules.
What storage interfaces are included?
The system includes 12Gb/s SAS and Serial ATA/600 storage controllers, supporting both enterprise SAS drives and standard SATA devices. These controllers provide high-speed storage connectivity for direct-attached storage configurations, with support for multiple drives across the six available expansion bays.
What expansion capabilities does this chassis offer?
The chassis provides three total expansion slots, including two PCI Express x16 slots for high-bandwidth expansion cards. These slots accommodate additional networking interfaces, storage controllers, or accelerator cards. The six expansion bays support storage device installation, creating a flexible platform for various workload requirements.
What power supply configuration is included?
The system includes dual 3kW power supplies with C19 connectors, providing redundant power delivery for continuous operation. These power supplies support both 120V and 230V input voltages, offering flexibility for different electrical infrastructures. The redundant design ensures power continuity if one supply unit experiences issues.
What is included in the package for installation?
The package contains the H273-Z80 (rev. AAW1) barebone chassis, eight CPU heatsinks for thermal management of both processors and associated components, and a complete rail kit for secure rack mounting. These components provide everything needed for processor installation, cooling, and rack deployment without requiring additional hardware purchases.
