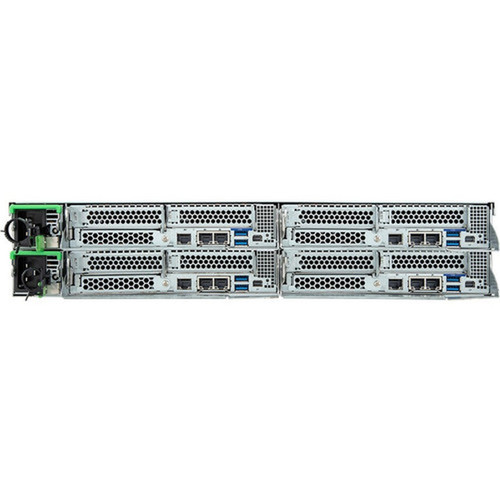

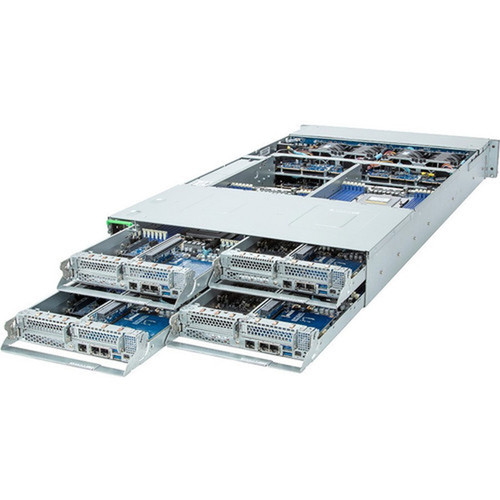

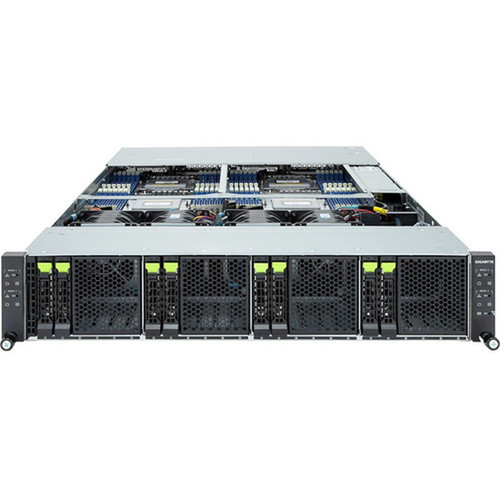

Gigabyte H273-Z82-AAW1 Barebone System - 2U Rackmount - Dual Socket SP5 LGA-6096 - Supports 256GB DDR5 - 24 Slots - 2x PCIe x16 - 3kW PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Memory Architecture
Utilizes DDR5 SDRAM technology at DDR5-4800/PC5-38400 speeds, delivering improved data transfer rates and efficiency over previous generations. The 24 memory slots allow for flexible configurations to match specific workload requirements.
Expansion Flexibility
Features two PCI Express x16 slots for adding high-performance graphics, networking, or storage cards. Two total expansion bays support additional drives, enhancing storage capacity and redundancy options.
Graphics & Management
Integrated AST2600 graphics controller with DDR4 SDRAM provides basic display output for setup and management tasks, ensuring reliable out-of-band administration without requiring a dedicated GPU.
Key Product Advantages
This barebone system combines enterprise-grade reliability with scalable performance, making it an ideal foundation for building custom servers tailored to specific computational needs.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Density Compute, Redundant Power Design, Streamlined Deployment.
High-Density Compute
Dual processor support and extensive memory capacity enable handling of complex, multi-threaded applications efficiently, reducing the need for multiple physical servers.
Redundant Power Design
Dual hot-swappable 3 kW power supplies with wide input voltage range (120-230 V AC) ensure continuous operation and minimize downtime in mission-critical setups.
Streamlined Deployment
Pre-installed rail kit and 2U rack-optimized design facilitate quick integration into existing data center infrastructures, saving time on installation and maintenance.
Deployment / Use Cases
The H273-Z82-AAW1 is suited for environments where customizable, high-performance server hardware is essential. Its balanced configuration supports a range of professional and enterprise applications.
In virtualized infrastructures, the system can host multiple virtual machines, leveraging its dual CPU support and large memory capacity to improve resource allocation and efficiency. For data-intensive tasks like database management or scientific computing, the DDR5 memory and PCIe expansion slots provide the necessary throughput and low-latency connectivity.
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Virtualization Host
Ideal for hypervisor platforms requiring substantial CPU and memory resources to run numerous VMs, enhancing server consolidation and management.
High-Performance Computing Node
Supports computational workloads in research or engineering fields, where parallel processing and fast data access are critical for timely results.
Physical Profile
Designed for standard 19-inch racks, the 2U chassis measures 3.44 inches in height, 17.32 inches in width, and 34.53 inches in depth, offering a compact footprint that maximizes rack density. The rack-mountable form factor includes integrated mounting points and a rail kit for secure installation, ensuring stability and ease of access in data center environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2U, 17.32" (440 mm), 34.53" (877 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.32" (440 mm)
- Depth
- 34.53" (877 mm)
- Height
- 2U
What's in the Box
The package includes all necessary components to assemble a functional barebone system, providing a solid starting point for server builds.
Highlights
- Dual Socket SP5 LGA-6096 supports AMD EPYC processors for high-core-count performance
- Up to 256 GB DDR5 SDRAM across 24 slots for enhanced memory bandwidth
- 2U rack-mountable form factor optimizes data center space efficiency
- Dual 3 kW power supplies with 120/230 V AC input ensure reliable power delivery
- Two PCI Express x16 slots allow for expansion with GPUs or high-speed adapters
- Integrated Gigabit Ethernet provides standard network connectivity
- Serial ATA/600 controller supports high-speed storage devices
- Includes rail kit and eight CPU heatsinks for straightforward deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | H273-Z82-AAW1 |
| Brand Name | GIGABYTE |
| Product Model | H273-Z81 |
| Product Name | H273-Z82 (rev. AAW1) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Nodes | 4 |
| Number of Processors Supported | 2 |
| Processor Socket | Socket SP5 LGA-6096 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 24 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Graphics Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Plug/Connector Type | C19 |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 3 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.44" (87.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 34.53" (877 mm) |
| Miscellaneous | |
| Package Contents | H273-Z82 (rev. AAW1) Barebone System 8 x CPU Heatsink 1 x Rail Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with this barebone system?
The system supports AMD EPYC processors using the Socket SP5 LGA-6096 interface. It accommodates dual processors, enabling high-core-count configurations suitable for parallel computing and virtualization workloads.
How much memory can be installed, and what type is supported?
It supports up to 256 GB of DDR5 SDRAM memory across 24 slots, operating at DDR5-4800/PC5-38400 speeds. This provides substantial capacity and bandwidth for memory-intensive applications like databases or virtual machines.
What expansion slots are available for adding cards?
There are two PCI Express x16 slots, allowing installation of graphics cards, network adapters, or storage controllers. This flexibility supports customization for specific performance or connectivity needs.
What power supplies are included, and are they redundant?
The system includes dual 3 kW power supplies that support 120 V AC and 230 V AC input with C19 connectors. This redundant design ensures continuous operation; if one power supply fails, the other can maintain system functionality.
Is this system rack-mountable, and what are its dimensions?
Yes, it is a 2U rack-mountable chassis with dimensions of 3.44 inches in height, 17.32 inches in width, and 34.53 inches in depth. It fits standard 19-inch racks and includes a rail kit for easy installation.
What comes in the box with this barebone system?
The package includes the H273-Z82 (rev. AAW1) barebone system chassis, eight CPU heatsinks for processor cooling, and one rail kit for rack mounting. These components provide a complete foundation for building a custom server.
