Gigabyte R183-Z90-AAD1 Barebone System - 1U Rack-Mountable - Dual Socket SP5 LGA-6096 - Supports EPYC - 256GB DDR4 - 24 Slots - 12Gb/s SAS/SATA
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system features a comprehensive technical foundation designed for scalability and reliability. The dual processor architecture allows for significant parallel processing capabilities, while the AMD chipset ensures optimal communication between system components. Memory support includes DDR4 SDRAM technology with a DDR5-4800/PC5-38400 memory standard, balancing performance with power efficiency.
Storage connectivity is handled by 12Gb/s SAS and Serial ATA/600 controllers, providing fast data transfer rates suitable for enterprise storage environments. The system includes 4 expansion bays and 2 PCI Express x16 slots for additional storage or network adapters, while 4 USB 3.2 Gen 1 ports offer peripheral connectivity. Network communication is managed through Gigabit Ethernet technology for reliable network uplinks.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The R183-Z90-AAD1 delivers several distinct advantages for IT infrastructure deployments. Its 1U form factor maximizes rack space utilization while maintaining full server capabilities, making it ideal for data centers with limited physical footprint. The dual processor support and extensive memory capacity enable robust performance for compute-intensive applications without requiring multiple physical servers.
High-Density Design
The 1U rack-mountable chassis occupies minimal vertical space while delivering dual-processor performance, allowing more compute power per rack unit compared to traditional server configurations.
- 1U height: 1.71" (43.50 mm)
- Width: 17.24" (438 mm)
- Depth: 32.09" (815 mm)
Enterprise Storage Ready
12Gb/s SAS connectivity provides exceptional speed and reliability for enterprise storage systems, supporting high-performance storage arrays and backup solutions with fast data transfer rates.
- 12Gb/s SAS interface
- Serial ATA/600 compatibility
- 4 expansion bays for drives
Power Redundancy
Dual 1.6 kW power supplies with 120V/230V input voltage support ensure continuous operation through power supply redundancy, critical for mission-critical server applications.
- Dual power supplies
- 1.60 kW maximum wattage
- 120-230V AC input range
Deployment / Use Cases
This barebone system is particularly well-suited for environments requiring high compute density and reliable server infrastructure. Its compact 1U form factor makes it ideal for data center deployments where rack space is at a premium, allowing organizations to maximize computing power within limited physical footprints.
The platform excels in virtualization host scenarios, where the dual processor support and substantial memory capacity enable efficient running of multiple virtual machines. It also serves well as a database server, web hosting platform, or computational node in high-performance computing clusters. The 12Gb/s SAS connectivity makes it suitable for storage server applications, while the redundant power supplies ensure reliability for business-critical operations.
Virtualization Host
With dual processor support and 256GB memory capacity, this system can efficiently host multiple virtual machines, consolidating server workloads and reducing physical server count.
High-Density Data Center
The 1U form factor allows deployment of multiple units in standard server racks, maximizing compute density for cloud service providers and enterprise data centers.
Physical Profile

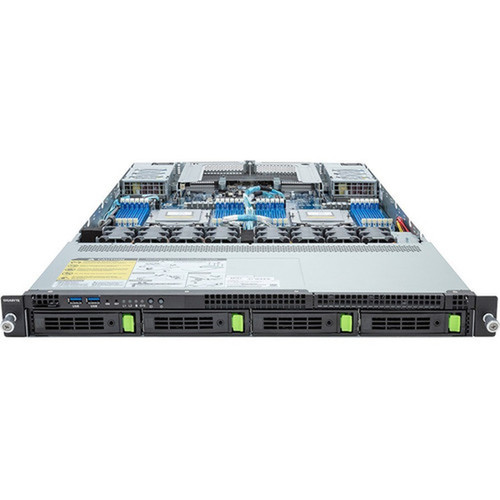

The R183-Z90-AAD1 features a standard 1U rack-mountable chassis with dimensions optimized for data center deployment. With a height of just 1.71 inches (43.50 mm), it fits seamlessly into standard 19-inch server racks while providing full server capabilities. The chassis design includes proper ventilation and component layout for optimal thermal management in dense server environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.24" (438 mm), 32.09" (815 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.24" (438 mm)
- Depth
- 32.09" (815 mm)
- Height
- 1U
Highlights
- 1U rack-mountable form factor for high-density server deployments
- Dual Socket SP5 LGA-6096 support for AMD EPYC processors
- Supports up to 256 GB DDR4 memory across 24 memory slots
- 12Gb/s SAS and Serial ATA/600 controllers for high-speed storage
- Dual 1.6 kW power supplies with 120V/230V input voltage support
- 4 USB 3.2 Gen 1 ports for peripheral connectivity
- Gigabit Ethernet for reliable network communication
- 4 expansion bays and 2 PCI Express x16 slots for additional components
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | R183-Z90-AAD1 |
| Brand Name | GIGABYTE |
| Product Model | R183-Z90 (rev. AAD1) |
| Product Name | R183-Z90 (rev. AAD1) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket SP5 LGA-6096 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 24 |
| Controllers | |
| Controller Type | 12Gb/s SAS,Serial ATA/600 |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.60 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.71" (43.50 mm) |
| Width | 17.24" (438 mm) |
| Depth | 32.09" (815 mm) |
FAQ
What processors are compatible with this barebone system?
The Gigabyte R183-Z90-AAD1 supports AMD EPYC processors through dual Socket SP5 LGA-6096 sockets. This platform is designed for enterprise-grade 64-bit processing and can accommodate two EPYC processors simultaneously for enhanced parallel computing capabilities.
How much memory can this system support and what type?
This barebone system supports up to 256 GB of DDR4 SDRAM memory across 24 memory slots. The memory standard is DDR5-4800/PC5-38400, providing high-speed operation with efficient power consumption for optimal performance in server applications.
What storage interfaces are available on this system?
The system includes 12Gb/s SAS and Serial ATA/600 controllers for storage connectivity. These interfaces offer exceptional speed and reliability for enterprise-grade storage solutions, supporting both SAS and SATA drives for flexible storage configurations.
What is the form factor and rack compatibility?
This is a 1U rack-mountable barebone system with dimensions of 1.71" height, 17.24" width, and 32.09" depth. It's designed for standard 19-inch server racks and features a compact form factor that maximizes computing density in data center environments.
What power supply configuration does this system have?
The system includes dual 1.60 kW power supplies that support 120V and 230V AC input voltages. This redundant power configuration ensures continuous operation even if one power supply fails, providing reliability for mission-critical server deployments.
What expansion capabilities does this barebone system offer?
The system provides 4 total expansion bays for storage drives and 2 PCI Express x16 slots for additional expansion cards. It also includes 4 USB 3.2 Gen 1 ports for peripheral connections and Gigabit Ethernet for network connectivity, offering comprehensive expansion options for various server configurations.
