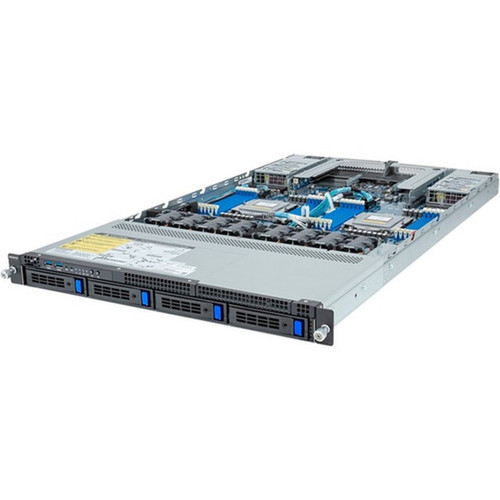

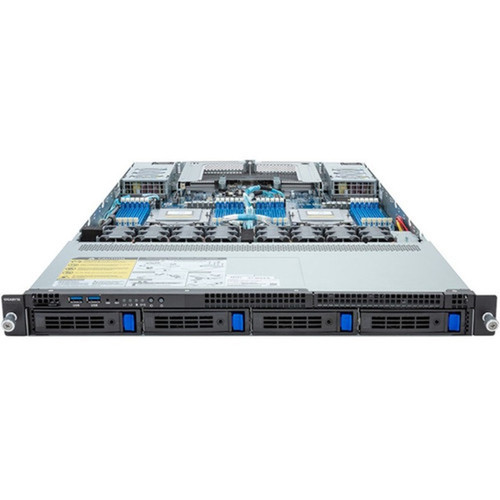

Gigabyte R183-Z90-AAD2 Barebone System - 1U Rack-mountable - Dual Socket SP5 LGA-6096256GB DDR5-4800 - 12Gb/s SAS - 2 x 1. 6kW PSUs
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system features a comprehensive technical foundation designed for scalability and performance. The AMD chipset supports dual EPYC processors, enabling substantial parallel processing capabilities. Memory architecture utilizes DDR5 SDRAM technology at DDR5-4800/PC5-38400 speeds, maximizing bandwidth for data-intensive applications.
Storage connectivity includes 12Gb/s SAS and Serial ATA/600 interfaces, though RAID functionality is not supported. The AST2600 graphics controller handles basic display output, while Gigabit Ethernet provides network connectivity. Expansion capabilities include 2 PCI Express x16 slots and 4 total expansion bays for additional cards or drives.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The R183-Z90-AAD2 delivers several distinct advantages for IT infrastructure deployment. Its 1U rack-mountable form factor maximizes data center space efficiency while maintaining full server capabilities. Dual processor support enables significant compute density, making it suitable for virtualization, database hosting, and computational workloads.
High-Density Memory
With 24 DDR5 memory slots supporting up to 256 GB, this system accommodates memory-intensive applications without compromising performance.
- DDR5-4800 speed
- Large capacity headroom
- Efficient data movement
Enterprise Storage Ready
The 12Gb/s SAS controller provides fast, reliable storage connectivity for enterprise environments requiring high-performance data access.
- 12Gb/s interface speed
- SAS compatibility
- Serial ATA/600 support
Redundant Power Design
Dual 1.6 kW power supplies with 120V/230V input voltage support ensure power continuity and reliability in critical deployments.
- Dual PSU configuration
- Wide voltage range
- 1.6 kW capacity each
Deployment / Use Cases
This barebone system is optimized for rack-mounted server deployments where space efficiency and compute density are priorities. The 1U form factor fits standard server racks while delivering dual-processor capabilities, making it suitable for data center consolidation projects.
Typical use cases include virtualization hosts running multiple virtual machines, database servers handling transactional workloads, and computational nodes for scientific or engineering applications. The system's storage connectivity supports both SAS and SATA drives, accommodating various storage tiering strategies. Network infrastructure applications benefit from the Gigabit Ethernet connectivity and expansion slot availability for additional network interface cards.
Virtualization Host
Dual EPYC processor support and substantial memory capacity make this system effective for hosting virtualized environments, maximizing hardware utilization.
Database Server
The combination of fast DDR5 memory and 12Gb/s storage connectivity provides the performance needed for database applications requiring rapid data access.
Physical Profile
The R183-Z90-AAD2 utilizes a standard 1U rack-mountable enclosure with dimensions of 1.71" (43.50 mm) height, 17.24" (438 mm) width, and 32.09" (815 mm) depth. This compact footprint allows efficient use of rack space while accommodating dual processors, extensive memory, and redundant power supplies. The rack-mountable design facilitates organized server room layouts with improved accessibility for maintenance and cable management.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.24" (438 mm), 32.09" (815 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.24" (438 mm)
- Depth
- 32.09" (815 mm)
- Height
- 1U
Highlights
- Supports dual AMD EPYC processors via Socket SP5 LGA-6096
- Accommodates up to 256 GB of DDR5-4800 memory across 24 slots
- 1U rack-mountable form factor for space-efficient data center deployment
- 12Gb/s SAS controller for enterprise-grade storage connectivity
- Dual 1.6 kW power supplies with 120V/230V input voltage support
- Gigabit Ethernet for network connectivity
- 4 USB 3.2 Gen 1 ports for peripheral connections
- 2 PCI Express x16 expansion slots for additional cards
- AMD chipset with 64-bit processing support
- Compact dimensions: 1.71" H × 17.24" W × 32.09" D
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | R183-Z90-AAD2 |
| Brand Name | GIGABYTE |
| Product Model | R183-Z90 (rev. AAD2) |
| Product Name | R183-Z90 (rev. AAD2) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket SP5 LGA-6096 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 24 |
| Controllers | |
| Controller Type | 12Gb/s SAS,Serial ATA/600 |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.60 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.71" (43.50 mm) |
| Width | 17.24" (438 mm) |
| Depth | 32.09" (815 mm) |
FAQ
What processors are compatible with this barebone system?
The Gigabyte R183-Z90-AAD2 supports AMD EPYC processors using the Socket SP5 LGA-6096 interface. The system accommodates dual processors, enabling substantial parallel processing capabilities for demanding server workloads. This processor support provides 64-bit processing power suitable for virtualization, database applications, and computational tasks.
How much memory can this system support?
This barebone system supports up to 256 GB of DDR5 SDRAM memory using the DDR5-4800/PC5-38400 standard. It includes 24 memory slots, allowing flexible memory configurations. The DDR5 technology provides efficient data movement across system components, ensuring responsive performance for memory-intensive applications.
What storage interfaces are available?
The system features a 12Gb/s SAS controller along with Serial ATA/600 support. The 12Gb/s SAS interface offers exceptional speed and reliability for enterprise-grade storage deployments. While RAID functionality is not supported, these interfaces accommodate both SAS and SATA drives for various storage requirements.
What expansion capabilities does this system offer?
The R183-Z90-AAD2 provides 2 PCI Express x16 expansion slots and 4 total expansion bays. The PCIe x16 slots accommodate additional cards such as network interfaces, storage controllers, or accelerators. This expansion flexibility allows customization for specific workload requirements while maintaining the 1U form factor.
What power supply configuration is included?
The system includes dual 1.60 kW power supplies that support both 120 V AC and 230 V AC input voltages. This redundant power design ensures continuous operation in case of a single power supply failure. The 1.6 kW capacity per power supply provides ample power for dual processors, memory, storage, and expansion cards.
What are the physical dimensions and rack compatibility?
This barebone system measures 1.71" (43.50 mm) in height, 17.24" (438 mm) in width, and 32.09" (815 mm) in depth. It uses a standard 1U rack-mountable form factor, making it compatible with typical server racks. The compact design maximizes data center space efficiency while providing full server capabilities.
