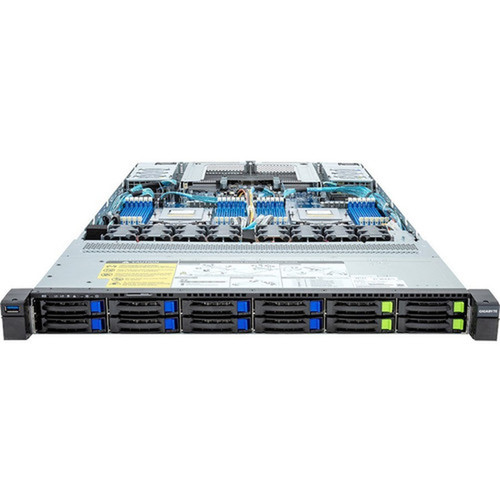

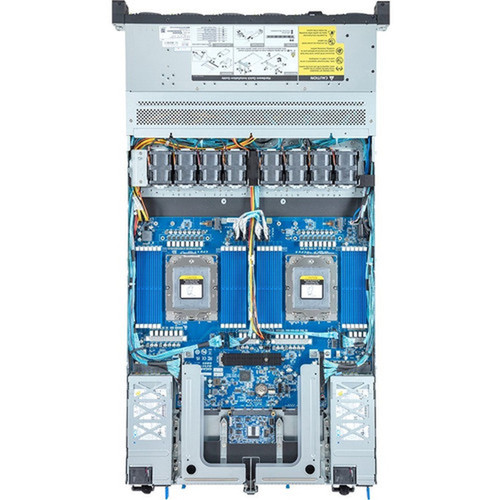

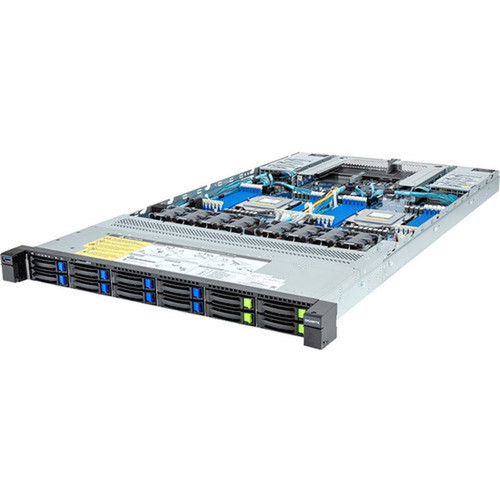

Gigabyte R183-Z92-AAD2 1U Rackmount Barebone System - Dual Socket SP5 LGA-6096256GB DDR5 Ready - 12 Memory Slots - 2x Power Supplies
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system features AMD chipset architecture with 64-bit processing support and an AST2600 graphics controller with DDR4 SDRAM graphics memory. The Serial ATA/600 controller manages storage connectivity without hardware RAID support, while Gigabit Ethernet provides standard network connectivity for data center environments.
The platform accepts 120V AC or 230V AC input voltage, accommodating different power infrastructure requirements. Three USB 3.2 Gen 1 ports offer peripheral connectivity for management and configuration tasks.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The R183-Z92-AAD2 delivers exceptional density and expansion capabilities in a single rack unit, making it ideal for environments where physical space is at a premium. The dual processor support enables substantial compute power for virtualization, database, and high-performance computing applications.
Memory Scalability
Twelve DDR5 memory slots support up to 256GB of high-bandwidth RAM, providing ample capacity for memory-intensive workloads and future expansion.
Expansion Flexibility
Four PCIe x16 slots and twelve expansion bays allow for extensive customization with storage drives, network adapters, GPUs, or other specialized hardware.
Power Redundancy
Dual 1.60 kW power supplies with hot-swap capability ensure continuous operation and minimize downtime in critical server deployments.
Deployment / Use Cases
This barebone system is designed for data center and enterprise server environments where rack space optimization and compute density are priorities. The 1U form factor maximizes server count per rack while maintaining substantial expansion capabilities through multiple PCIe slots and drive bays.
Typical deployments include virtualization hosts, database servers, web hosting platforms, and high-performance computing clusters. The dual processor architecture supports workloads that benefit from parallel processing, while the extensive memory capacity accommodates large datasets and in-memory applications.
Virtualization Host
Support for dual EPYC processors and substantial memory makes this platform suitable for hosting multiple virtual machines in hypervisor environments.
Database Server
The combination of high memory capacity and multiple expansion slots supports database applications requiring fast data access and storage flexibility.
Physical Profile
The R183-Z92-AAD2 occupies a single rack unit (1U) with dimensions of 1.71" (43.50 mm) height, 17.24" (438 mm) width, and 32.09" (815 mm) depth. This compact footprint allows efficient use of rack space in data center cabinets while providing full server capabilities. The rack-mountable design includes integrated rail kit support for standard 19-inch rack installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.24" (438 mm), 32.09" (815 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.24" (438 mm)
- Depth
- 32.09" (815 mm)
- Height
- 1U
What's in the Box
The package includes all essential components for server deployment, requiring only the addition of processors, memory, storage, and expansion cards.
Highlights
- 1U rackmount barebone system for space-efficient server deployments
- Supports dual AMD EPYC processors via Socket SP5 LGA-6096
- 12 DDR5 memory slots supporting up to 256GB total capacity
- 4 PCI Express x16 slots for extensive expansion capabilities
- 12 total expansion bays for storage and peripheral devices
- Dual 1.60 kW power supplies with redundancy support
- Gigabit Ethernet connectivity for network integration
- 3 USB 3.2 Gen 1 ports for peripheral connections
- Includes CPU heatsink and rail kit for immediate deployment
- 3-year limited warranty with environmental compliance certifications
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | R183-Z92-AAD2 |
| Brand Name | GIGABYTE |
| Product Model | R183-Z92 |
| Product Name | R183-Z92 (rev. AAD2) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket SP5 LGA-6096 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 12 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Graphics Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Total Number of Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 4 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.60 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.71" (43.50 mm) |
| Width | 17.24" (438 mm) |
| Depth | 32.09" (815 mm) |
| Miscellaneous | |
| Package Contents | R183-Z92 (rev. AAD2) Barebone System 1 x CPU Heatsink 1 x Rail Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with this barebone system?
The R183-Z92-AAD2 supports AMD EPYC processors through dual Socket SP5 LGA-6096 interfaces. This socket type accommodates current-generation EPYC server processors with 64-bit architecture, providing enterprise-grade compute performance for demanding workloads.
How much memory can this system support?
This barebone system supports up to 256GB of DDR5 SDRAM across 12 memory slots. The memory operates at DDR5-4800/PC5-38400 speeds, delivering high bandwidth for memory-intensive applications such as virtualization, databases, and scientific computing.
What expansion capabilities does this 1U chassis provide?
The chassis includes 12 total expansion bays for storage devices and 4 PCI Express x16 slots for add-in cards. This expansion flexibility allows configuration with multiple storage drives, network adapters, GPUs, or specialized accelerator cards to meet specific workload requirements.
What power supply configuration does this system use?
The system includes two 1.60 kW power supplies that support 120V AC or 230V AC input voltage. This dual power supply configuration provides redundancy for continuous operation in critical server environments, with hot-swap capability for maintenance without system downtime.
What networking connectivity is included?
The barebone system features Gigabit Ethernet connectivity, providing standard network throughput for data center environments. This supports large file transfers, backups, and network-intensive workflows typical in server deployments.
What is included in the package for installation?
The package includes the R183-Z92 (rev. AAD2) barebone system chassis, one CPU heatsink for processor cooling, and a rail kit for standard 19-inch rack mounting. These components provide everything needed for physical installation before adding processors, memory, storage, and expansion cards.
