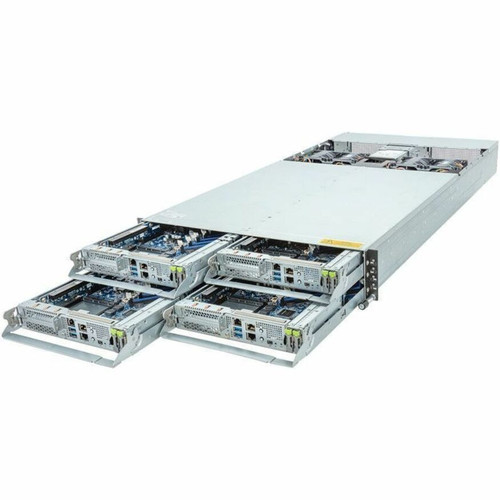

Gigabyte H253-Z10-AAP1 Server Barebone System - 2U Rackmount - AMD EPYC SP5 Socket - 24x DDR5 Slots - 8x PCIe x16 - 12x M. 2 - Dual 3kW PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This server barebone leverages the AMD EPYC processor architecture with a single Socket SP5 LGA-6096, supporting 64-bit processing for advanced computational tasks. The integrated AMD chipset coordinates system components, while an ASPEED graphics controller provides base-level display output via the included Mini DisplayPort.
Connectivity is handled by three Gigabit Ethernet ports for network aggregation and two USB 3.2 Gen 1 ports for peripheral attachments. The system accepts 120V or 230V AC input, with dual hot-swappable power supplies rated at 3 kW each, delivering high-efficiency power distribution. The 2U form factor optimizes rack space while accommodating extensive expansion.
This section brings together practical product details such as Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The rack-mountable design streamlines data center deployments, improving cable management and thermal efficiency. The inclusion of a Mini DisplayPort with a D-Sub adapter cable facilitates local console access during setup and maintenance.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Massive Expansion Capacity, High-Density Memory Support.
Massive Expansion Capacity
With eight PCIe x16 slots and twelve M.2 NVMe interfaces, this barebone supports simultaneous deployment of multiple GPUs, high-speed storage arrays, and specialized adapters, reducing the need for external expansion chassis.
High-Density Memory Support
Twenty-four DDR5 memory slots enable large memory configurations, essential for virtualization, in-memory databases, and scientific computing applications that benefit from increased bandwidth and capacity.
Deployment / Use Cases
This barebone system serves as a core building block for custom server solutions in cloud infrastructure, media rendering farms, and financial analytics platforms. Its balance of compute, memory, and I/O expansion makes it adaptable to evolving workload demands.
This section brings together practical product details such as Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
High-Performance Computing (HPC)
Ideal for research institutions and engineering firms requiring substantial parallel processing power, supported by multiple PCIe slots for GPU clusters and NVMe storage for fast data access.
Virtualization Host
Suited for consolidating virtual machines in enterprise environments, leveraging high memory capacity and numerous expansion slots for network and storage virtualization appliances.
Physical Profile
The server occupies a standard 2U rack space with dimensions of 3.42 inches in height, 17.60 inches in width, and 35.51 inches in depth. Its steel construction supports a weight of approximately 64.82 pounds, ensuring durability in rack environments. The design includes integrated mounting points for the included L-shape rail kit, facilitating secure installation in data center cabinets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2U, 17.60" (447 mm), 35.51" (902 mm), 64.82 lb (29400 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.60" (447 mm)
- Depth
- 35.51" (902 mm)
- Height
- 2U
- Weight
- 64.82 lb (29400 g)
What's in the Box
The package includes all necessary components for initial setup and integration into a rack infrastructure.
Highlights
- Supports single AMD EPYC processor with Socket SP5 LGA-6096 for enterprise-grade compute
- 24 DDR5 SDRAM memory slots enable high-capacity configurations up to several terabytes
- Eight PCIe x16 slots accommodate multiple GPUs, network cards, or storage controllers
- Twelve M.2 NVMe interfaces provide high-speed storage expansion options
- Dual 3 kW hot-swappable power supplies ensure redundant power delivery
- 2U rack-mountable form factor optimizes data center space and cooling efficiency
- Three Gigabit Ethernet ports support network teaming and failover configurations
- Includes L-shape rail kit and Mini-DP to D-Sub cable for straightforward installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | H253-Z10-AAP1 |
| Brand Name | GIGABYTE |
| Product Series | H |
| Product Model | H253-Z10-AAP1 |
| Product Name | H253-Z10-AAP1 Server Barebone System |
| Packaged Quantity | 1 |
| Product Type | Server Barebone System |
| Processor | |
| Number of Nodes | 4 |
| Number of Processors Supported | 1 |
| Processor Socket | Socket SP5 LGA-6096 |
| Processor Supported | EPYC |
| Processor Manufacturer | AMD |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 24 |
| Controllers | |
| Controller Type | NVMe |
| Display & Graphics | |
| Graphics Controller Manufacturer | ASPEED |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 8 |
| Number of PCI Express x16 Slots | 8 |
| Number of M.2 Interfaces | 12 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Mini DisplayPort | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 3 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.42" (86.80 mm) |
| Width | 17.60" (447 mm) |
| Depth | 35.51" (902 mm) |
| Weight (Approximate) | 64.82 lb (29400 g) |
| Miscellaneous | |
| Package Contents | H253-Z10-AAP1 Server Barebone System 4 x CPU Heatsinks 1 x Mini-DP to D-Sub Cable 1 x L-shape Rail Kit |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processor socket does this server barebone support?
The H253-Z10-AAP1 supports a single AMD EPYC processor using the Socket SP5 LGA-6096. This socket is designed for current-generation EPYC CPUs, providing high core counts and memory channels suitable for data center and HPC workloads.
How many memory slots are available, and what type of memory is supported?
This barebone system includes 24 memory slots that support DDR5 SDRAM modules. DDR5 technology offers improved bandwidth and power efficiency over previous generations, allowing for larger memory configurations and better performance in memory-intensive applications.
What expansion capabilities does this server offer?
The system provides extensive expansion with eight PCI Express x16 slots and twelve M.2 NVMe interfaces. These slots allow for the installation of multiple GPUs, network adapters, NVMe storage drives, and other PCIe-based peripherals, making it highly flexible for custom configurations.
What power supplies are included, and are they redundant?
The barebone comes with two 3 kW power supplies installed. These are hot-swappable and redundant, meaning if one power supply fails, the other can continue to power the system without interruption, enhancing reliability in critical server environments.
What networking features are built into this server?
The system includes three Gigabit Ethernet RJ-45 ports, supporting standard Gigabit Ethernet for network connectivity. This allows for link aggregation, failover, or separate network segments, which is useful for virtualization, storage networking, or management traffic isolation.
What is included in the package for installation?
The package contains the H253-Z10-AAP1 server barebone system, four CPU heatsinks for processor cooling, one Mini DisplayPort to D-Sub cable for video output, and one L-shape rail kit for mounting the server into a standard 19-inch rack. These items ensure you have the essential components for setup and integration.
What processor or platform detail is listed?
This product uses the 1 processor for everyday performance and multitasking.
