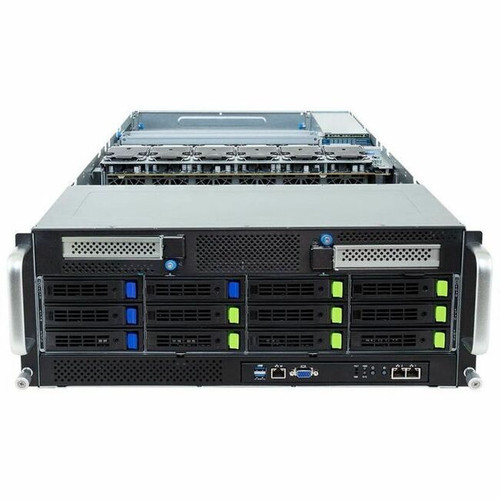

Gigabyte G494-SB0-AAP1 Server Barebone System - 4U Rack-Mountable - Dual Socket LGA-4710 - 32x DDR5 Slots - 12 x 3. 5" Bays - 9x PCIe x16 - 10GbE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the G494-SB0-AAP1 is a dual-socket LGA-4710 platform compatible with Intel Xeon 6 processors, enabling 64-bit processing and optimized compute density through integrated P-core and E-core architectures. The Intel chipset coordinates communication between 32 DDR5 memory modules and the storage subsystem, which includes NVMe controllers for low-latency data access and Serial ATA support for high-capacity drives.
Network performance is driven by 10 Gigabit Ethernet and Gigabit Ethernet interfaces across three RJ-45 ports, ensuring rapid data transfer for clustered and high-speed environments. The system incorporates an ASPEED AST2600 graphics controller for basic display output via a VGA port, alongside two USB 3.2 Gen 1 ports for peripheral connectivity without requiring system shutdown.
This section brings together practical product details such as Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The G494-SB0-AAP1 combines extensive expansion potential with enterprise-grade reliability, making it an ideal platform for building custom servers tailored to specific workload requirements. Its design prioritizes scalability, redundancy, and maintenance efficiency in rack-mounted environments.
High-Density Storage
Twelve 3.5" drive bays support large-capacity HDDs or SSDs, with NVMe and SATA controllers enabling mixed storage tiers for performance and capacity optimization.
- 12 dedicated bays
- NVMe and SATA support
- Scalable storage configurations
Robust Expansion
Nine PCIe x16 slots provide ample room for adding GPUs, network adapters, or storage controllers, allowing the system to evolve with changing computational and I/O demands.
- 9 full-length slots
- GPU and NIC support
- Future-proof expansion
Enterprise Power Design
Four hot-swappable power supplies with 3 kW maximum capacity and dual voltage input (120V/230V) ensure continuous operation and redundancy for critical server applications.
- Quad redundant PSUs
- 3 kW capacity
- Dual voltage input
Deployment / Use Cases
The Gigabyte G494-SB0-AAP1 server barebone is suited for environments requiring customizable, high-performance server infrastructure with strong expansion capabilities. Its balance of processor support, memory density, and I/O flexibility makes it adaptable to a range of enterprise and data center roles.
In virtualization clusters, the dual Xeon 6 sockets and 32 memory slots enable hosting numerous virtual machines with dedicated resources, while the 10GbE networking ensures low-latency communication between nodes. For GPU-accelerated workloads such as AI training or rendering, the nine PCIe x16 slots accommodate multiple high-performance graphics cards, supported by dedicated GPU power cables included in the package.
This section brings together practical product details such as Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
Housed in a 4U rack-mountable chassis, the G494-SB0-AAP1 measures 6.93 inches in height (176 mm), 17.64 inches in width (448 mm), and 34.65 inches in depth (880 mm), fitting standard 19-inch server racks. The form factor includes an L-shape rail kit for secure mounting and easy slide-out access, facilitating maintenance and component upgrades. The design complies with WEEE and RoHS environmental standards, reflecting Gigabyte's commitment to sustainable manufacturing practices.
- Width
- 17.64" (448 mm)
- Depth
- 34.65" (880 mm)
- Height
- 4U
What's in the Box
The G494-SB0-AAP1 server barebone system ships with essential components for assembly and installation.
Highlights
- Dual Socket LGA-4710 supports two Intel Xeon 6 processors for high-core-count compute density.
- 32 DDR5 SDRAM memory slots enable large memory configurations and efficient data movement.
- 12 dedicated 3.5" drive bays with NVMe and SATA controllers for flexible storage setups.
- 9 PCI Express x16 expansion slots accommodate GPUs, networking cards, or storage adapters.
- 10 Gigabit Ethernet and Gigabit Ethernet networking ensure high-speed data transfer.
- 4 hot-swappable power supplies with 3 kW maximum capacity provide redundancy and reliability.
- Red Hat Enterprise Linux operating system support for enterprise-grade software environments.
- 4U rack-mountable chassis with included rail kit for easy installation and maintenance.
- Complies with WEEE and RoHS environmental standards.
- Backed by a 3-year limited warranty.
Specifications
| Specifications | |
|---|---|
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | G494-SB0-AAP1 |
| Brand Name | GIGABYTE |
| Product Series | G |
| Product Model | G494-SB0-AAP1 |
| Product Name | G494-SB0-AAP1 Server Barebone System |
| Packaged Quantity | 1 |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4710 |
| Processor Supported | Xeon 6 |
| Processor Manufacturer | Intel |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 32 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| Display & Graphics | |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Number of 3.5" Bays | 12 |
| Total Number of Expansion Slots | 9 |
| Number of PCI Express x16 Slots | 9 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 4 |
| Maximum Power Supply Wattage | 3 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.93" (176 mm) |
| Width | 17.64" (448 mm) |
| Depth | 34.65" (880 mm) |
| Miscellaneous | |
| Package Contents | G494-SB0-AAP1 Server Barebone System 2 x CPU fansinks 8 x GPU power cables (12VHPWR, 150mm) 4 x Carriers 1 x L-shape Rail kit |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with the G494-SB0-AAP1 server barebone?
The system supports dual Intel Xeon 6 processors using the Socket LGA-4710 interface. This platform enables 64-bit processing and leverages Intel's hybrid core architecture with P-cores and E-cores for optimized compute density and power efficiency in diverse server workloads.
How much memory can this server barebone support?
The G494-SB0-AAP1 features 32 DDR5 SDRAM memory slots, allowing for substantial memory configurations. DDR5 technology provides higher bandwidth and improved efficiency compared to previous generations, ensuring smooth and responsive performance for memory-intensive applications like virtualization, databases, and high-performance computing.
What storage options are available with this system?
This barebone includes 12 dedicated 3.5" drive bays, all compatible with both NVMe and Serial ATA controllers. This flexibility lets you mix NVMe SSDs for high-speed storage and SATA HDDs or SSDs for capacity, supporting tiered storage strategies and large-scale data repositories.
Can I add GPUs to this server barebone?
Yes, the system has nine PCI Express x16 expansion slots, making it well-suited for GPU acceleration. The package includes eight GPU power cables (12VHPWR, 150mm) to support high-power graphics cards, enabling deployments in AI training, rendering, or scientific computing where GPU resources are critical.
What networking capabilities does the G494-SB0-AAP1 offer?
It provides 10 Gigabit Ethernet and Gigabit Ethernet connectivity across three RJ-45 ports. The 10GbE technology optimizes network performance for enterprise and high-speed environments, ensuring rapid data transfer and reduced latency in clustered or networked storage setups.
What operating systems are supported?
The server barebone supports Red Hat Enterprise Linux, offering a dependable, user-friendly interface for enterprise applications. This OS compatibility ensures stability, security, and productivity for server deployments requiring a robust Linux environment.
What processor or platform detail is listed?
This product uses the Socket LGA-4710 processor for everyday performance and multitasking.
